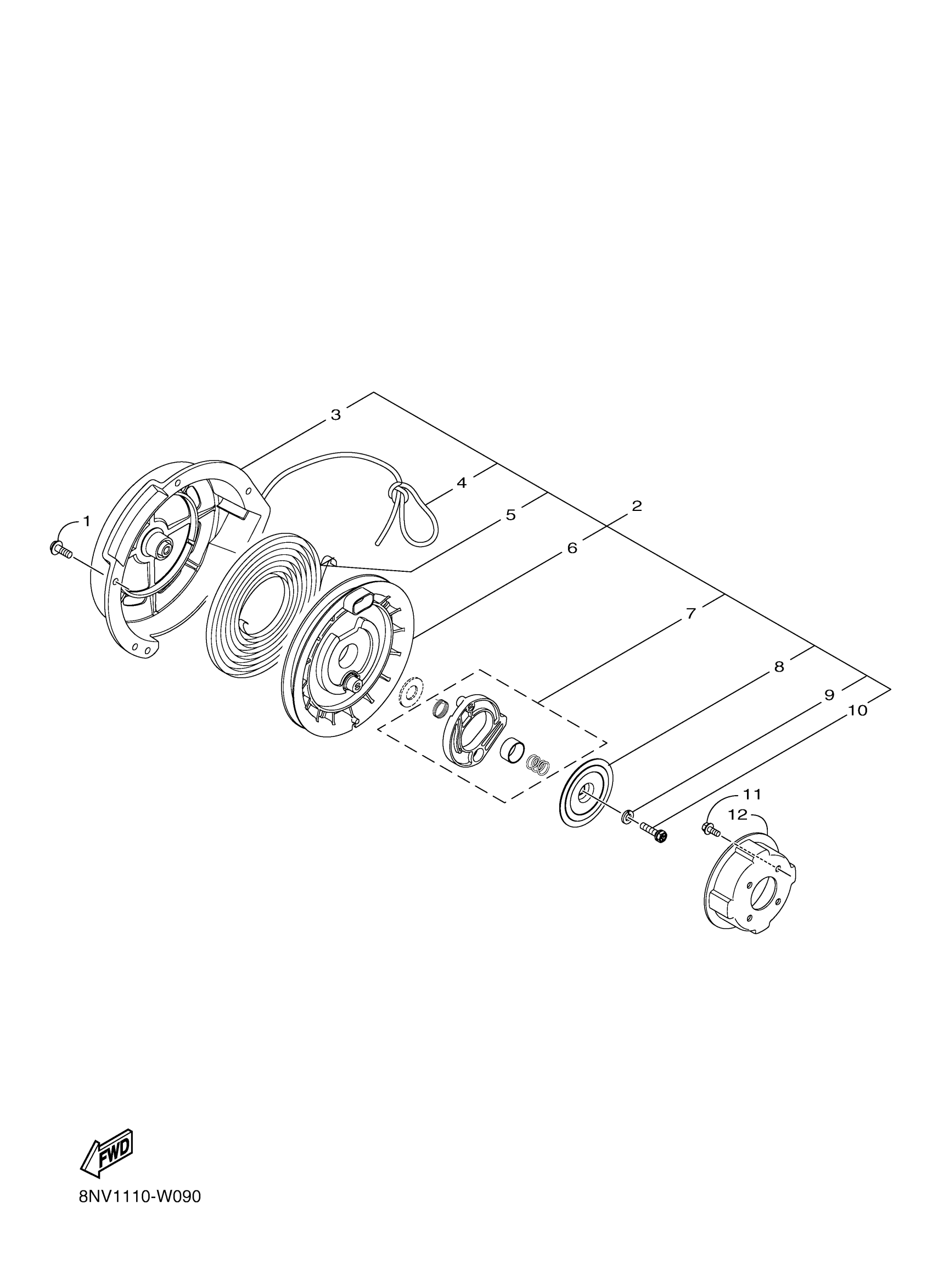

Yamaha MM8N54PL (MOUNTAIN MAX 800 154 SL) 8NY3 2023 STARTER Diagram

#

Description
Price

1

BOLT, FLANGE

8ND-RA179-00-00

$1.67

2

STARTER ASSY

8NV-E5710-00-00

$248.52

3

CASE, STARTER

8NV-E5711-00-00

$48.68

4

WIRE, STARTER

8ND-E5751-00-00

Unavailable

5

SPRING, STARTER

8ND-E5713-00-00

Unavailable

6

DRUM, SHEAVE

8NV-E5714-00-00

$60.23

7

PAWL, DRIVE

8NV-E5741-00-00

$25.71

8

PLATE, FRICTION 1

8ND-E6320-00-00

Unavailable

9

WASHER, SPRING

8ND-RA402-00-00

$0.68

10

BOLT, FLG. M8X1.25

8JP-RA186-00-00

$0.48

11

BOLT, FLANGE 1

8KC-RA1B5-00-00

$1.97

12

PULLEY, STARTER

8NV-E5723-00-00

$52.45
