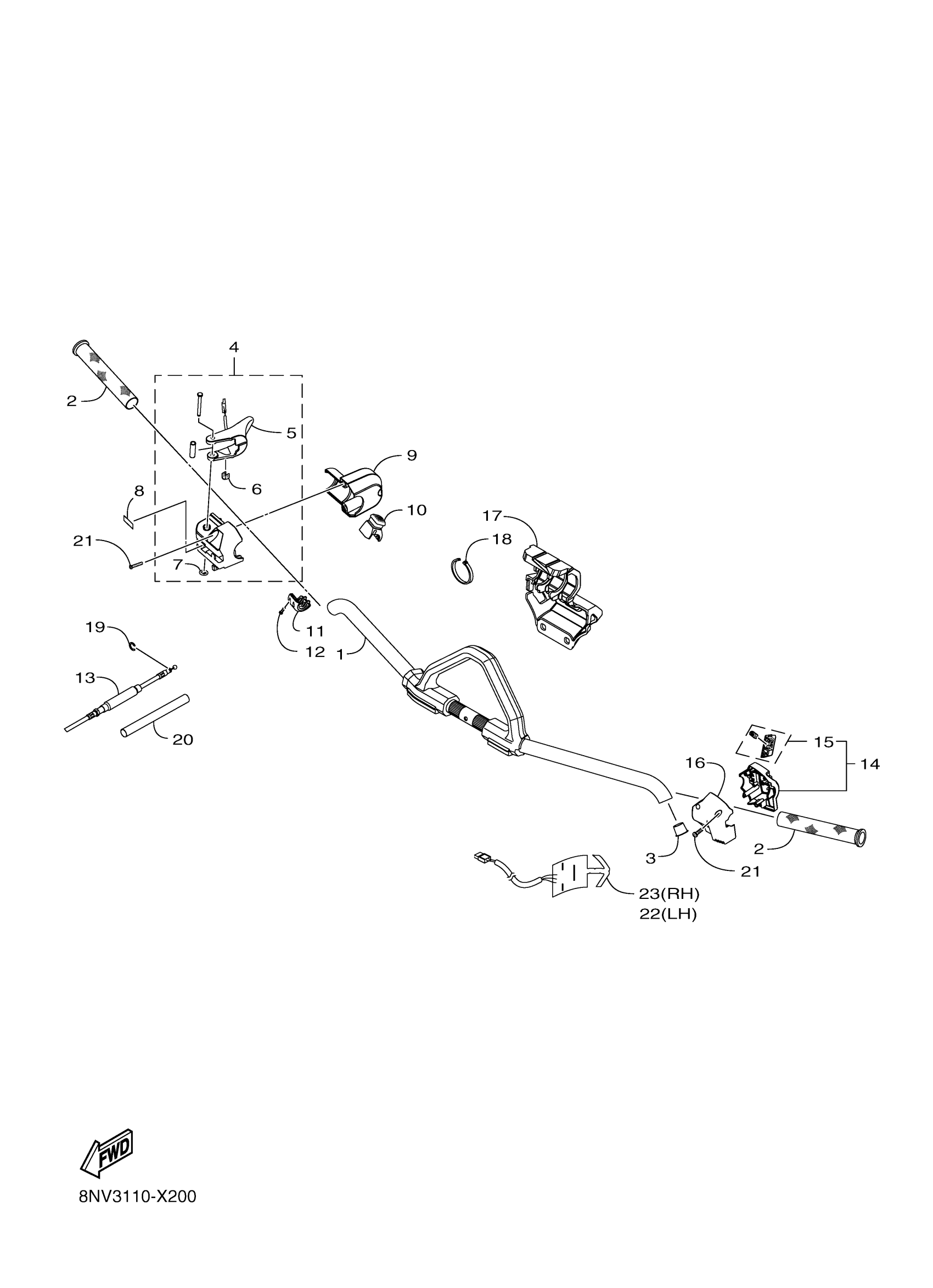

Yamaha MM8N54NS (MOUNTAIN MAX 800 LE 154 SL) 8NY1 2022 STEERING Diagram
#
Description
Price
1
HANDLEBAR
8JR-F6111-20-00
Unavailable
2
GRIP
8JR-F6241-00-00
$18.99
3
NUT
8JR-F3856-10-00
Unavailable
4
LEVER HOLDER ASSY
8ND-H2720-10-00
$303.99
5
LEVER HOLDER ASSY
8ND-H2720-10-00
$303.99
6
CLIP, 1
8JP-RAC10-10-00
Unavailable
7
NUT, 0.125
8JP-RA346-00-00
$1.64
8
COVER
8NV-H252U-00-00
Unavailable
9
LEVER HOLDER ASSY
8MY-H2710-00-00
$9.49
10
STOP SWITCH
8ND-H6284-00-00
$66.99
11
CLAMP
8MY-H2544-00-00
$5.60
12
SCREW
8MY-RA200-00-00
$0.64
13
CABLE, THROTTLE 1
8ND-F6311-00-00
Unavailable
14
SWITCH, HANDLE 4
8MS-H3972-10-00
$506.99
15
BUTTON
8MS-H296K-00-00
Unavailable
16
SWITCH, HANDLE 3
8MY-H3973-00-00
Unavailable
17
PROTECTOR, HANDLEB
8MF-F6124-00-00
Unavailable
18
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
18
CLAMP, 1 (4-INCH)
8JP-RAB03-00-00
Unavailable
18
CLAMP, 2 (11.5 INCH)
8JP-RAB04-00-00
Unavailable
19
RING RETAINING
8JM-RAH02-00-00
Unavailable
20
PROTECTOR
8MY-HA7A0-00-00
Unavailable
20
PROTECTOR 1
8MY-HA7A1-00-00
Unavailable
20
PROTECTOR 2 (12 IN
8NV-HA7A2-00-00
Unavailable
21
SCREW, 8-18X0.875
8ML-RA286-00-00
Unavailable
22
GRIP,WARMER
8MY-F626A-10-00
Unavailable
23
GRIP,WARMER
8MY-F626A-00-00
Unavailable
