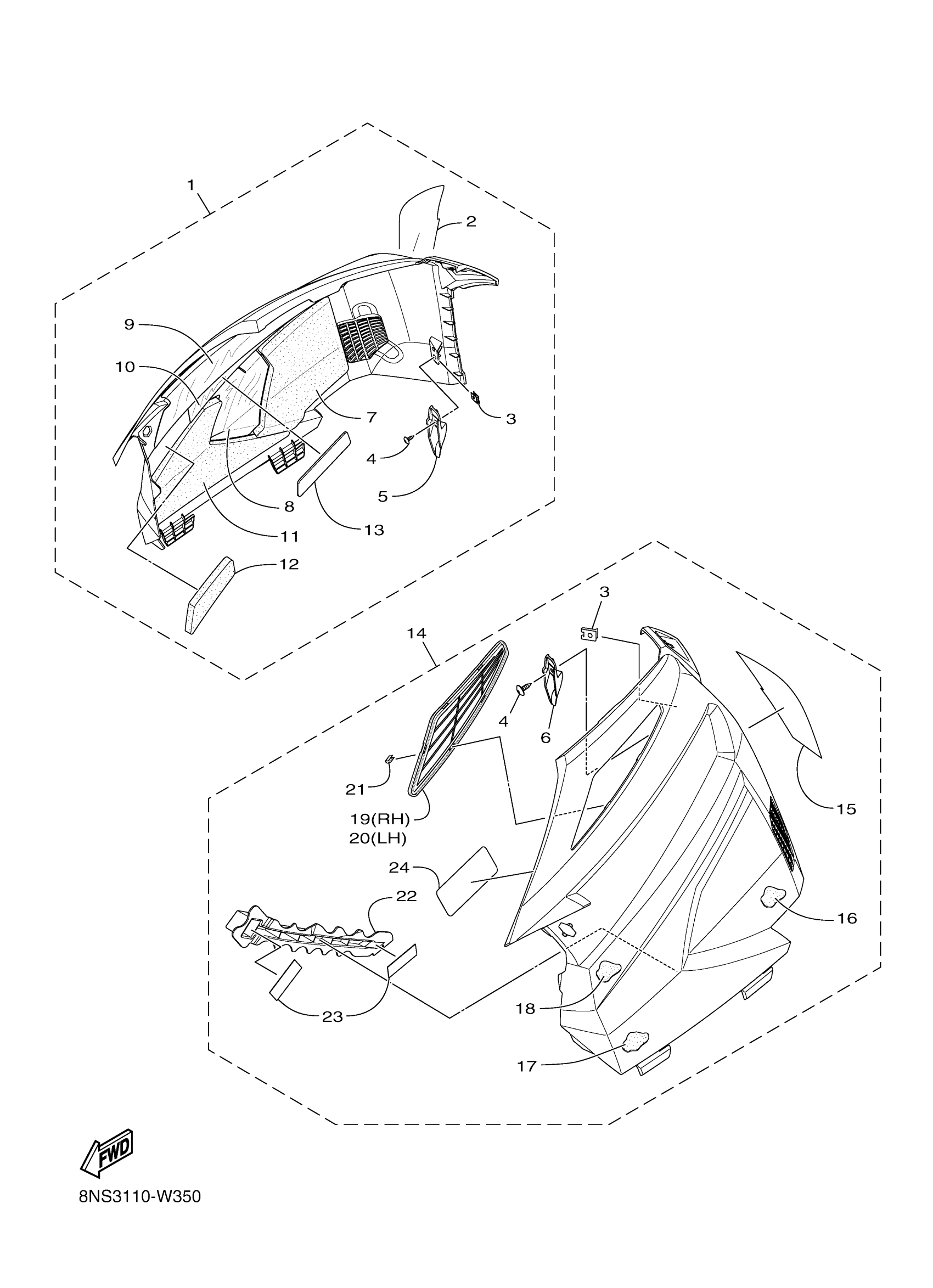

Yamaha MM8N54NS (MOUNTAIN MAX 800 LE 154 SL) 8NY1 2022 SIDE PANEL Diagram

#

Description
Price

1

SIDE PANEL COMP.(R

8NS-K810G-20-00

$217.99

2

LABEL, WARNING 1

8NT-K7761-S0-00

$15.99

3

NUT, CLIP 10

8JP-RA352-00-00

$1.64

4

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

5

HOOK 2

8KC-K715T-00-00

$3.18

6

HOOK 1

8KC-K715S-00-00

Unavailable

7

DAMPER, NOISE 11

8NS-K7271-00-00

Unavailable

8

PROTECTOR 2

8NS-K7552-00-00

Unavailable

9

PROTECTOR 3

8NS-K7553-00-00

Unavailable

10

PROTECTOR 5

8NS-K7555-00-00

Unavailable

11

DAMPER, NOISE 13

8NS-K7273-00-00

Unavailable

12

DAMPER, NOISE 14

8NS-K7274-00-00

Unavailable

13

PAD 1

8NS-K7151-00-00

Unavailable

14

SIDE PANEL COMP.(L

8NS-K810F-20-00

Unavailable

15

. LABEL, WARNING 1

8NT-K7761-70-00

Unavailable

16

DAMPER, NOISE 16

8NS-K7276-00-00

Unavailable

17

DAMPER, NOISE 17

8NS-K7277-00-00

Unavailable

18

DAMPER, NOISE 18

8NS-K7278-00-00

Unavailable

19

VENT, FRONT 2

8NS-K715J-00-00

Unavailable

20

VENT, FRONT 1

8NS-K715H-00-00

Unavailable

21

NUT, SPRING

8NV-RA346-00-00

Unavailable

22

REINFORCEMENT 1

8NS-K8121-00-00

Unavailable

23

TAPE 1

8NS-K717E-00-00

Unavailable

24

PROTECTOR 4

8NS-K7554-00-00

Unavailable
