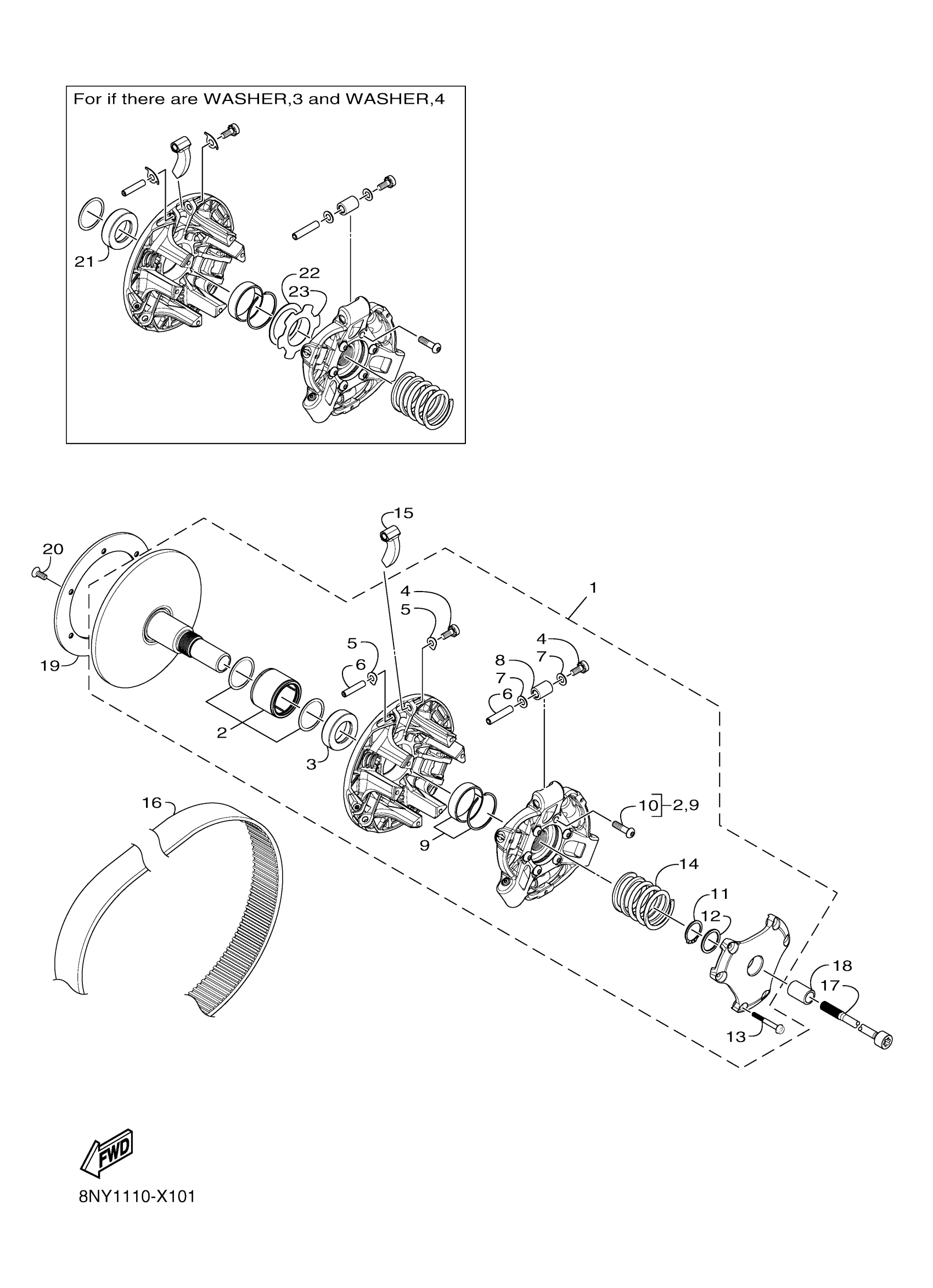

Yamaha MM8N54NS (MOUNTAIN MAX 800 LE 154 SL) 8NY1 2022 PRIMARY SHEAVE Diagram

#

Description
Price

1

PRIMARY SHEAVE ASS

8NR-E7601-00-00

Unavailable

2

BEARING

8NR-E7678-00-00

Unavailable

3

COLLAR

8NR-E7645-10-00

Unavailable

4

BOLT

8NR-RA123-10-00

$2.28

5

WASHER, THRUST

8NR-E7529-10-00

$0.90

5

WASHER, THRUST

8NR-E7529-20-00

Unavailable

6

PIN, WEIGHT

8NR-E7628-00-00

$9.49

7

WASHER

8NR-RA442-00-00

Unavailable

8

ROLLER, COMP

8NR-E7624-10-00

Unavailable

9

BUSH

8NR-E7625-00-00

Unavailable

10

.. SCREW

8NR-RA208-00-00

Unavailable

11

CLIP, 1

8NR-RAC10-00-00

Unavailable

12

COLLAR, DISTANCE 1

8NR-E7685-00-00

$0.70

12

COLLAR, DISTANCE 1

8NR-E7685-10-00

$2.07

13

SCREW

8NR-RA212-00-00

$2.22

14

SPRING, PRIMARY

8NR-E7643-00-00

Unavailable

15

WEIGHT

8NR-E7632-00-00

Unavailable

16

V-BELT

8NV-E7641-00-00

Unavailable

17

BOLT

8ND-E7647-00-00

Unavailable

18

COLLAR, 18

8NR-RA734-00-00

Unavailable

19

PLATE 1

8NY-E7665-00-00

Unavailable

20

SCREW

8NS-RA208-00-00

Unavailable

21

COLLAR

8NR-E7645-00-00

Unavailable

22

WASHER, 3

8NR-RA434-00-00

Unavailable

23

WASHER, 4

8NR-RA435-00-00

Unavailable
