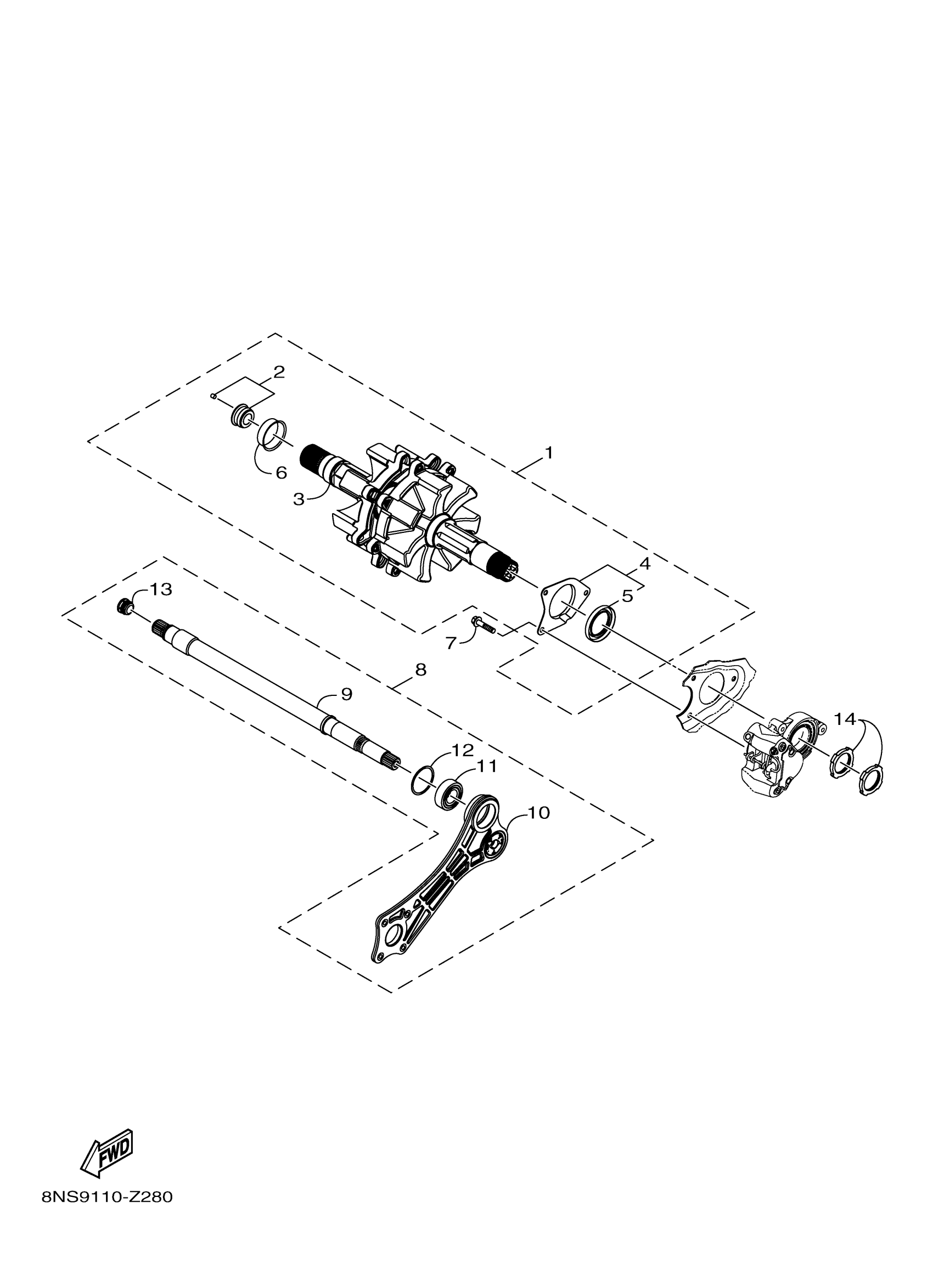

Yamaha MM8N54ERL (MOUNTAIN MAX 800 154 ES) 8NS9 2024 TRACK DRIVE 1 Diagram

#

Description
Price

1

FRONT AXLE SUB-ASS

8NS-G7501-10-00

Unavailable

2

SENSOR, SPEED

8ND-H3755-00-00

Unavailable

3

AXLE, FRONT

8NS-G7511-00-00

$185.99

4

CALIPER SEAL KIT

8NS-F5803-00-00

$22.99

5

SEAL, OIL

8NS-RAE02-00-00

$7.49

6

SLEEVE, DRIVE SHAF

8NS-G5536-00-00

$32.99

7

BOLT, FLG. M8X1.25

8JP-RA189-00-00

Unavailable

8

SECONDARY SHAFT COMP.

8NS-E7680-00-00

Unavailable

9

SHAFT, SECONDARY

8NS-E7681-00-00

$267.99

10

HOUSING, BEARING

8NV-G7631-00-00

$241.99

11

BEARING

8ND-RAG07-00-00

$37.99

12

CIRCLIP, 1

8ND-RAH03-00-00

$4.19

13

PLUG

8NS-G7339-00-00

$3.02

14

NUT

8NS-RA309-00-00

Unavailable
