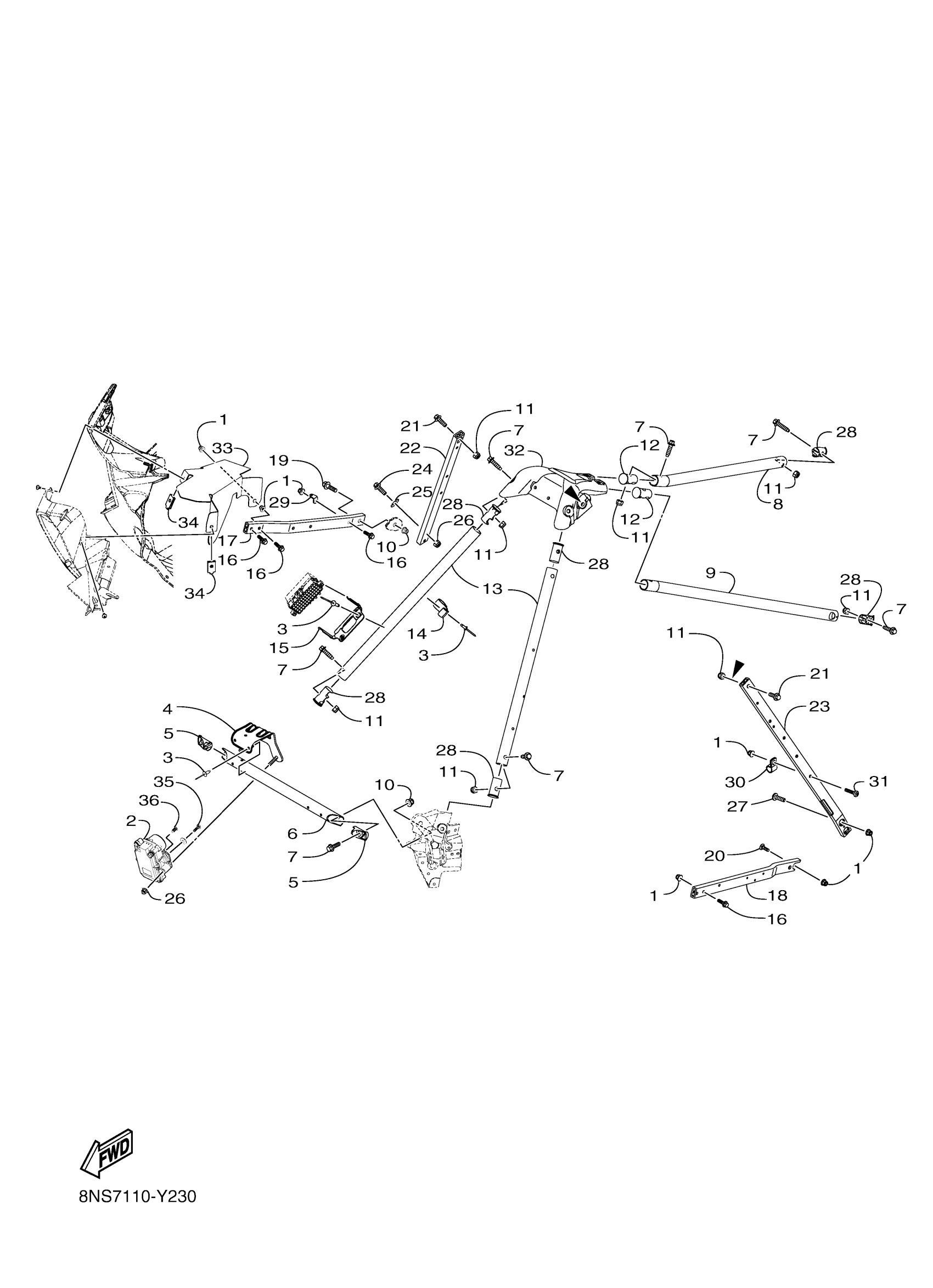

Yamaha MM8N54ERL (MOUNTAIN MAX 800 154 ES) 8NS9 2024 STEERING GATE Diagram

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

SERVO MOTOR ASSY

8NV-H5820-00-00

Unavailable

RIVET, 9

8JP-RA518-00-00

$0.59

BRACKET 1

8NV-F3881-00-00

$193.99

INSERT

8JP-F3775-00-00

Unavailable

SUPPORT, MEMBER

8NS-F2527-00-00

Unavailable

BOLT, FLANGE

8NS-RA104-00-00

$2.28

PIPE, CROSS, 7

8KC-F119E-00-00

$44.99

PIPE CROSS 8

8KC-F119F-00-00

$44.99

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

NUT, HEX. LOCKING

8JP-RA372-00-00

$0.54

CAP, MAIN PIPE

8JP-F111A-10-00

$3.98

PIPE, CROSS

8NS-F2162-00-00

Unavailable

CLAMP, 2

8ND-RAB01-00-00

Unavailable

BRACKET 1

8JP-E244E-00-00

Unavailable

BOLT, FLG. M6X1.0X

8JP-RA183-00-00

Unavailable

SUPPORT 2

8ND-F2568-00-00

Unavailable

SUPPORT 1

8ND-F2567-00-00

Unavailable

BOLT, FLANGE

8ND-RA177-00-00

Unavailable

BOLT

8ND-RA122-00-00

Unavailable

BOLT, FLG. M8X1.25

8JP-RA185-00-00

Unavailable

MEMBER, SIDE 1

8ND-F111J-00-00

Unavailable

MEMBER, SIDE 2

8ND-F111K-10-00

Unavailable

BOLT, FLG. M6X1.0X

8JP-RA182-00-00

Unavailable

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

Unavailable

NUT, LOCK 1

8JP-RA379-00-00

Unavailable

SCREW, M6X1.0X16

8JP-RA256-00-00

Unavailable

CAP, MAIN PIPE

8JP-F111A-20-00

Unavailable

BRACKET

8ML-E4744-00-00

Unavailable

CLAMP, 21

8JP-RAB23-00-00

Unavailable

SCREW, M6X1.0X25

8JP-RA263-00-00

Unavailable

GATE, STEERING

8NS-F3871-00-00

Unavailable

DUCT 1

8NV-F286A-00-00

Unavailable

NUT, CLIP

8JP-RA349-00-00

Unavailable

BOLT, FLANGE

8NW-RA191-00-00

Unavailable

PLUG, 1

8NT-RA600-00-00

Unavailable
