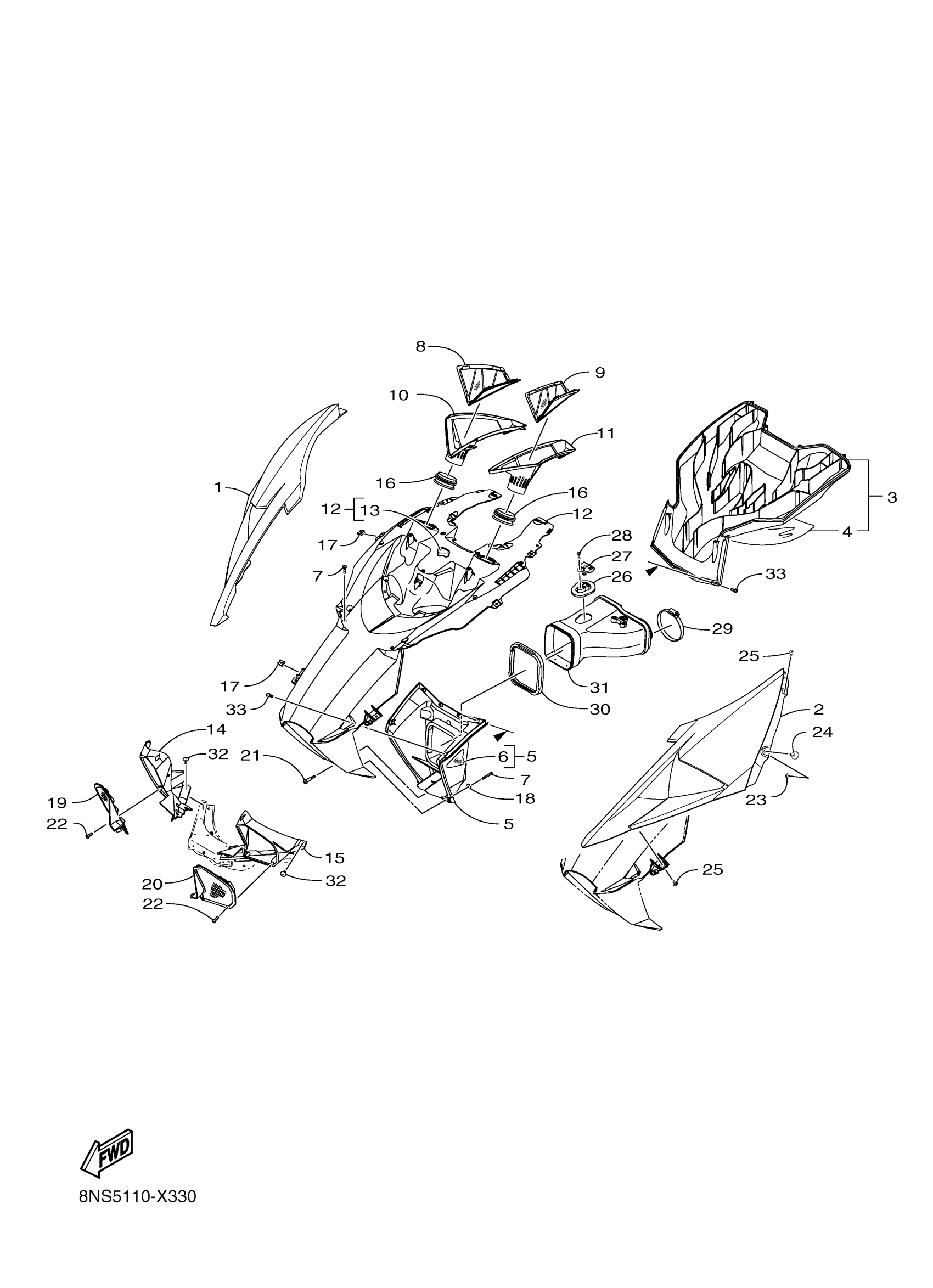

Yamaha MM8N54ERL (MOUNTAIN MAX 800 154 ES) 8NS9 2024 SHROUD Diagram
#
1
HOOD 4
8NS-K7122-30-00
$290.99
2
HOOD 3
8NS-K7121-30-00
Unavailable
3
INTAKE, LOWER
8ND-K715B-00-00
Unavailable
4
PROTECTOR, SIDE 1
8ND-K7561-00-00
Unavailable
5
DUCT, INTAKE
8ND-R1311-30-00
Unavailable
6
TAPE, REFLECTOR
8JP-H5133-00-00
$15.99
7
SCREW, 12
8JP-RA2A1-00-00
Unavailable
8
SCREEN, INTAKE DUC
8KC-K715E-00-00
Unavailable
9
SCREEN, INTAKE DUC
8KC-K715D-00-00
Unavailable
10
DUCT, INTAKE 2
8KC-K715G-10-00
Unavailable
11
DUCT, INTAKE 1
8KC-K715F-10-00
Unavailable
12
INTAKE, UPPER
8ND-K715C-10-00
Unavailable
13
PROTECTOR
8ND-K7373-10-00
Unavailable
14
VENT, FRONT 2
8ND-K715J-00-00
$31.99
15
VENT, FRONT 1
8ND-K715H-00-00
$25.99
16
SEAL, INTAKE
8KC-K715R-00-00
Unavailable
17
NUT, CLIP 10
8JP-RA352-00-00
Unavailable
18
WASHER, 1/4X0.625X
8JP-RA441-00-00
Unavailable
19
BEZEL, VENT 2
8KC-K715M-00-00
Unavailable
20
BEZEL, VENT 1
8KC-K715L-00-00
Unavailable
21
SCREW
8ND-RA211-00-00
Unavailable
22
SCREW, 4
8KC-RA238-00-00
Unavailable
23
NUT, 1
8JP-RA345-00-00
Unavailable
24
PIN, 2
8JP-RAK02-00-00
Unavailable
25
SCREW, TAPPING 1/4
8JP-RA202-00-00
Unavailable
26
BOOT
8ND-R1325-00-00
Unavailable
27
SENSOR, PRESSURE
8ND-H2380-00-00
Unavailable
28
SCREW, TAPPING
8ND-RA201-00-00
Unavailable
29
CLAMP, 12
8ND-RAB14-00-00
Unavailable
30
JOINT
8ND-E4454-00-00
Unavailable
31
DUCT
8ND-E4437-00-00
Unavailable
32
SCREW, TAPPING 1/4
8KC-RA202-00-00
Unavailable
33
SCREW, 12
8NV-RA2A1-00-00
Unavailable
