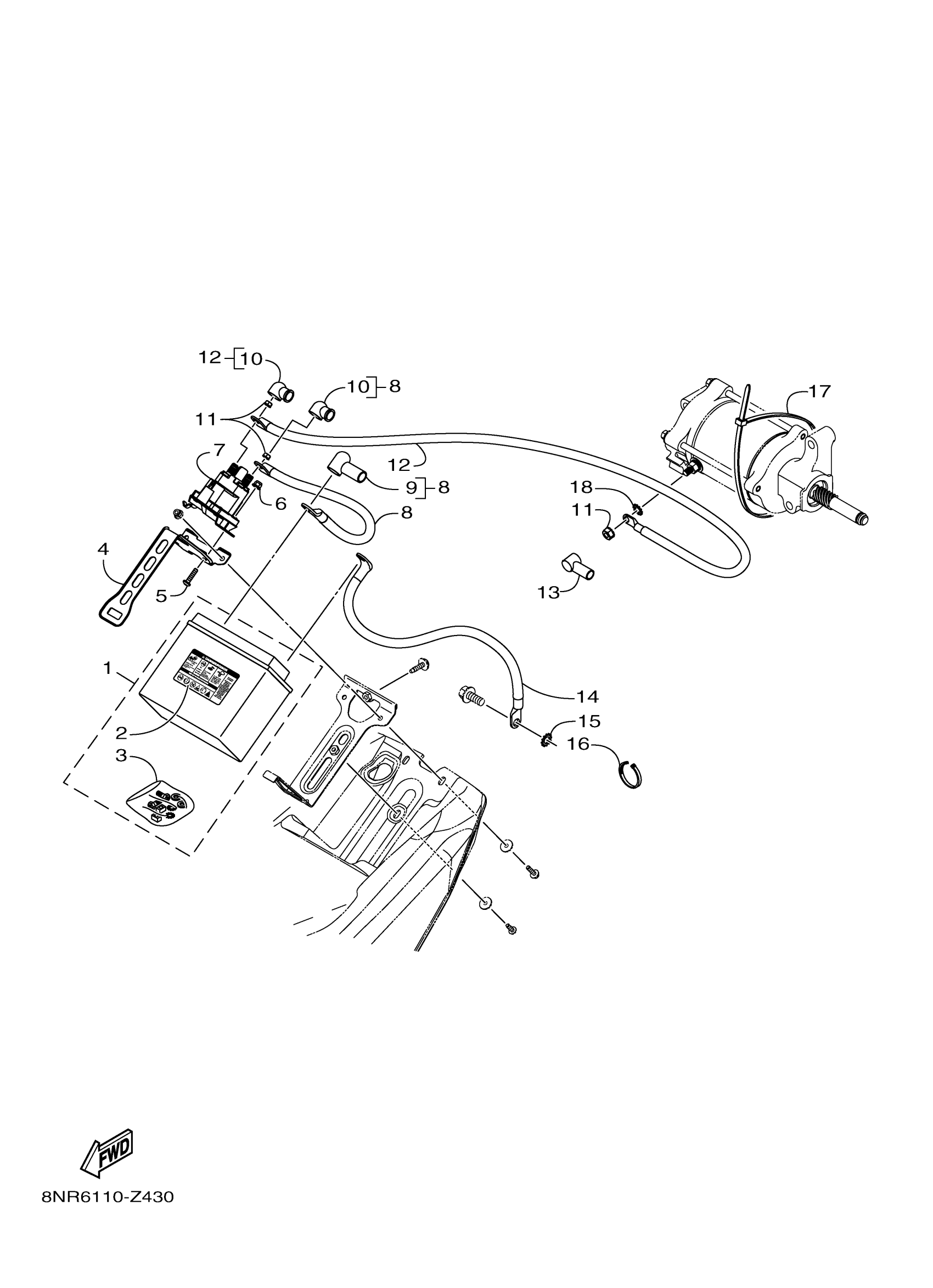

Yamaha MM8N54ERL (MOUNTAIN MAX 800 154 ES) 8NS9 2024 ELECTRICAL 2 Diagram

YTX20HBS YUASA BATTERY - SA

YTX-20HBS-00-00

Unavailable

. LABEL, BATTERY

8JP-H2141-00-00

Unavailable

. REPAIR PARTS KIT

8JP-F819G-00-00

Unavailable

BRACKET, BATTERY 2

8NS-H2158-00-00

$38.99

SCREW

8KC-RA229-00-00

$0.54

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

STARTER RELAY ASSY

8MT-H1940-00-00

$37.99

CABLE 1

8JP-H8146-00-00

Unavailable

COVER

8JP-H1942-10-00

$5.60

. COVER, TERMINAL

8JP-H1916-00-00

Unavailable

NUT, WITH WASHER M

8JP-RA375-00-00

$0.48

CABLE 2

8NS-H8147-00-00

$86.99

COVER

8JP-H1942-10-00

$5.60

WIRE, EARTH LEAD

8NS-H131Y-00-00

$84.99

WASHER, TOOTHED LO

8ND-RA407-00-00

$2.34

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

CLAMP, 2 (11.5 INCH)

8JP-RAB04-00-00

Unavailable

CLAMP, 1 (17.5 INCH)

8ND-RAB03-00-00

Unavailable

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

Unavailable
