- MM8N54EPL (MOUNTAIN MAX 800 154 ES) 8NS7 2023
STEERING GATE

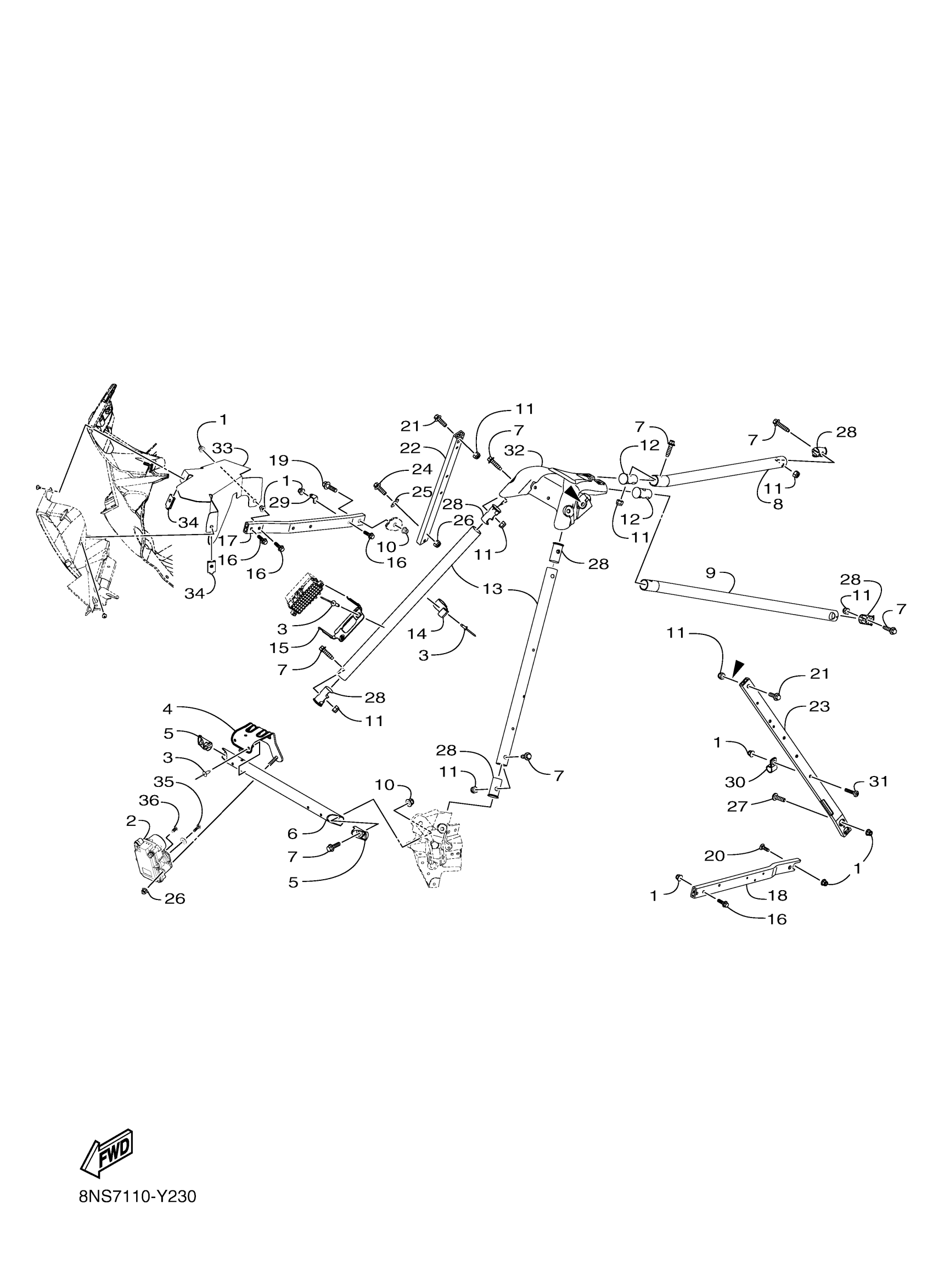

Yamaha MM8N54EPL (MOUNTAIN MAX 800 154 ES) 8NS7 2023 STEERING GATE Diagram
#
1
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
2
SERVO MOTOR ASSY
8NV-H5820-00-00
Unavailable
3
RIVET, 9
8JP-RA518-00-00
$0.59
4
BRACKET 1
8NV-F3881-00-00
$193.99
5
INSERT
8JP-F3775-00-00
Unavailable
6
SUPPORT, MEMBER
8NS-F2527-00-00
Unavailable
7
BOLT, FLANGE
8NS-RA104-00-00
$2.28
8
PIPE, CROSS, 7
8KC-F119E-00-00
$44.99
9
PIPE CROSS 8
8KC-F119F-00-00
$44.99
10
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
11
NUT, HEX. LOCKING
8JP-RA372-00-00
$0.54
12
CAP, MAIN PIPE
8JP-F111A-10-00
$3.98
13
PIPE, CROSS
8NS-F2162-00-00
Unavailable
14
CLAMP, 2
8ND-RAB01-00-00
Unavailable
15
BRACKET 1
8JP-E244E-00-00
Unavailable
16
BOLT, FLG. M6X1.0X
8JP-RA183-00-00
Unavailable
17
SUPPORT 2
8ND-F2568-00-00
Unavailable
18
SUPPORT 1
8ND-F2567-00-00
Unavailable
19
BOLT, FLANGE
8ND-RA177-00-00
Unavailable
20
BOLT
8ND-RA122-00-00
Unavailable
21
BOLT, FLG. M8X1.25
8JP-RA185-00-00
Unavailable
22
MEMBER, SIDE 1
8ND-F111J-00-00
Unavailable
23
MEMBER, SIDE 2
8ND-F111K-10-00
Unavailable
24
BOLT, FLG. M6X1.0X
8JP-RA182-00-00
Unavailable
25
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
Unavailable
26
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
27
SCREW, M6X1.0X16
8JP-RA256-00-00
Unavailable
28
CAP, MAIN PIPE
8JP-F111A-20-00
Unavailable
29
BRACKET
8ML-E4744-00-00
Unavailable
30
CLAMP, 21
8JP-RAB23-00-00
Unavailable
31
SCREW, M6X1.0X25
8JP-RA263-00-00
Unavailable
32
GATE, STEERING
8NS-F3871-00-00
Unavailable
33
DUCT 1
8NV-F286A-00-00
Unavailable
34
NUT, CLIP
8JP-RA349-00-00
Unavailable
35
BOLT, FLANGE
8NW-RA191-00-00
Unavailable
36
PLUG, 1
8NT-RA600-00-00
Unavailable
