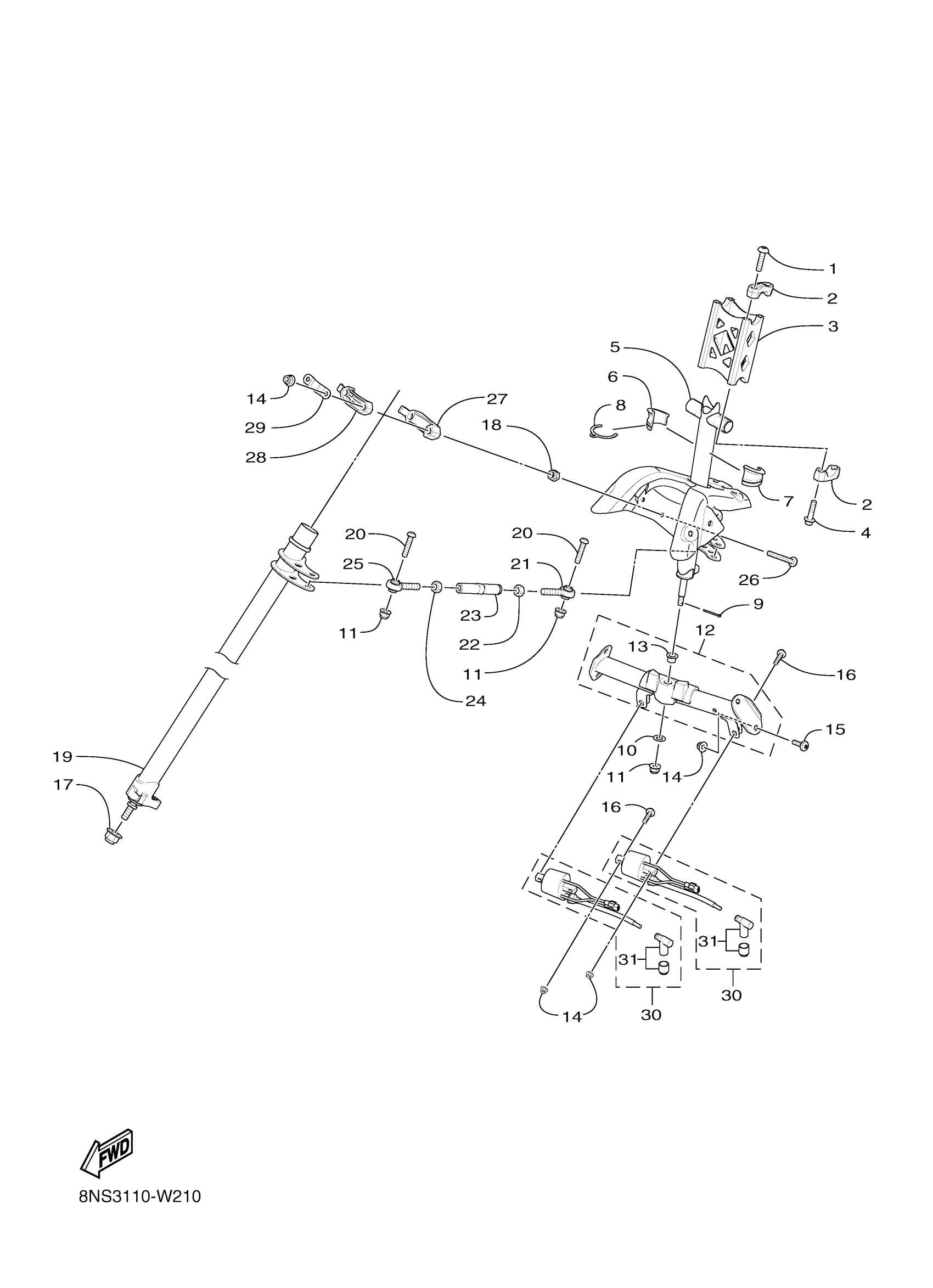

Yamaha MM8N54EPL (MOUNTAIN MAX 800 154 ES) 8NS7 2023 STEERING 2 Diagram

SCREW,9

8KG-RA298-00-00

$1.64

HOLDER, HANDLE UPP

8JP-F3814-10-00

$17.99

JOINT

8JP-F381B-10-00

$115.99

BOLT, FLG. M8X1.25

8JP-RA188-00-00

Unavailable

COLUMN, STEERING

8NS-F3811-00-00

Unavailable

BEARING 2

8NS-F51H2-00-00

Unavailable

BEARING

8NS-F51H1-00-00

Unavailable

CIRCLIP, 1

8NS-RAH00-00-00

Unavailable

PIN, COTTER

8NS-F3433-00-00

$0.85

WASHER, THRUST

8NS-F5146-00-00

Unavailable

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

BRACKET 1

8NS-F3881-00-00

$163.99

BEARING, STEERING

8NS-F3812-00-00

$13.49

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

SCREW, M6X1.0X25

8JP-RA263-00-00

Unavailable

SCREW, M6X1.0X30

8JP-RA265-00-00

Unavailable

LOCK NUT

8JP-RA378-01-00

Unavailable

NUT, LOCK 1

8JP-RA379-00-00

Unavailable

COLUMN, STEERING 2

8NS-F3813-00-00

Unavailable

SCREW, M8X1.25X37

8JP-RA274-00-00

Unavailable

JOINT, UNIVERSAL 2

8JP-F3845-00-00

Unavailable

NUT, HEX. M10X1.25

8JP-RA369-00-00

Unavailable

ROD, STEERING

8NS-F3828-00-00

Unavailable

NUT, HEX. M10-1.25

8JP-RA368-00-00

Unavailable

JOINT, UNIVERSAL 1

8NS-F3841-00-00

Unavailable

SCREW, 10

8ND-RA299-00-00

Unavailable

BEARING, STEERING

8ND-F3812-00-00

Unavailable

BEARING,STEERING

8KG-F3812-00-00

Unavailable

HOLDER, BEARING

8JP-F3872-00-00

Unavailable

IGNITION COIL ASSY

8ND-H2310-00-00

Unavailable

PLUG CAP ASSY

8ND-H2370-00-00

Unavailable
