Description

Price

1

PRIMARY SHEAVE ASS

8NR-E7601-00-00

Unavailable

2

BEARING

8NR-E7678-00-00

Unavailable

3

COLLAR

8NR-E7645-10-00

Unavailable

4

BOLT

8NR-RA123-10-00

$2.28

5

WASHER, THRUST

8NR-E7529-10-00

$0.90

5

WASHER, THRUST

8NR-E7529-20-00

Unavailable

6

PIN, WEIGHT

8NR-E7628-00-00

$9.49

7

WASHER

8NR-RA442-00-00

Unavailable

8

ROLLER, COMP

8NR-E7624-10-00

Unavailable

9

BUSH

8NR-E7625-00-00

Unavailable

10

.. SCREW

8NR-RA208-00-00

Unavailable

11

CLIP, 1

8NR-RAC10-00-00

Unavailable

12

COLLAR, DISTANCE 1

8NR-E7685-00-00

$0.70

12

COLLAR, DISTANCE 1

8NR-E7685-10-00

$2.07

13

SCREW

8NR-RA212-00-00

$2.22

14

SPRING, PRIMARY

8NR-E7643-00-00

Unavailable

15

WEIGHT

8NR-E7632-00-00

Unavailable

16

V-BELT

8NV-E7641-00-00

Unavailable

17

BOLT

8ND-E7647-00-00

Unavailable

18

COLLAR, 18

8NR-RA734-00-00

Unavailable

19

COLLAR

8NR-E7645-00-00

Unavailable

20

WASHER, 3

8NR-RA434-00-00

Unavailable

21

WASHER, 4

8NR-RA435-00-00

Unavailable

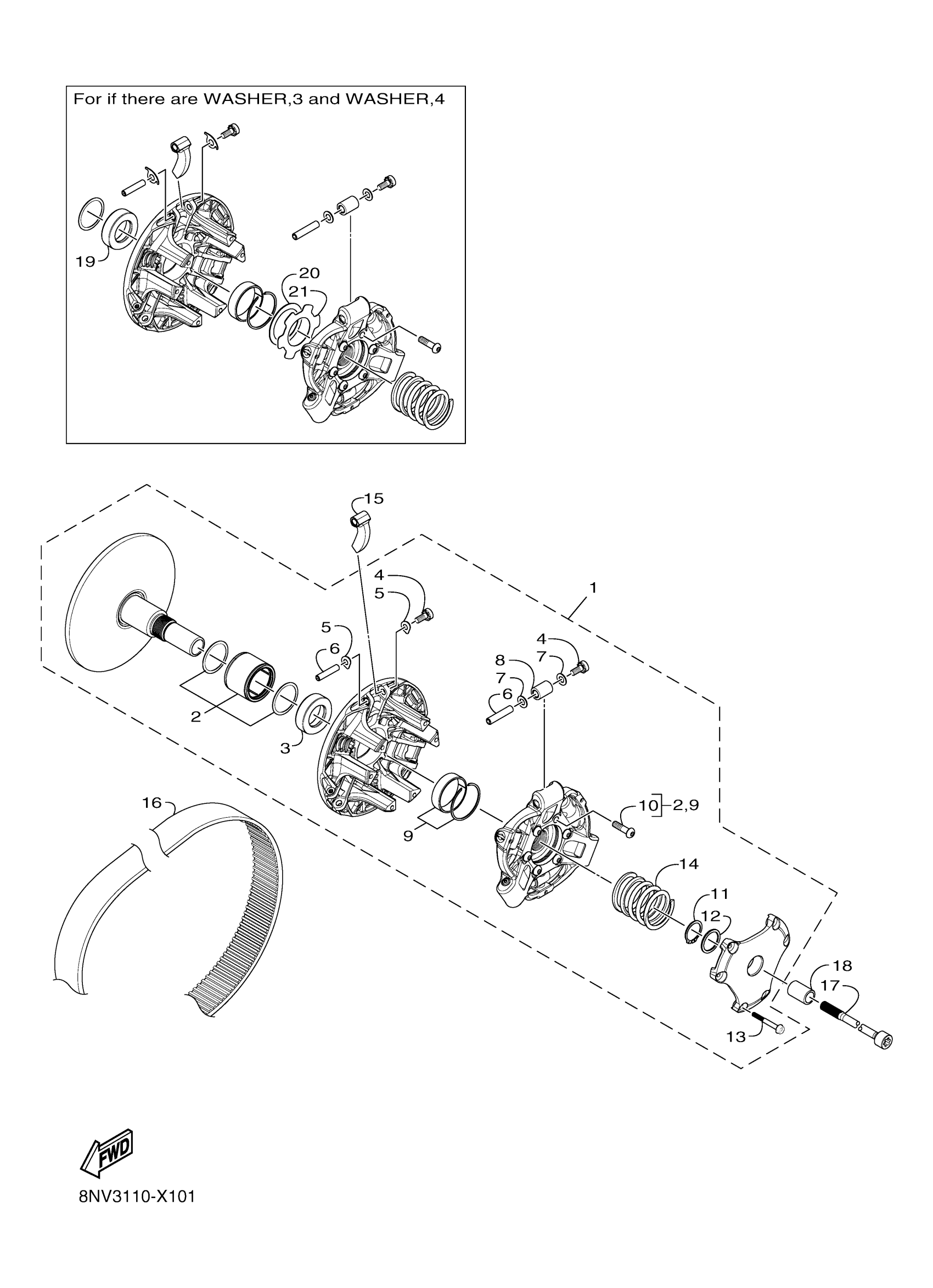

Yamaha MM8N54ENS (MOUNTAIN MAX 800 LE 154) 8NS5 2022 PRIMARY SHEAVE Diagram

PRIMARY SHEAVE ASS

BEARING

COLLAR

BOLT

WASHER, THRUST

WASHER, THRUST

PIN, WEIGHT

WASHER

ROLLER, COMP

BUSH

.. SCREW

CLIP, 1

COLLAR, DISTANCE 1

COLLAR, DISTANCE 1

SCREW

SPRING, PRIMARY

WEIGHT

V-BELT

BOLT

COLLAR, 18

COLLAR

WASHER, 3

WASHER, 4
