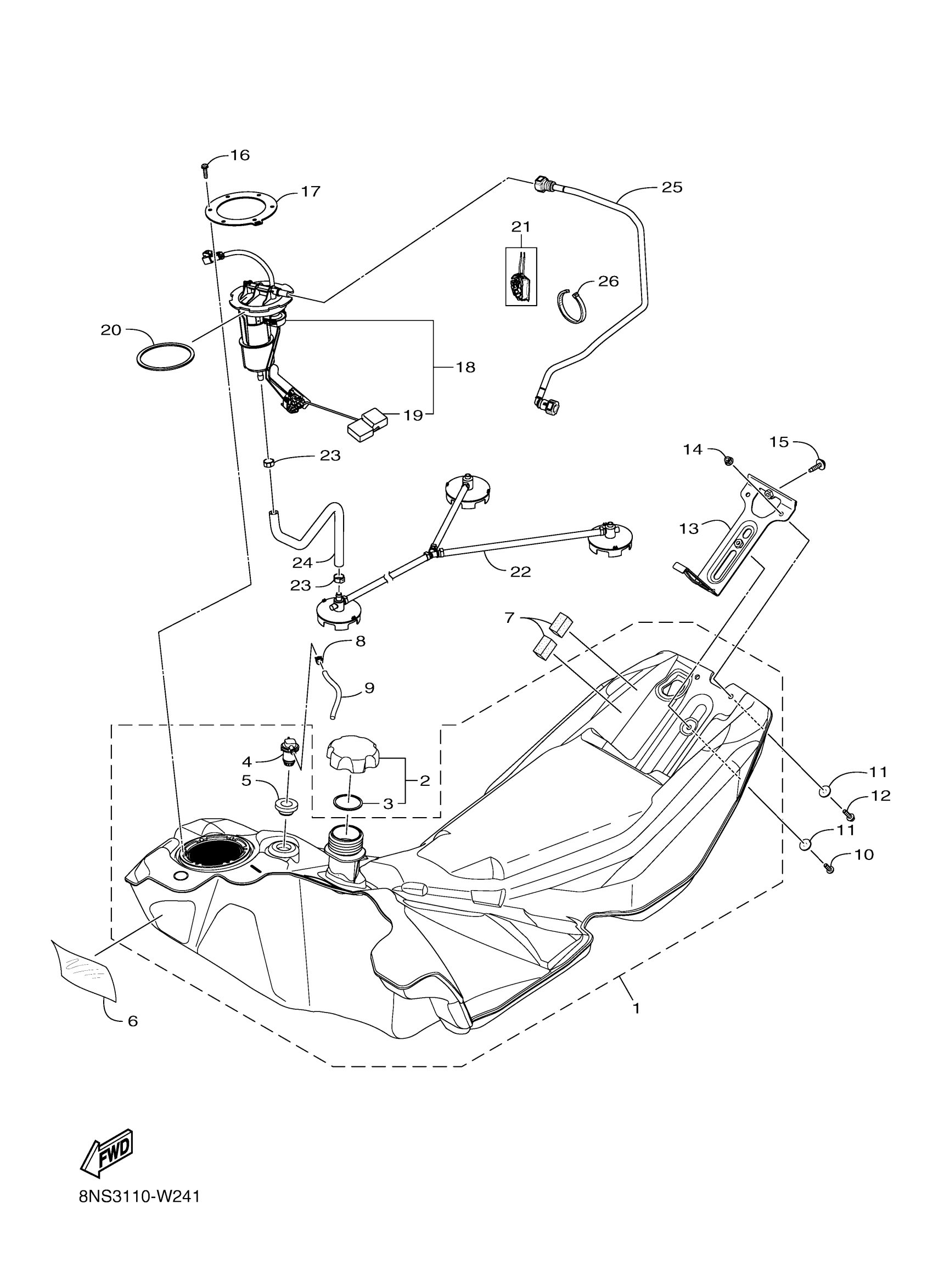

Yamaha MM8N54ENS (MOUNTAIN MAX 800 LE 154) 8NS5 2022 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK ASSY
8NS-F4100-00-00
Unavailable
2
CAP ASSY
8ND-F4610-00-00
Unavailable
3
SEAL, GAS CAP
8JM-F4641-00-00
Unavailable
4
VALVE, CHECK 1
8JP-F4362-10-00
Unavailable
5
GROMMET
8JP-E5366-10-00
$3.76
6
TAPE,ALUM FOIL - 6" X 30 FT
8JM-F199H-00-00
Unavailable
7
PROTECTOR, FUEL TA
8NS-F4141-00-00
$3.40
8
CLAMP, 10
8JP-RAB12-00-00
$0.54
9
HOSE, 3 (50 FEET)
8JP-RA907-00-00
$295.99
10
BOLT, FLANGE
8MF-RA100-00-00
Unavailable
11
WASHER 1
8KC-K7525-00-00
$0.54
12
SCREW
8MF-RA204-00-00
Unavailable
13
BRACKT, TANK FITTI
8NS-F134U-00-00
$58.99
14
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
15
SCREW
8NS-RA257-00-00
Unavailable
16
SCREW, M5X0.8X20
8JP-RA242-00-00
Unavailable
17
BRACKET, FUEL PUMP
8NS-F4491-00-00
Unavailable
18
FUEL PUMP COMP.
8ND-E3907-00-00
Unavailable
19
FLOAT
8JP-H369N-00-00
Unavailable
20
O-RING
8JP-F4486-00-00
Unavailable
21
SENDER ASSY
8LN-H5701-00-00
Unavailable
22
FILTER, FUEL
8ND-F4502-00-00
Unavailable
23
CLAMP, 6
8JP-RAB08-00-00
Unavailable
24
HOSE, FUEL INLET
8ND-F451B-00-00
Unavailable
25
FUEL PIPE ASSY
8NV-F4310-00-00
Unavailable
26
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
26
CLAMP, 2 (11.5 INCH)
8JP-RAB04-00-00
Unavailable
