1997 Yamaha Mountain Max 800 (MM800A) Windshield Diagram

← All diagrams

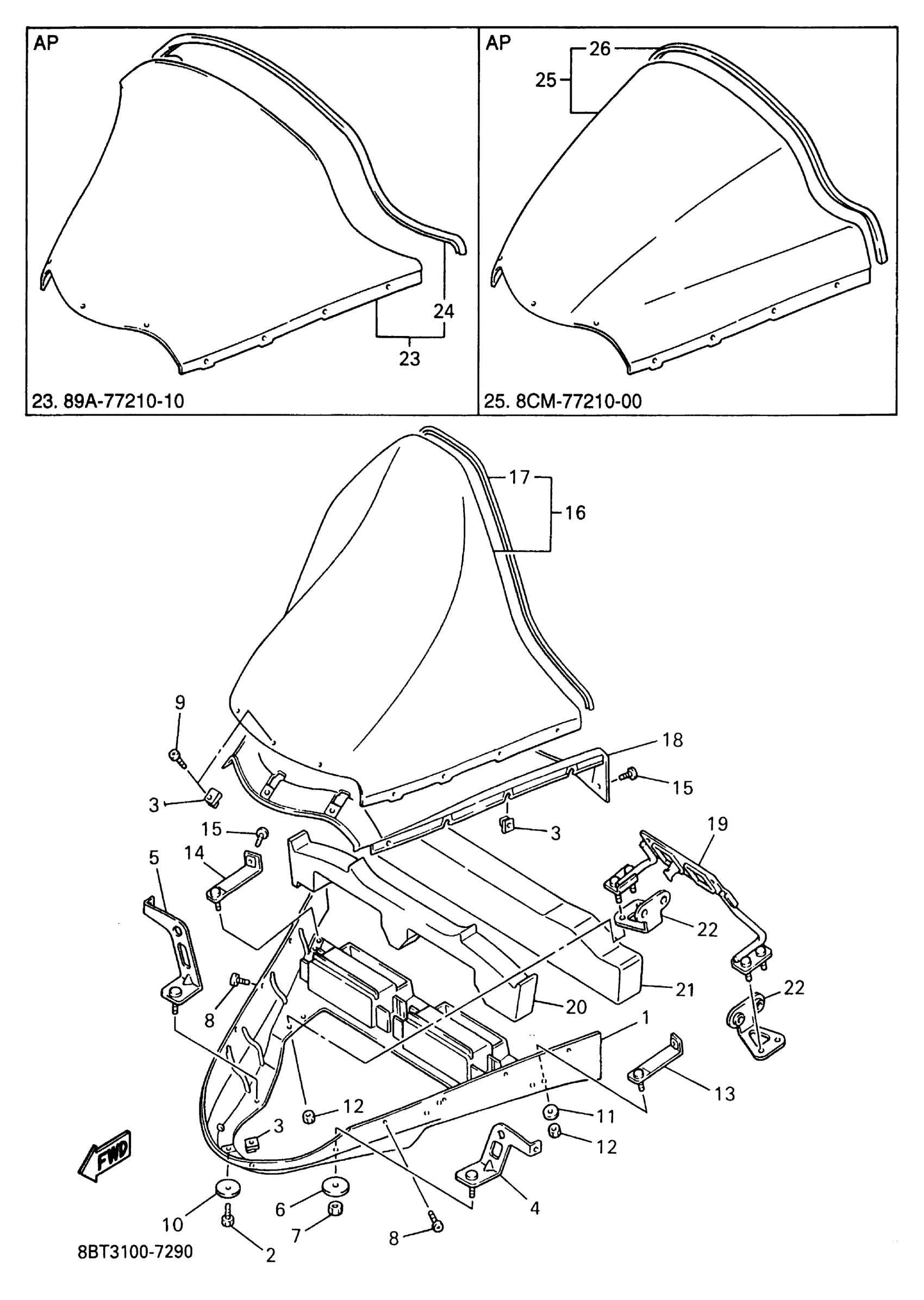

Find the part on the Windshield diagram for your 1997 Yamaha Mountain Max 800 (MM800A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Mountain Max 800 (MM800A) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FAIRING

8BU-77231-00-00

1
Out of stock

2

BOLT(4TW)

97017-05016-00

1
Out of stock

3

NUT

89A-77144-00-00

1
Out of stock

4

STAY 1

8AB-77125-00-00

1
Out of stock

5

STAY 2

8AB-77126-00-00

1
Out of stock

6

WASHER, PLATE (3Y6)

90201-083A6-00

1
Out of stock

7

NUT(6TA)

95337-08600-00

1

$6.17

In stock

8

SCREW, BINDING(2EK)

90154-05042-00

1
Out of stock

9

SCREW, ROUND HEAD(88R)

90150-05028-00

1

$2.64

In stock

10

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

11

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

12

NUT(6TA)

95317-06600-00

1

$2.69

In stock

13

PLATE, BACK UP 1

89A-77153-00-00

1
Out of stock

14

PLATE, BACK UP 2

89A-77154-00-00

1
Out of stock

15

SCREW, BINDING (10V)

90154-05013-00

1
Out of stock

16

WINDSHIELD, TLVMAX

8CL-77210-00-XX

1
Out of stock

17

TRIM,UPPER

87K-77213-00-00

1
Out of stock

18

COVER, HEADLIGHT

89A-77251-00-00

1
Out of stock

19

BRACKET, METER

89A-83519-00-00

1
Out of stock

20

LINING, SHROUD

8AB-77268-00-00

1
Out of stock

21

SHIELD, NOISE 2

89A-2199J-00-00

—

$80.97

In stock

22

STAY 3

8AB-77127-00-00

1
Out of stock

23

WINDSHIELD COMP.

89A-77210-10-00

1
Out of stock

24

TRIM,UPPER

87K-77213-00-00

1
Out of stock

25

WINDSHIELD COMP.

8CM-77210-00-00

1
Out of stock

26

TRIM,UPPER

87K-77213-00-00

1
Out of stock
