1997 Yamaha Mountain Max 800 (MM800A) Frame Diagram

← All diagrams

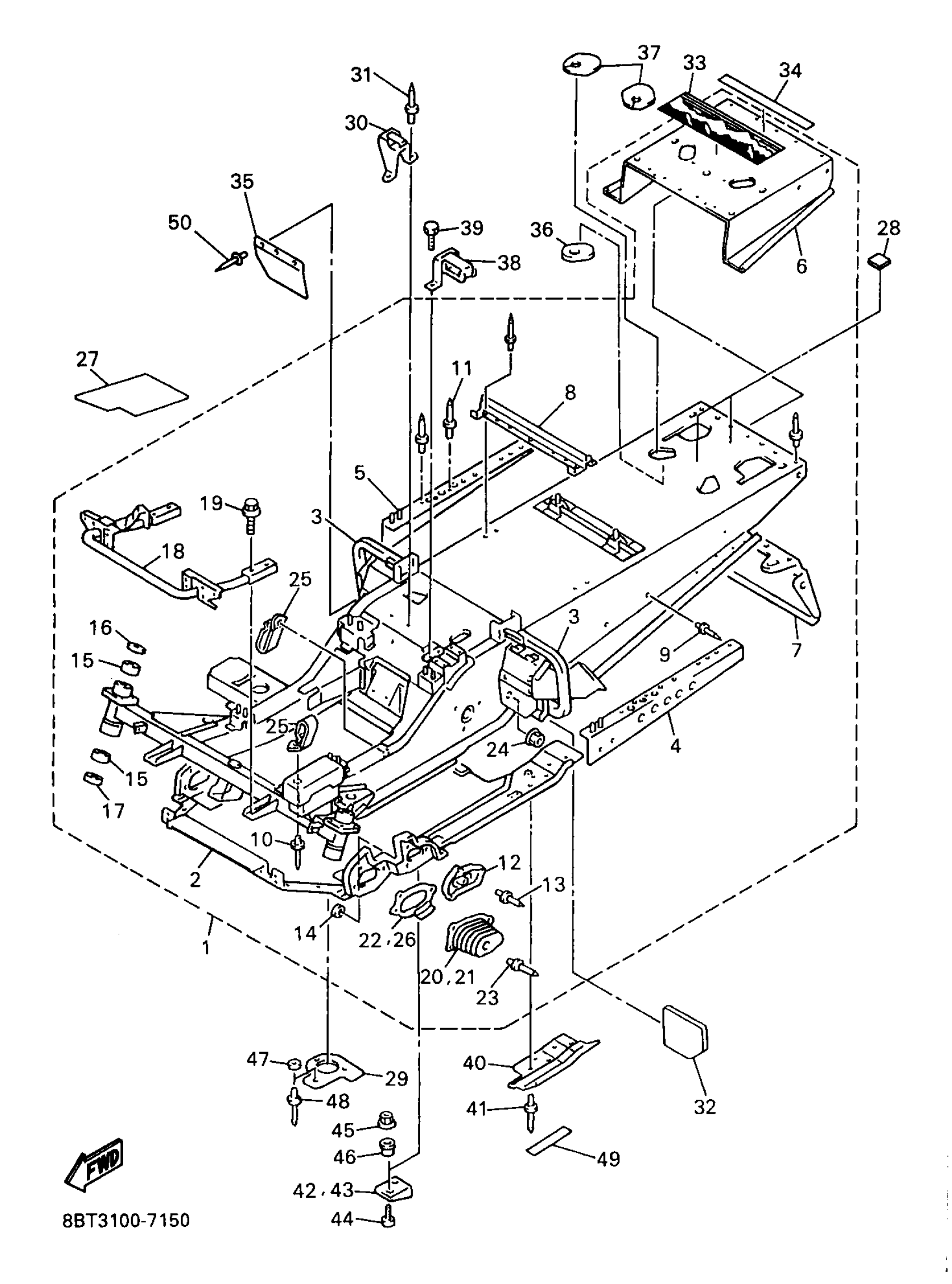

Find the part on the Frame diagram for your 1997 Yamaha Mountain Max 800 (MM800A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Mountain Max 800 (MM800A) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8BT-21910-10-00

1
Out of stock

2

. PANEL, SUB FRAME 1

89A-21912-00-00

1
Out of stock

3

. REINFORCEMENT, FOOTREST 1

89A-21926-00-00

1
Out of stock

4

. PATCH 4

8AB-21964-00-00

1
Out of stock

5

. PATCH 5

8AB-21965-00-00

1
Out of stock

6

. PANEL, SUB FRAME 5

8BT-21916-00-00

1
Out of stock

7

RNFCMNT,FRAME REAR

89A-21923-20-00

1
Out of stock

8

. BRACKET, SEAT FITTING

8AB-21946-00-00

1
Out of stock

9

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

10

RIVET, BLIND

90267-48018-00

1
Out of stock

11

RIVET(89R)

90269-04044-00

—
Out of stock

12

COVER 1

8M6-2198F-00-00

1
Out of stock

13

RIVET, BLIND

90267-40029-00

1
Out of stock

14

WASHER, PLATE

90201-04027-00

1
Out of stock

15

. BUSH, SOLID

90380-38205-00

1
Out of stock

16

. OIL SEAL

93102-38441-00

1
Out of stock

17

. OIL SEAL

93103-38172-00

1
Out of stock

18

. BUMPER, FRONT 2

89A-77512-00-00

1
Out of stock

19

BOLT, FLANGE

95817-08040-00

—
Out of stock

20

. COVER 1

89A-2198F-00-00

1
Out of stock

21

. COVER 3

89A-2198J-00-00

1
Out of stock

22

. WASHER 2

89A-77526-00-00

1
Out of stock

23

RIVET, BLIND (8M6)

90267-48051-00

—
Out of stock

24

NUT, NYLON

95717-08300-00

—
Out of stock

25

CLAMP(51Y)

90465-08277-00

—
Out of stock

26

. WASHER 1

89A-77525-00-00

1
Out of stock

27

SHIELD, HEAT

89A-2199H-01-00

1
Out of stock

28

DAMPER

2GH-24185-00-00

—
Out of stock

29

SHIELD, NOISE

89A-2199F-00-00

1
Out of stock

30

BRACKET 4

89A-2196G-00-00

1
Out of stock

31

RIVET, BLIND (8H4)

90267-48053-00

—
Out of stock

32

COVER 2

89A-2198G-10-00

1
Out of stock

33

EMBLEM 1

8BH-77141-00-00

1
Out of stock

34

LABEL, WARNING 2

8CY-77762-00-00

1
Out of stock

35

CLAMP, FOOTREST

89A-21985-10-00

1
Out of stock

36

PATCH 5

82M-21965-00-00

1
Out of stock

37

PATCH 5

88R-21965-00-00

1
Out of stock

38

BRACKET 3

89A-2196F-00-00

1
Out of stock

39

BOLT(4GV)

97017-05012-00

—
Out of stock

40

FRAME UNDER 1

89A-2196A-01-00

1
Out of stock

41

RIVET, BLIND

90267-48018-00

1
Out of stock

42

PAD 1

89A-77151-00-00

1
Out of stock

43

PAD 2

89A-77152-00-00

1
Out of stock

44

SCREW, WITH WASHER (5U8)

90159-06056-00

—
Out of stock

45

NUT, FLANGE(4MV)

95707-06500-00

—
Out of stock

46

COLLAR (3L6)

90387-06737-00

—
Out of stock

47

WASHER, PLATE

90201-04027-00

1
Out of stock

48

RIVET, BLIND

90267-48018-00

1
Out of stock

49

TRIM, LOWER

89A-77214-00-00

—
Out of stock

50

RIVET, BLIND (8J5)

90267-48057-00

—
Out of stock
