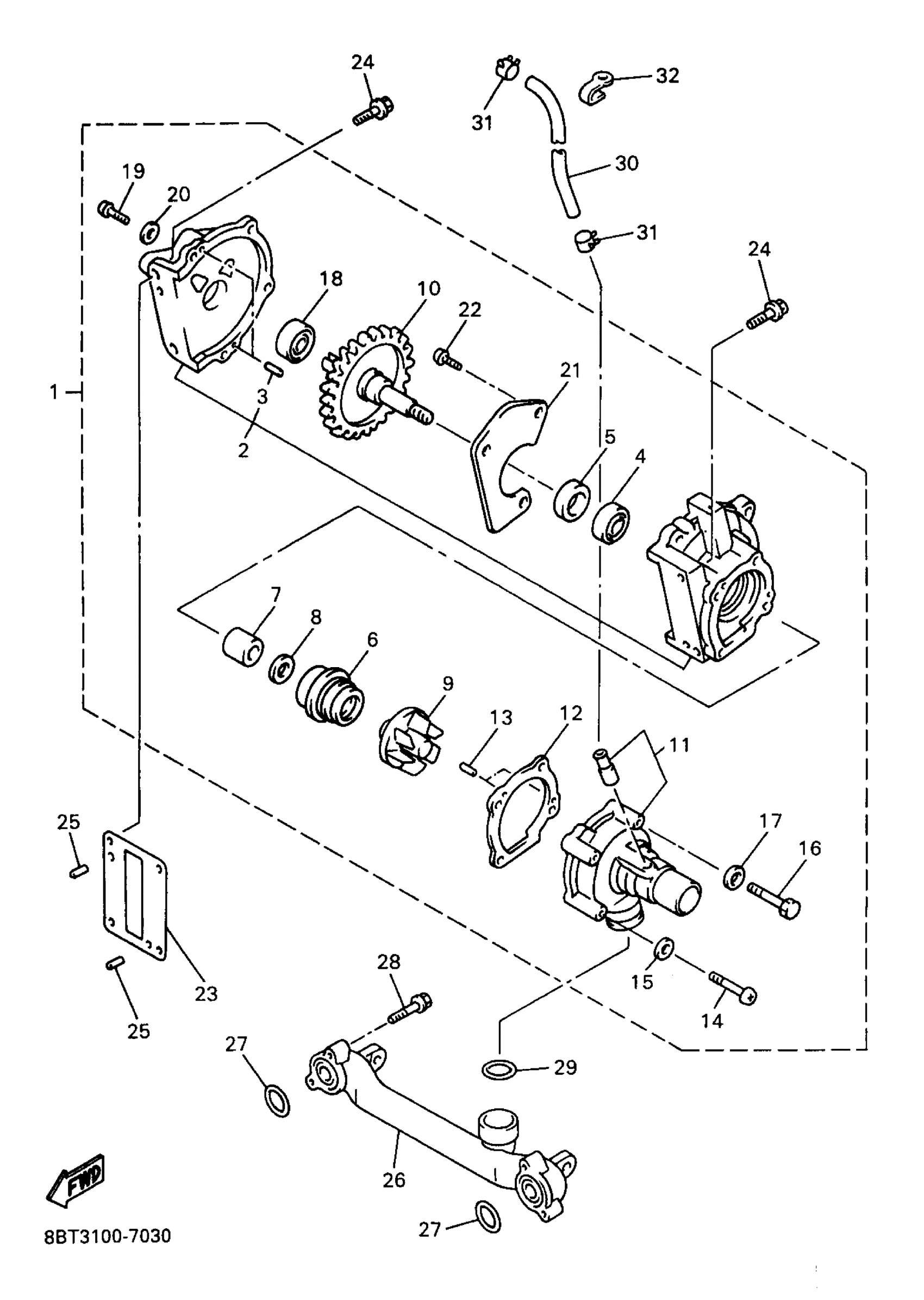

Yamaha MM800A (MOUNTAIN MAX 800) 8BT3 1997 WATER PUMP Diagram
#
1
WATER PUMP ASSEMBLY
89A-12420-00-00
Unavailable
2
. HOUSING, WATER PUMP
89A-W1247-00-00
Unavailable
3
PIN,DOWEL (603)
93604-10011-00
$8.49
4
BEARING(82M)
93306-20117-00
$34.99
5
. OIL SEAL
93101-19159-00
Unavailable
6
SEAL, MECHANICAL
82M-12438-00-00
Unavailable
7
STOPPER
82M-12437-00-00
Unavailable
8
WASHER, PLATE 2562171800
90201-08088-00
Unavailable
9
. IMPELLER, WATER PUMP
89A-12451-00-00
Unavailable
10
. IMPELLER SHAFT ASSEMBLY
89A-12450-00-00
Unavailable
11
. COVER, HOUSING
89A-W1241-00-00
Unavailable
12
. GASKET, HOUSING COVER 1
89A-12427-00-00
Unavailable
13
PIN,DOWEL (603)
93604-10011-00
$8.49
14
SCREW, PAN
98507-06035-00
$8.49
15
WASHER(6TA)
92907-06600-00
$2.72
16
BOLT, FLANGE
95817-06035-00
Unavailable
17
GASKET (4V2)
90430-06166-00
Unavailable
18
BRG,R-B 6001 28MM 28G KY
93306-00105-00
Unavailable
19
SCREW, PAN
98517-06020-00
Unavailable
20
WASHER(6TA)
92907-06600-00
$2.72
21
. PLATE
89A-12535-00-00
Unavailable
22
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
23
GASKET, WATER PUMP
89A-12449-00-00
Unavailable
24
BOLT, FLANGE
95817-06020-00
Unavailable
25
PIN STRAIGHT 257185520000
90250-06013-00
Unavailable
26
JOINT 1
89A-12469-00-00
Unavailable
27
O-RING(1KT)
93210-27778-00
Unavailable
28
BOLT, WASHER BASED(4KG)
90105-060A0-00
Unavailable
29
O-RING (169)
93210-25071-00
Unavailable
30
HOSE 1
89A-1243A-00-00
Unavailable
31
CLIP (7K7)
90467-11044-00
Unavailable
32
CLAMP(4MX)
90465-06376-00
Unavailable
