- MM800A (MOUNTAIN MAX 800) 8BT3 1997
TRACK SUSPENSION 2

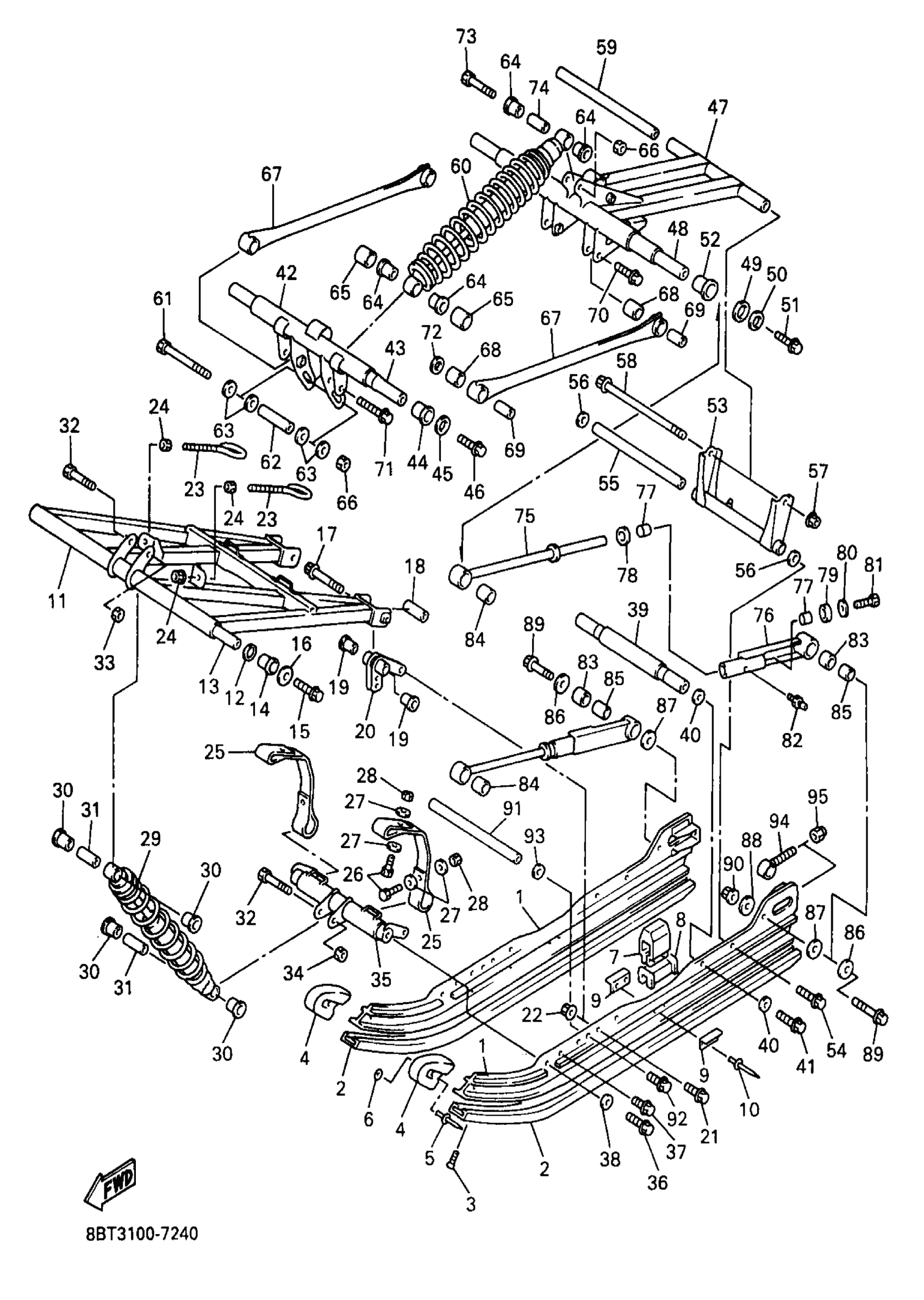

Yamaha MM800A (MOUNTAIN MAX 800) 8BT3 1997 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING
8CW-W4741-00-00
Unavailable
2
136 (DZ) RED HYFAX
SMA-8CW92-70-DZ
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
5
RIVET, BLIND (8K4)
90267-48062-00
$3.66
6
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
7
DAMPER 2
8CM-47457-00-00
$16.49
8
SPACER
8CM-47341-00-00
$16.49
9
PLATE, DAMPER
8AX-47458-00-00
$10.99
10
RIVET, BLIND (8K4)
90267-48062-00
$3.66
11
ARM, PIVOT 1
8BU-47331-01-00
Unavailable
12
WASHER, PLATE(8CJ)
90201-210U0-00
$10.49
13
SHAFT 1
8CM-47465-10-00
Unavailable
14
BUSH, SOLID(8CJ)
90381-19111-00
$15.99
15
BOLT (8V0)
90109-10771-00
$5.60
16
WASHER, PLATE (856)
90201-10321-00
Unavailable
17
BOLT, FLANGE
90105-10029-00
Unavailable
18
COLLAR(8CJ)
90387-1009T-00
Unavailable
19
BUSH, SOLID(8CJ)
90381-15112-00
Unavailable
20
BRACKET 1
8CR-47415-00-00
Unavailable
21
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
22
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
23
HOOK 3
8CR-47448-00-00
Unavailable
24
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
25
STOPPER 1
8CR-47495-00-00
Unavailable
26
BOLT, HEXAGON
97017-06025-00
Unavailable
27
WASHER, PLATE
90201-06747-00
Unavailable
28
NUT, NYLON
95707-06300-00
Unavailable
29
SHOCK ABSORBER 2
8BT-47481-10-00
Unavailable
30
COLLAR (8U7)
90387-145G7-00
Unavailable
31
COLLAR (8U7)
90387-105G5-00
Unavailable
32
BOLT(88R)
90101-10738-00
Unavailable
33
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
34
NUT, U
95617-10100-00
Unavailable
35
BRACKET 4
8CR-47418-10-00
Unavailable
36
BOLT, FLANGE
95817-10030-00
Unavailable
37
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
38
WASHER, PLATE (4X7)
90201-105A2-00
Unavailable
39
SHAFT 4
84J-47486-00-00
Unavailable
40
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
41
BOLT, FLANGE
95817-10030-00
Unavailable
42
BRACKET 2
99999-03087-00
Unavailable
43
SHAFT 6
8BU-47488-00-00
Unavailable
44
BUSH, SOLID(8CM)
90381-22099-00
Unavailable
45
WASHER, PLATE(1KE)
90201-207J5-00
Unavailable
46
BOLT (8V0)
90109-10771-00
$5.60
47
ARM, PIVOT 2
8CR-47332-10-00
Unavailable
48
SHAFT 2
8BT-47475-00-00
Unavailable
49
WASHER, PLATE (8V2)
90201-251G8-00
Unavailable
50
WASHER, PLATE(8CJ)
90201-250T6-00
Unavailable
51
BOLT (8V0)
90109-10771-00
$5.60
52
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
53
BRACKET 3
8CR-47417-01-00
Unavailable
54
BOLT, FLANGE
95817-10030-00
Unavailable
55
SHAFT 3
82M-47485-02-00
Unavailable
56
WASHER PLATE (789)
90201-10136-00
Unavailable
57
NUT, SELF-LOCKING
90185-08169-00
Unavailable
58
BOLT, FLANGE
95827-08220-00
Unavailable
59
COLLAR (8U7)
90387-083G6-00
Unavailable
60
SHOCK ABSORBER
8BT-47480-10-00
Unavailable
61
BOLT
90101-10782-00
Unavailable
62
COLLAR(8CJ)
90387-1009S-00
Unavailable
63
WASHER, PLATE(8BT)
90201-100U1-00
Unavailable
64
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
65
COLLAR(8CM)
90387-1404R-00
Unavailable
66
NUT, U
95617-10100-00
Unavailable
67
ROD, RELAY
8CR-47494-01-00
Unavailable
68
BUSH, SOLID(8CJ)
90381-14109-00
Unavailable
69
COLLAR(87A)
90387-100X3-00
Unavailable
70
BOLT, FLANGE
95817-10035-00
Unavailable
71
BOLT, FLANGE
95814-10040-00
Unavailable
72
WASHER, PLATE
90201-106R2-00
Unavailable
73
BOLT(88R)
90101-10738-00
Unavailable
74
COLLAR (8U7)
90387-105G5-00
Unavailable
75
ROD, CONTROL 1
99999-03627-00
Unavailable
76
ROD, CONTROL 2
8CR-4745B-00-00
Unavailable
77
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
78
WASHER, PLATE(8BT)
90202-16230-00
Unavailable
79
WASHER, PLATE(8BT)
90202-16232-00
Unavailable
80
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
81
BOLT(6TD)
97017-10025-00
Unavailable
82
NIPPLE, GREASE
93700-06M03-00
Unavailable
83
BUSH, SOLID(8CM)
90380-22232-00
Unavailable
84
BUSH, SOLID(8CJ)
90380-28235-00
Unavailable
85
COLLAR
90387-1006U-00
Unavailable
86
WASHER, PLATE(8CM)
90201-100S0-00
Unavailable
87
WASHER, PLATE(JN9)
90201-100S2-00
Unavailable
88
WASHER, PLATE
90201-101U2-00
Unavailable
89
BOLT, FLANGE
90105-10030-00
Unavailable
90
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
91
SHAFT 3
82M-47485-02-00
Unavailable
92
BOLT, FLANGE
95817-10030-00
Unavailable
93
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
94
COLLAR 3
8K2-47479-01-00
Unavailable
95
NUT, NYLON
95707-10300-00
Unavailable
