- MM800A (MOUNTAIN MAX 800) 8BT3 1997
TRACK DRIVE 2

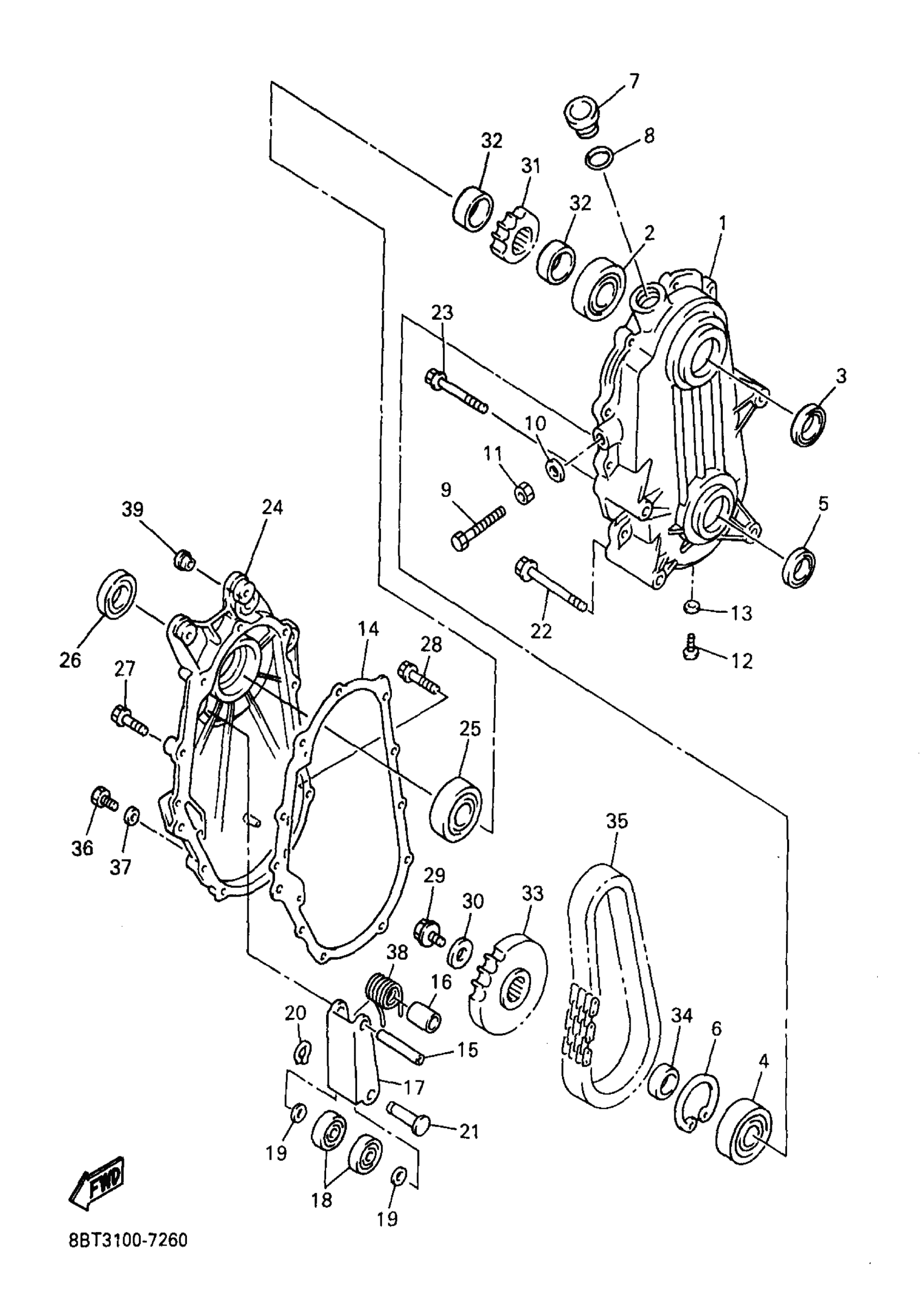

Yamaha MM800A (MOUNTAIN MAX 800) 8BT3 1997 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
89A-47541-01-00
Unavailable
2
BEARING
93306-00707-00
Unavailable
3
OIL SEAL (36R)
93102-35318-00
$25.99
4
BEARING(3RR)
93306-30560-00
Unavailable
5
OIL SEAL (25X44X6-810)
93102-25081-00
$5.60
6
CIRCLIP(MF1)
99009-62500-00
$8.49
7
PLUG, OIL
3FV-15363-00-00
Unavailable
8
O-RING(1KT)
93210-27778-00
$8.49
9
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
10
WASHER SEAL 256111730200
90210-10004-00
$4.77
11
NUT (3WP1)
95317-10700-00
$8.49
12
SCREW, BINDING
98907-06008-00
$8.49
13
WASHER, SEAL (7G5)
90210-06006-00
$9.49
14
GASKET
89A-47592-00-00
Unavailable
15
COLLAR
90387-061Y2-00
Unavailable
16
COLLAR(2UJ)
90387-100V6-00
Unavailable
17
HOLDER
89A-47613-00-00
Unavailable
18
BRG.
93306-30101-00
Unavailable
19
WASHER(6TA)
92907-12600-00
Unavailable
20
CIRCLIP(10Y)
99009-12400-00
Unavailable
21
PIN
90249-12218-00
Unavailable
22
BOLT, FLANGE(JF2)
95817-08080-00
Unavailable
23
BOLT, FLANGE(8BT)
95817-08095-00
Unavailable
24
CAP, HOUSING
8BU-47543-00-00
Unavailable
25
BEARING
93306-27801-00
Unavailable
26
OIL SEAL (28X47X7-102)
93102-28022-00
Unavailable
27
BOLT, FLANGE
95817-06030-00
Unavailable
28
BOLT, FLANGE
95817-06055-00
Unavailable
29
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
30
WASHER, PLATE(8BV)
90201-100S7-00
Unavailable
31
SPROCKET, CHAIN DRIVE (20T)
8BU-17682-00-00
Unavailable
31
SPROCKET, CHAIN DRIVE (21T)
8BU-17682-10-00
Unavailable
31
SPROCKET, CHAIN DRIVE (22T)
8BU-17682-20-00
Unavailable
31
SPROCKET, CHAIN DRIVE (23T)
8BU-17682-30-00
Unavailable
31
SPROCKET, CHAIN DRIVE (24T)
8BU-17682-40-00
Unavailable
32
COLLAR
90387-3401H-00
Unavailable
33
SPROCKET, CHAIN DRIVEN (33T)
8BU-47587-30-00
Unavailable
33
SPROCKET, CHAIN DRIVEN (35T)
8BU-47587-50-00
Unavailable
33
SPROCKET, CHAIN DRIVEN (37T)
8BU-47587-70-00
Unavailable
33
SPROCKET, CHAIN DRIVEN (39T)
8BU-47587-90-00
Unavailable
34
COLLAR (2K7)
90387-25663-00
Unavailable
35
CHAIN (66L)
94890-07066-00
Unavailable
35
CHAIN (68L)
94890-07068-00
Unavailable
35
CHAIN (70L)
94890-07070-00
Unavailable
36
BOLT(3JP)
97017-06010-00
Unavailable
37
WASHER, SEAL (7G5)
90210-06006-00
$9.49
38
SPRING, TORSION
90508-343A2-00
Unavailable
39
NUT(8CJ)
90179-10679-00
Unavailable
