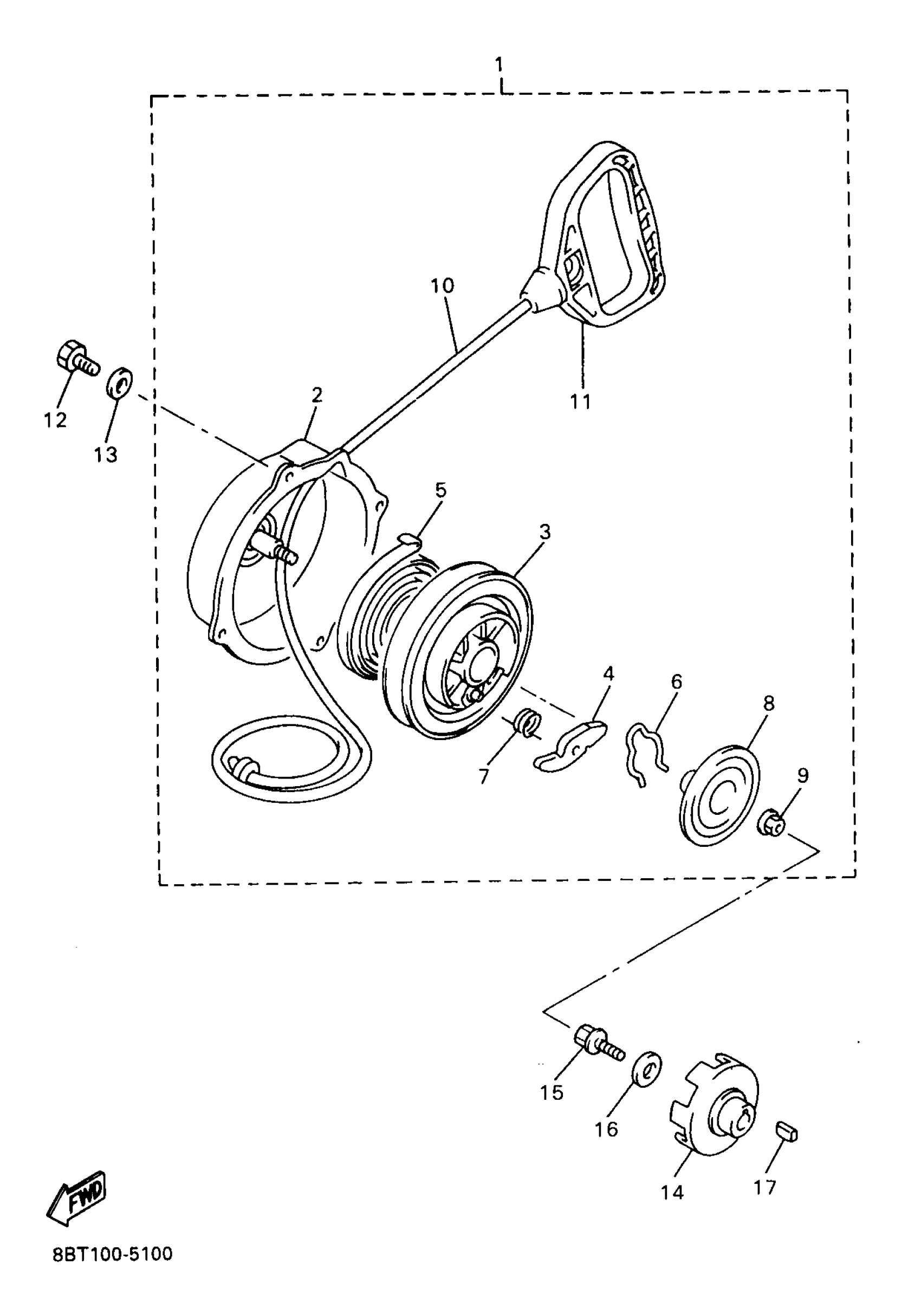

Yamaha MM800A (MOUNTAIN MAX 800) 8BT3 1997 STARTER Diagram

#

Description
Price

1

STARTER ASY

89A-15710-02-00

Unavailable

2

CASE, STARTER

89A-15711-02-00

Unavailable

3

DRUM, SHEAVE

24W-15714-00-00

$57.99

4

PAWL, DRIVE

21V-15741-00-00

$23.99

5

SPRING, STARTER

21V-15713-00-00

$25.99

6

SPRING, DRIVE PLATE

21V-15715-00-00

$30.99

7

SPRING

21V-15767-00-00

$7.99

8

PLATE, DRIVE

21V-15716-00-00

$27.99

9

NUT, FLANGE(7NB)

95780-06500-00

$2.60

10

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

11

HANDLE, STARTER

8F3-15755-00-00

$29.99

12

BOLT(8CP)

97017-06014-00

$8.49

13

WASHER(6TA)

92907-06600-00

$2.72

14

PULLEY, STARTER

89A-15723-01-00

Unavailable

15

BOLT(8BT)

97017-10020-00

$8.49

16

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

17

KEY, WOOD RUFF (324)

90280-05014-00

Unavailable
