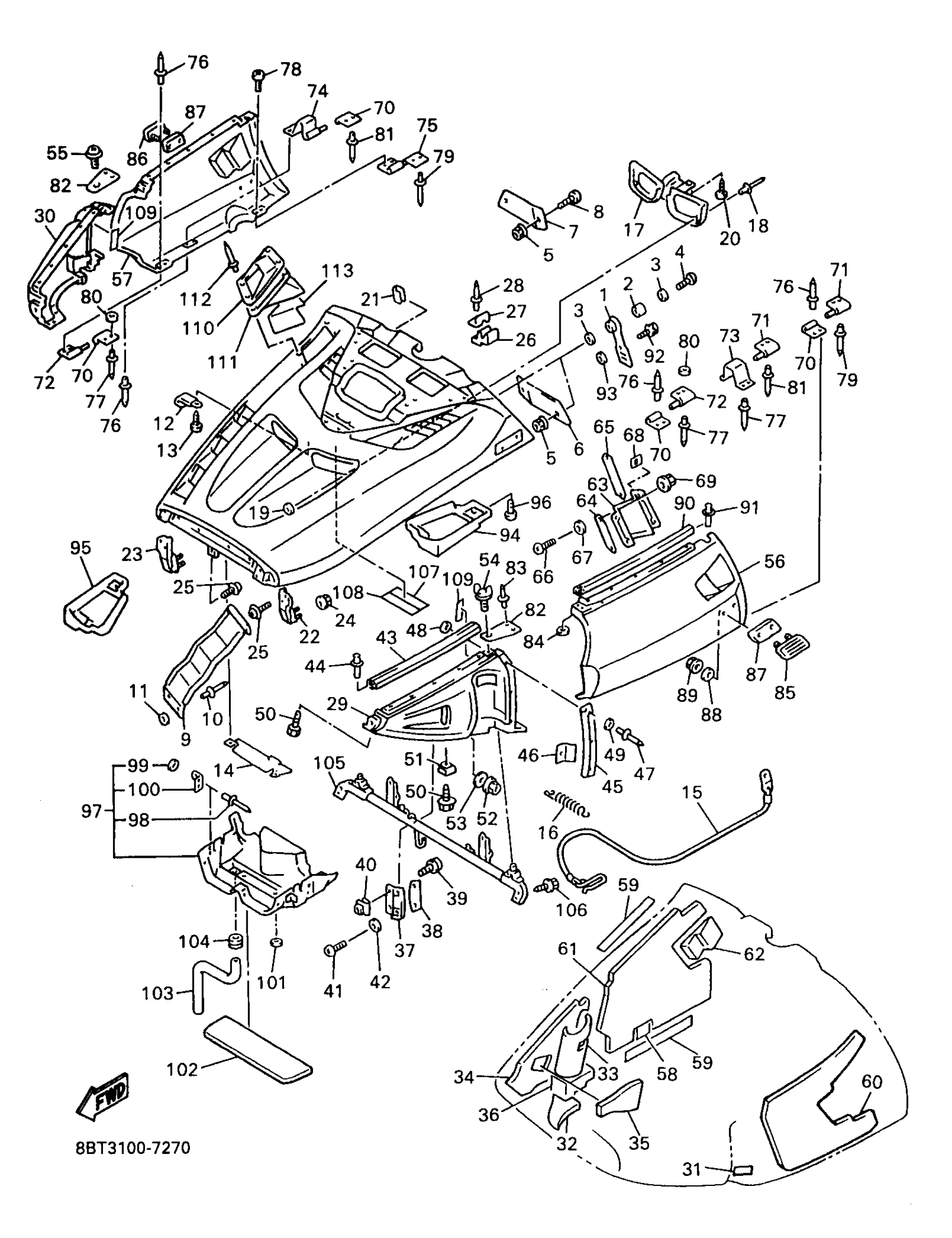

Yamaha MM800A (MOUNTAIN MAX 800) 8BT3 1997 SHROUD Diagram
#
1
BODY, LATCH 1
8V0-77171-00-00
$21.99
2
COLLAR (420)
90387-06241-00
$8.49
3
WASHER, PLATE
90201-06020-00
$9.49
4
SCREW, BINDING
98907-06030-00
$8.49
5
NUT, FLANGE(4MV)
95707-06500-00
$1.23
6
PROTECTOR 5
89A-77555-00-00
Unavailable
7
PROTECTOR 6
89A-77556-00-00
Unavailable
8
SCREW, BINDING
98907-06014-00
$7.99
9
PROTECTOR 7
89A-77557-00-00
Unavailable
10
RIVET, BLIND (8M6)
90267-48051-00
$1.49
11
WASHER, PLAIN (3GDF)
90201-051K1-00
$8.49
12
CLAMP(51Y)
90465-08277-00
Unavailable
13
SCREW, TRUSS TAP.
97707-50014-00
$8.49
14
PLATE, 1
89A-77577-00-00
Unavailable
15
STOPPER, SHROUD
89A-77118-00-00
Unavailable
16
CLAMP, ROD
89A-77159-00-00
Unavailable
17
COVER, 3
89A-77563-00-00
Unavailable
18
RIVET, BLIND (8M6)
90267-48051-00
$1.49
19
WASHER, PLAIN (3GDF)
90201-051K1-00
$8.49
20
SCREW, TRUSS TAP.
97707-50014-00
$8.49
21
TRIM 6
89A-77226-00-00
Unavailable
22
HINGE ASSY
89A-77140-00-00
Unavailable
23
HINGE ASSY 2
89A-7714A-00-00
Unavailable
24
NUT, FLANGE(4MV)
95707-06500-00
$1.23
25
SCREW, WITH WASHER
90159-06108-00
Unavailable
26
STOPPER
8V0-77188-00-00
Unavailable
27
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
28
RIVET, BLIND (J10)
90267-40077-00
Unavailable
29
HOOD 1
8BU-21982-00-00
Unavailable
30
HOOD 2
8BU-21983-00-00
Unavailable
31
TAPE 2
89A-7717F-00-00
Unavailable
32
DAMPER, NOISE 12
8AX-77272-00-00
Unavailable
33
DAMPER, NOISE 13
8AX-77273-00-00
Unavailable
34
DAMPER, NOISE 11
8AX-77271-00-00
Unavailable
35
DAMPER, NOISE 14
8AX-77274-00-00
Unavailable
36
DAMPER, NOISE 16
8AX-77276-00-00
Unavailable
37
PROTECTOR 2
89A-77552-00-00
Unavailable
38
PLATE, BACK UP
89A-77527-00-00
Unavailable
39
SCREW, PAN HEAD
98507-05014-00
Unavailable
40
NUT
89A-77144-00-00
Unavailable
41
SCREW, PAN
98507-06014-00
Unavailable
42
WASHER(6TA)
92907-06600-00
Unavailable
43
BUSH,RUBBER 1
8BU-77515-00-00
Unavailable
44
RIVET(81E)
90269-05055-00
Unavailable
45
TRIM 1
89A-2196T-00-00
Unavailable
46
TRIM 4
89A-77168-01-00
Unavailable
47
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
48
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
49
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
50
BOLT, WITH WASHER
90119-06226-00
Unavailable
51
NUT, SPRING (26H)
90183-06023-00
Unavailable
52
NUT(6TA)
95317-06600-00
Unavailable
53
WASHER, PLATE
90201-06020-00
$9.49
54
BOLT, WIND SHIELD
89A-77212-00-00
Unavailable
55
SCREW, WITH WASHER (34K)
90159-06078-00
Unavailable
56
HOOD 3
8BU-2197H-00-00
Unavailable
57
HOOD 4
8BU-2198H-00-00
Unavailable
58
TAPE 1
89A-7717E-00-00
Unavailable
59
TAPE 1
8V0-7717E-01-00
Unavailable
60
LINING, SHROUD 2
89A-77262-00-00
Unavailable
61
DAMPER, NOISE 15
89A-77275-00-00
Unavailable
62
DAMPER, NOISE 19
8AX-77279-00-00
Unavailable
63
PROTECTOR 3
89A-77553-00-00
Unavailable
64
STOPPER, 1
89A-77521-00-00
Unavailable
65
STOPPER 2
89A-77522-00-00
Unavailable
66
SCREW, PAN
98507-06014-00
Unavailable
67
WASHER(6TA)
92907-06600-00
Unavailable
68
NUT SPRING 116283170100
90183-04005-00
Unavailable
69
NUT, FLANGE(4MV)
95707-06500-00
$1.23
70
BRACKET, 1
88F-2194X-00-00
Unavailable
71
BRACKET 2
88R-2195X-00-00
Unavailable
72
BRACKET 2
88R-2195X-00-00
Unavailable
73
HINGE 1
89A-2197J-00-00
Unavailable
74
HINGE 2
89A-2197K-00-00
Unavailable
75
HINGE 3
89A-2197L-00-00
Unavailable
76
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
77
RIVET, BLIND
90267-48018-00
Unavailable
78
SCREW, BINDING
98907-05012-00
Unavailable
79
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
80
WASHER, PLATE
90201-04027-00
Unavailable
81
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
82
STOPPER
89A-77385-00-00
Unavailable
83
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
84
WASHER, PLATE
90201-04027-00
Unavailable
85
PROTECTOR, SIDE
89A-77561-00-00
Unavailable
86
PROTECTOR, SIDE
89A-77562-00-00
Unavailable
87
SPACER, BUMPER
89A-77529-00-00
Unavailable
88
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
89
NUT, NYLON
95707-05300-00
Unavailable
90
BUSH,RUBBER 2
8BU-77516-00-00
Unavailable
91
RIVET(81E)
90269-05055-00
Unavailable
92
HOLDER, LATCH
8V0-77175-00-00
Unavailable
93
PLATE
4U5-2176E-00-00
Unavailable
94
PLATE 1
89A-77185-00-00
Unavailable
95
PLATE 2
89A-77186-00-00
Unavailable
96
SCREW, TRUSS TAP.
97707-50014-00
$8.49
97
GUIDE 1
89A-77123-01-00
Unavailable
98
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
99
WASHER
90201-04015-00
Unavailable
100
. STAY 3
89A-77127-00-00
Unavailable
101
WASHER, SPECIAL
89A-77116-00-00
Unavailable
102
LINING, SHROUD 4
8AX-77264-00-00
Unavailable
103
HOSE 2
89A-1243E-00-00
Unavailable
104
GROMMET (20G)
90480-23345-00
Unavailable
105
STAY, RADIATOR
89A-12464-00-00
Unavailable
106
BOLT, FLANGE
95817-08012-00
Unavailable
107
LABEL, CAUTION
8BU-1417E-00-00
Unavailable
108
LABEL, 1
8BT-47578-00-00
Unavailable
109
DAMPER, NOISE 18
8BU-77278-00-00
Unavailable
110
LOUVER 4
8BU-77134-00-00
Unavailable
111
DUCT
8BU-77194-00-00
Unavailable
112
RIVET(8AB)
90269-05073-00
Unavailable
113
PROTECTOR
8BU-77373-00-00
Unavailable
