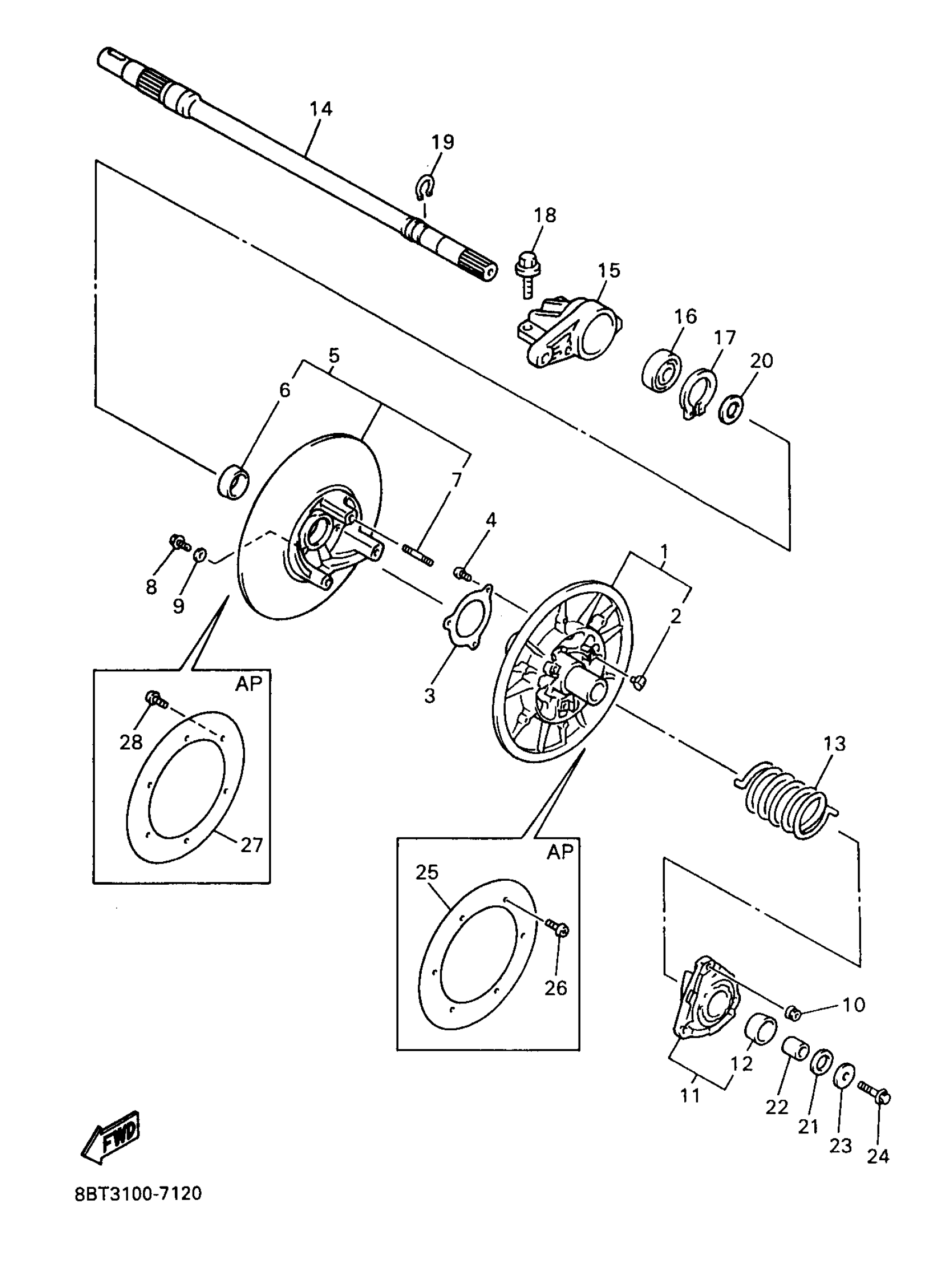

Yamaha MM800A (MOUNTAIN MAX 800) 8BT3 1997 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

8BU-17660-20-00

Unavailable

2

SHOE, RAMP

8AV-17688-10-00

$32.99

3

STOPPER, HOLDER

8BV-17656-00-00

$22.99

4

SCREW, BINDING

98907-06016-00

$9.49

5

SECONDARY SLIDING SHEAVE

8BU-17670-20-00

Unavailable

6

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

7

BOLT, STUD 3

95617-08630-00

$4.99

8

BOLT, WASHER BASED(8BN)

90105-06734-00

$3.50

9

WASHER, PLATE (22K)

90201-061H1-00

$4.72

9

WASHER, PLATE (371)

90201-06431-00

$5.60

10

NUT(8BN)

90179-08655-00

$10.49

11

SEAT SPRING SET

8BV-17604-11-00

Unavailable

11

SEAT SPRING SET

8BV-17604-31-00

$159.99

11

SEAT SPRING SET

8BV-17604-50-00

Unavailable

11

SEAT SPRING SET

8BV-17604-91-00

Unavailable

11

SEAT SPRING SET

8BV-17604-71-00

Unavailable

12

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

13

SPRING, TORSION(8BF)

90508-500B1-00

Unavailable

13

SPRING, TORSION(8AB)

90508-536A9-00

Unavailable

13

SPRING, TORSION(8BN)

90508-556A2-00

Unavailable

13

SPRING, TORSION(8BT)

90508-556A7-00

Unavailable

14

SHAFT, SECONDARY

8BU-17681-11-00

Unavailable

15

HOUSING, BEARING

8BU-47631-00-00

Unavailable

16

BEARING

93306-30567-00

Unavailable

17

CIRCLIP(MF1)

99009-62500-00

Unavailable

18

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

19

CIRCLIP (256)

93410-25017-00

Unavailable

20

WASHER, PLATE (888)

90201-25526-00

Unavailable

20

WASHER, PLATE (888)

90201-25527-00

Unavailable

21

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

21

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

21

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

22

COLLAR

90387-1405J-00

Unavailable

23

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

24

BOLT, WASHER BASED

90105-10741-00

Unavailable

25

PLATE 1

8CM-17665-00-00

Unavailable

26

GASKET, EXHAUST

98507-05008-00

Unavailable

27

PLATE 2

8CM-17675-00-00

Unavailable

28

GASKET, EXHAUST

98507-05008-00

Unavailable
