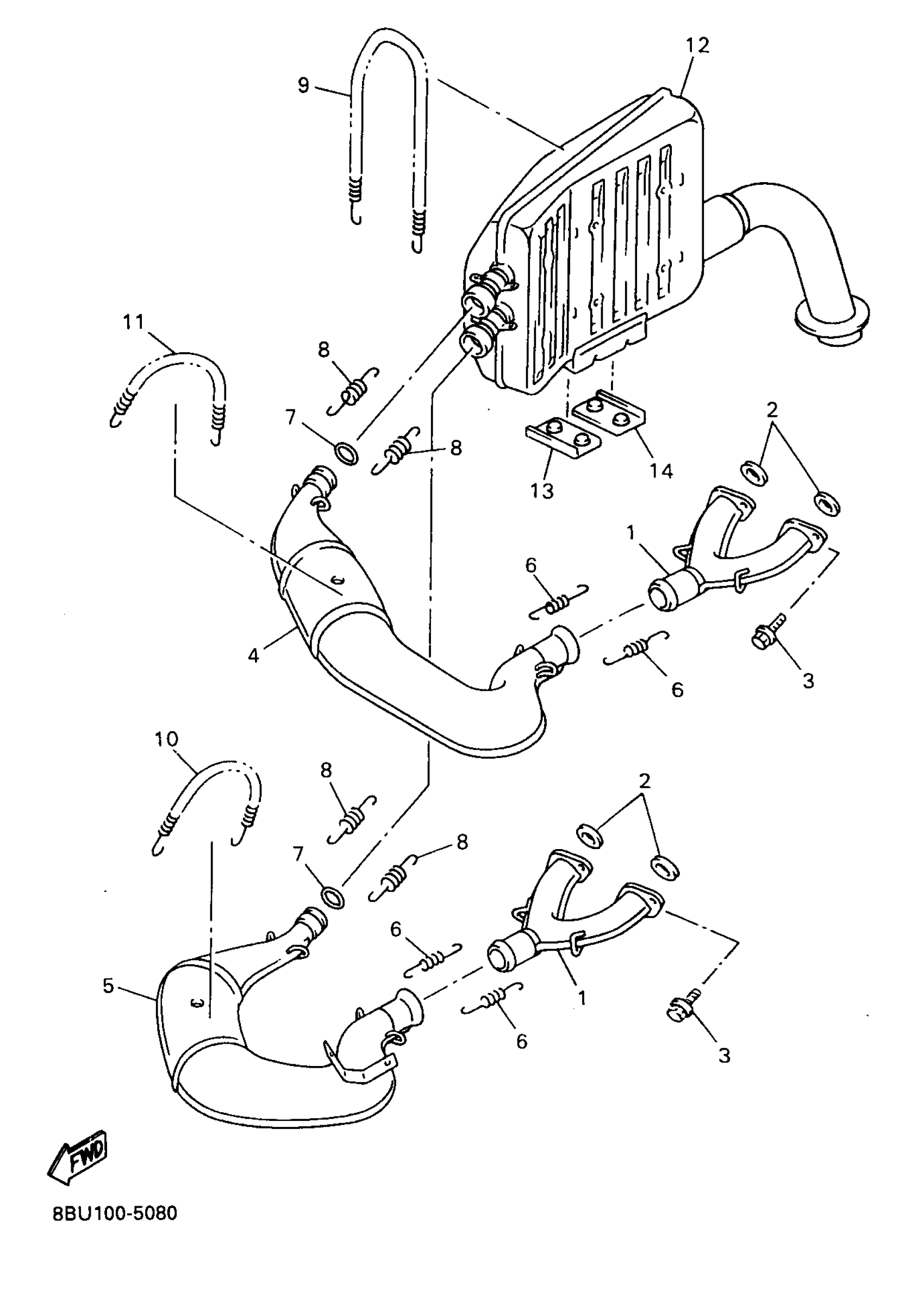

Yamaha MM800A (MOUNTAIN MAX 800) 8BT3 1997 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY 1

8BU-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

3

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

4

EXHAUST PIPE ASY R

8BU-14620-00-00

Unavailable

5

EXHAUST PIPE ASY

8BU-14630-00-00

Unavailable

6

SPRING, TENSION (8R7)

90506-20272-00

$11.49

7

RING

8F2-14633-00-00

Unavailable

8

SPRING, TENSION (8M6)

90506-20093-00

$9.49

9

SPRING, TENSION(83R)

90507-16046-00

Unavailable

10

SPRING, TENSION (8BU1)

90506-16494-00

$7.49

11

SPRING, TENSION

90506-16386-00

Unavailable

12

SECOND SILENCER, MUFFLER

89A-14640-00-00

Unavailable

13

PROTECTOR, MUFFLER 2

89A-14728-00-00

Unavailable

14

PROTECTOR, MUFFLER 2

8A5-14728-02-00

Unavailable
