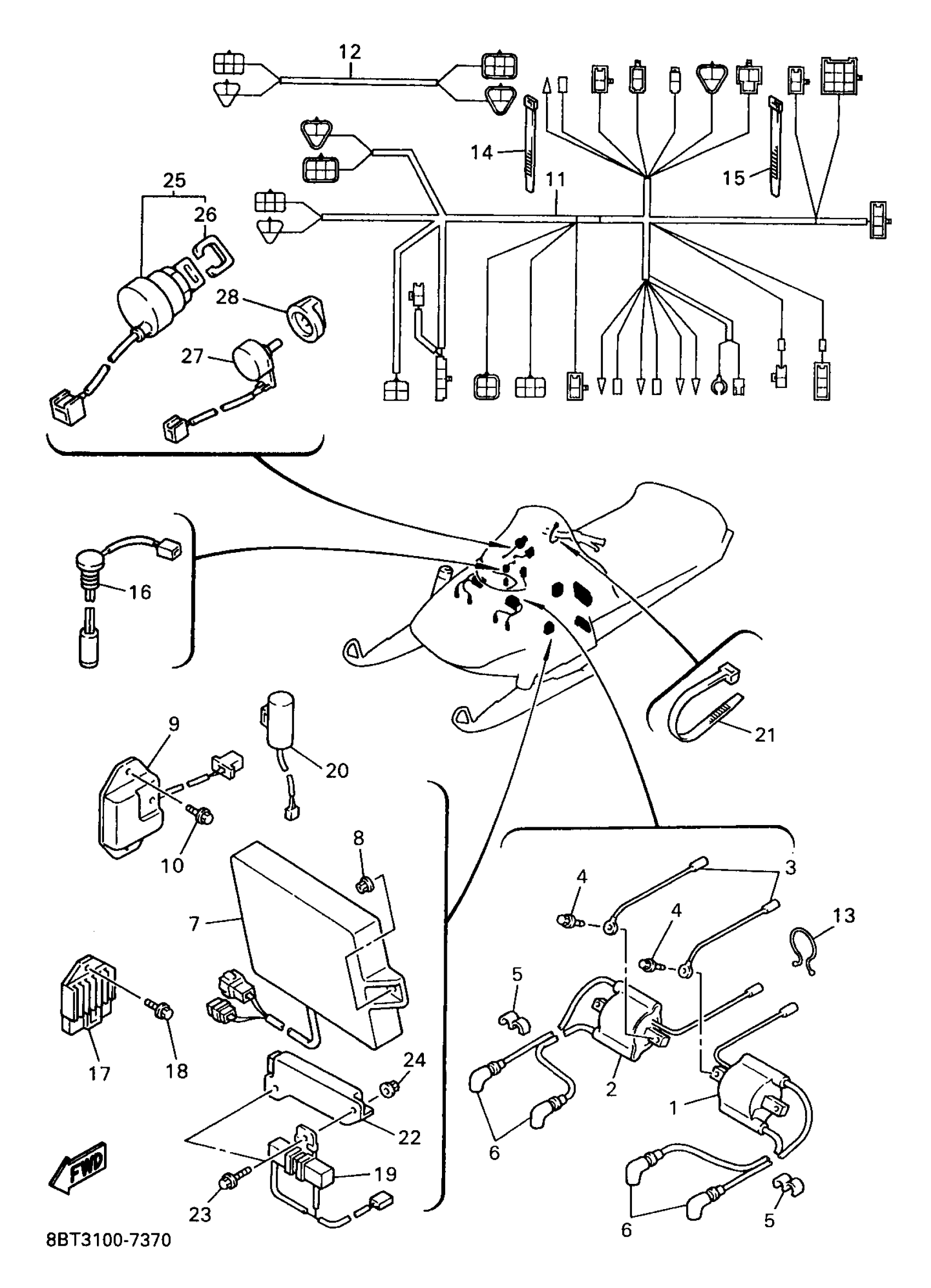

Yamaha MM800A (MOUNTAIN MAX 800) 8BT3 1997 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

85T-82310-06-00

$79.99

2

IGNITION COIL ASSY

89A-82320-09-00

Unavailable

3

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

4

BOLT, FLANGE(JK3)

95880-06020-00

$4.19

5

CLAMP, CORD

861-82361-00-00

Unavailable

6

PLUG CAP ASSY

8DG-82370-00-00

$49.99

7

C. D. I. UNIT ASSEMBLY

8BU-85540-00-00

Unavailable

8

NUT, FLANGE(4MV)

95707-06500-00

$1.23

9

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

10

BOLT, FLANGE

95817-06016-00

$2.75

11

WIRE HARNESS ASSEMBLY

8BU-82590-00-00

Unavailable

12

WIRE HARNESS ASSEMBLY 2

8BU-82580-00-00

Unavailable

13

CLAMP (3Y2)

90464-16039-00

$9.49

14

BAND

341-26397-01-00

Unavailable

15

BAND, SWITCH CORD

25G-83936-01-00

$4.78

16

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

Unavailable

17

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

18

BOLT, FLANGE

95817-06016-00

$2.75

19

RESISTOR ASY

89M-85370-00-00

Unavailable

20

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

21

BAND, SWITCH CORD

25G-83936-01-00

$4.78

22

RECTIFIER & REGULAT0R ASSY

1JK-81960-A1-00

Unavailable

23

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

24

NUT,SELF-LOCKING

95607-06200-00

Unavailable

25

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

26

CAP, KEY

526-82579-00-00

Unavailable

27

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

28

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable
