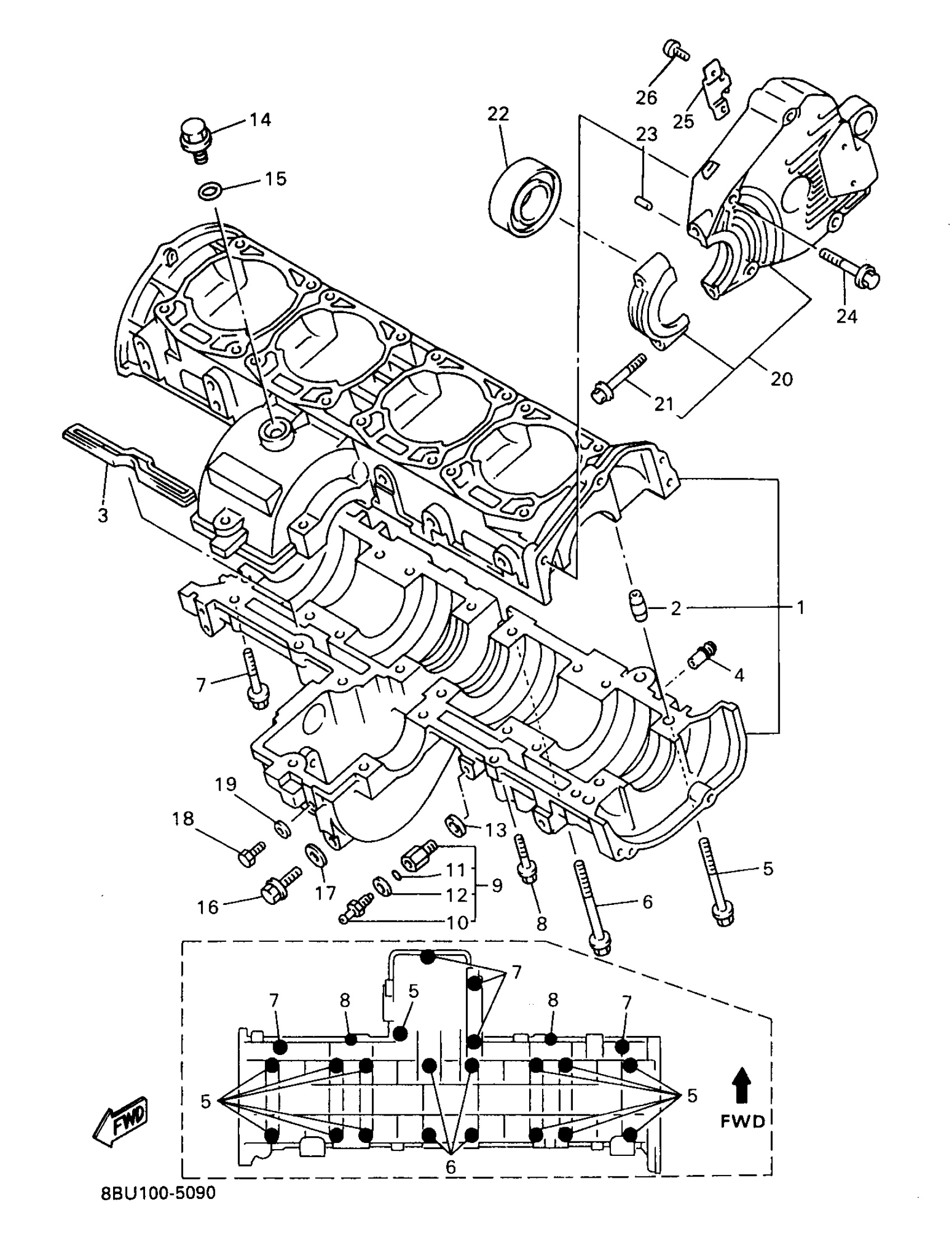

Yamaha MM800A (MOUNTAIN MAX 800) 8BT3 1997 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSEMBLY
8BU-15100-00-00
Unavailable
2
PIN, DOWEL
99530-12016-00
$4.89
3
PLATE
89A-15113-00-00
Unavailable
4
JOINT, BREATHER
J38-11116-00-00
$3.80
5
BOLT, FLANGE(8BN)
95817-08085-00
$4.08
6
BOLT, FLANGE(8BT)
95817-08095-00
$4.24
7
BOLT, FLANGE
95817-08050-00
$2.44
8
BOLT, FLANGE
95817-06035-00
$7.49
9
DRAIN COCK ASSEMBLY.
89A-12560-00-00
Unavailable
10
. COCK, DRAIN
89A-12478-00-00
Unavailable
11
. O-RING
93210-041A6-00
Unavailable
12
WASHER(6TA)
92907-10600-00
$8.49
13
GASKET (5R6)
90430-10171-00
$3.18
14
PLUG, STRAIGHT SCREW
90340-14119-00
Unavailable
15
O-RING (26H)
93210-14579-00
$7.49
16
BOLT, SMALL FLANGE
95027-10016-00
Unavailable
17
GASKET (5R6)
90430-10171-00
$3.18
18
BOLT(3JP)
97017-06010-00
Unavailable
19
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
20
CRANKCASE COVER ASSEMBLY 1
89A-15410-02-00
Unavailable
21
BOLT, FLANGE
95817-08050-00
$2.44
22
BEARING(89A)
93306-20640-00
Unavailable
23
PIN STRAIGHT 257185520000
90250-06013-00
Unavailable
24
BOLT, FLANGE
95817-08055-00
Unavailable
25
CLAMP 2
89A-15484-00-00
Unavailable
26
SCREW, PAN
98517-05012-00
Unavailable
