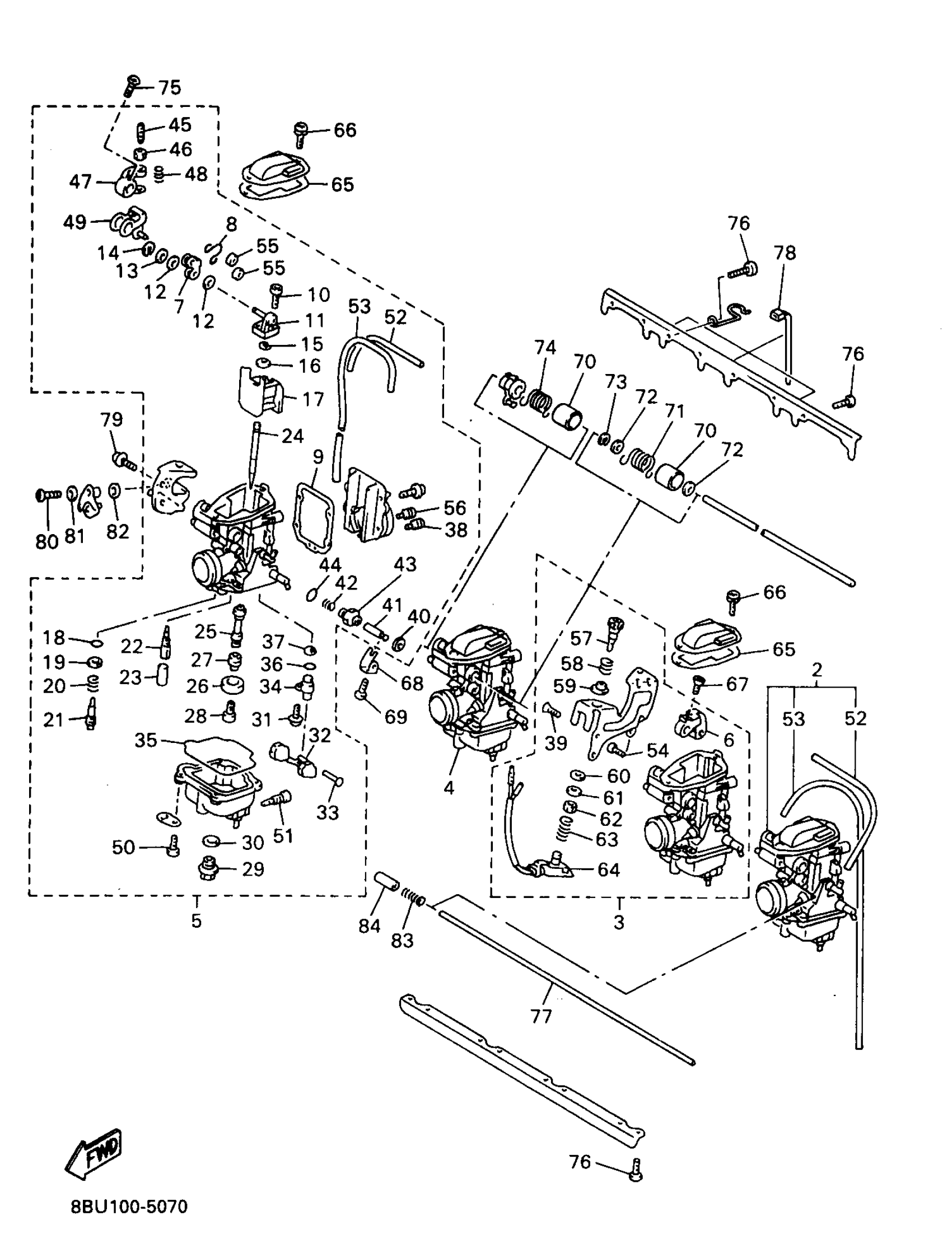

Yamaha MM800A (MOUNTAIN MAX 800) 8BT3 1997 CARBURETOR Diagram
#
2
. CARBURETOR ASSEMBLY 1
8BU-14901-00-00
Unavailable
3
. CARBURETOR ASSEMBLY 2
8BU-14902-00-00
Unavailable
4
. CARBURETOR ASSEMBLY 3
8BU-14903-00-00
Unavailable
5
. CARBURETOR ASSEMBLY 4
8BU-14904-00-00
Unavailable
6
BRACKET 2
89A-14292-00-00
Unavailable
7
PLATE
89A-14243-00-00
Unavailable
8
CLIP
89A-14137-00-00
$3.33
9
GASKET
89A-14199-00-00
$31.99
10
BOLT,SOCKET
91317-03012-00
$0.90
11
CONNECTOR
89A-14188-00-00
$34.99
12
GASKET
3GF-14126-00-00
$0.47
13
GASKET
620-14198-00-00
$2.65
14
CLIP
3MA-14937-00-00
Unavailable
15
CLIP
3FA-14137-00-00
$7.99
16
. WASHER, NEEDLE
2H0-14235-00-00
Unavailable
17
. VALVE, THROTTLE 1
89A-14112-10-00
Unavailable
18
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
19
WASHER, PILOT SCREW
3H1-14962-00-00
Unavailable
20
SPRING
5K7-14134-00-00
Unavailable
21
SCREW, ADJ.
89A-14565-00-00
Unavailable
22
JET, PILOT (# 47.5)
3H1-14142-47-00
Unavailable
22
JET, PILOT (# 55)
3H1-14142-55-00
Unavailable
23
PIPE
89A-14996-00-00
Unavailable
24
.. NEEDLE
8BU-14116-20-00
Unavailable
25
. NOZZLE, MAIN
89A-14141-54-00
Unavailable
26
WASHER, MAIN JET
1LX-14153-00-00
Unavailable
27
RING
89A-14194-00-00
Unavailable
28
JET, MAIN (#131.3)
3G2-1423E-52-00
Unavailable
28
JET, MAIN(#133.8)
3G2-1423E-53-00
Unavailable
28
JET, MAIN (#136.3)
3G2-1423E-54-00
Unavailable
28
JET, MAIN (#138.8)
3G2-1423E-55-00
Unavailable
28
JET, MAIN (#141.3)
3G2-1423E-56-00
Unavailable
28
JET MAIN (#143.8)
3G2-1423E-57-00
Unavailable
28
JET, MAIN (#146.3)
3G2-1423E-58-00
Unavailable
28
JET, MAIN #148.8
3G2-1423E-59-00
Unavailable
29
PLUG, SCREW
500-14115-00-00
Unavailable
30
O-RING (541)
558-14147-00-00
Unavailable
31
SCREW
2LN-14565-00-00
Unavailable
32
FLOAT
1UY-14185-00-00
Unavailable
33
PIN, FLOAT
537-14186-00-00
Unavailable
34
NEEDLE VALVE ASSY
1AE-14190-13-00
Unavailable
35
O-RING
89A-14147-00-00
Unavailable
36
O-RING
8F2-14147-00-00
Unavailable
37
NET, FILTER
1J7-14994-00-00
Unavailable
38
.. PILOT JET, AIR
239-14172-00-00
Unavailable
39
SCREW,FLAT
98707-05008-00
Unavailable
40
. COVER, PLUNGER CAP
302-14173-00-00
Unavailable
41
. PLUNGER, STARTER
4G0-14171-00-00
Unavailable
42
SPRING, PLUNGER
2N3-14135-00-00
Unavailable
43
. CAP, PLUNGER
1FN-14174-00-00
Unavailable
44
O-RING
1AE-14147-00-00
Unavailable
45
SCREW
89A-14216-00-00
Unavailable
46
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
47
. LEVER
89A-14276-00-00
Unavailable
48
SPRING
89A-14286-00-00
Unavailable
49
. LEVER, STARTER
89A-14905-00-00
Unavailable
50
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
51
PLUG, DRAIN
12R-14191-00-00
Unavailable
52
HOSE
89A-14987-00-00
Unavailable
53
HOSE
8AX-14987-00-00
Unavailable
54
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
55
RING
3MA-14918-00-00
Unavailable
56
JET, AIR (#1.0)
239-14172-10-00
Unavailable
57
SCREW,THROTTLE
80L-14122-00-00
Unavailable
58
SPRING
8X0-14500-00-00
Unavailable
59
RING
8X0-14184-00-00
Unavailable
60
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
61
. WASHER
1UF-14952-00-00
Unavailable
62
NUT
89A-14594-00-00
Unavailable
63
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
64
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
65
GASKET
89A-14198-00-00
Unavailable
66
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
67
SCREW,FLAT
98707-04014-00
Unavailable
68
. LEVER COMP. 1
89A-14208-00-00
Unavailable
69
SCREW
11H-14991-09-00
Unavailable
70
. COLLAR
89A-14264-00-00
Unavailable
71
SPRING
89A-14589-00-00
Unavailable
72
. WASHER
3H1-14227-00-00
Unavailable
73
CLIP
3LD-14919-00-00
Unavailable
74
SPRING
89A-14275-00-00
Unavailable
75
SCREW, PAN HEAD
98517-04016-00
Unavailable
76
SCREW, PAN
98517-05012-00
Unavailable
77
SHAFT, STARTER LEVER
89A-14978-00-00
Unavailable
78
CLIP, PIPE
35H-14139-00-00
Unavailable
79
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
80
. PLUG, SCREW
22F-14115-00-00
Unavailable
81
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
82
. WASHER
3FV-14962-00-00
Unavailable
83
. SPRING, PLUNGER
1AE-14135-00-00
Unavailable
84
. CAP
89A-14118-00-00
Unavailable
