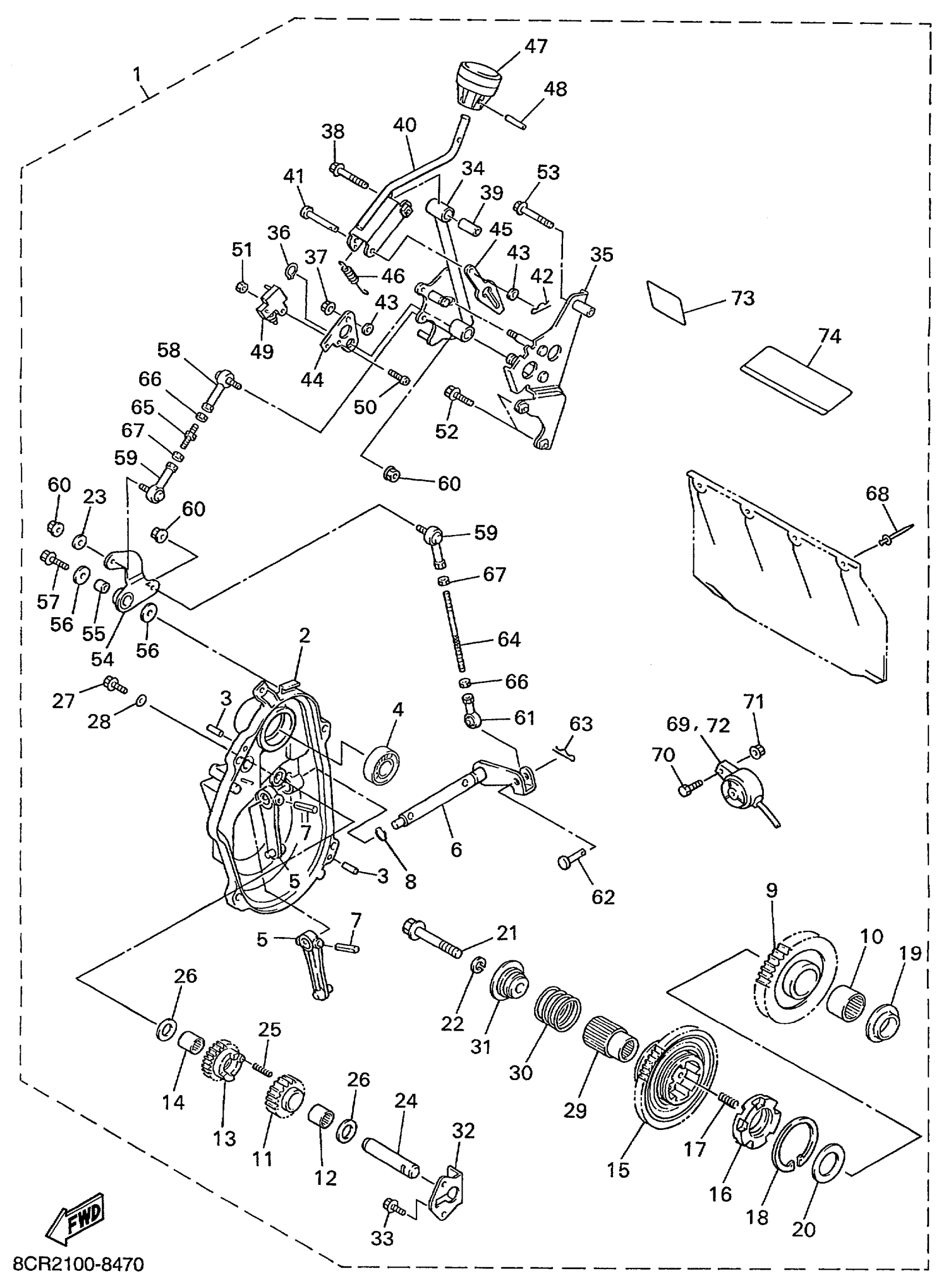

Yamaha MM700PC (MOUNTAIN MAX 700) 8CP3 1999 ALTERNATE DRIVE 1 Diagram

#

Description
Price

1

REVERSE GEAR KIT

8CR-47590-01-00

Unavailable

2

. CAP, HOUSING

8CW-47543-02-00

Unavailable

3

PIN, DOWEL (168)

93606-20044-00

$2.12

4

BEARING(4ED)

93306-20468-00

$37.95

5

FORK, SHIFT 1

8ER-18511-00-00

$76.75

6

. SHAFT

8CW-18197-00-00

Unavailable

7

PIN, SPRING(8DA)

91609-50022-00

$6.78

8

O-RING (328)

93210-12131-00

$6.78

9

. SPROCKET, CHAIN DRIVEN (39T)

8CW-47587-90-00

Unavailable

10

BEARING, CYLINDRICAL(8DA)

93317-33179-00

$43.08

11

SPROCKET, DRIVE

8DM-17692-00-00

Unavailable

12

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

13

REVERSE GEAR SUB-ASSY 1 (RGEAR

8CW-W1714-00-00

$251.37

14

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

15

GEAR, REVERSE WHEEL 1

8CW-17243-00-00

$304.40

16

DOG, TRANSMISSION SHIFT

8CW-17492-00-00

$193.49

17

SPRING, COMPRESSION(8DA)

90501-066J5-00

$1.75

18

CIRCLIP(8DA)

93440-39175-00

$19.00

19

COLLAR(8DA)

90387-2008G-00

$23.71

20

WASHER, PLATE(8DA)

90201-320S3-00

$7.34

21

BOLT, FLANGE(7LU)

95817-10070-00

$5.11

22

WASHER(6TA)

92907-10100-00

$6.18

23

WASHER, PLATE (8K2)

90201-06778-00

$3.69

24

SHAFT, 1

8CW-1761A-00-00

$58.02

25

SPRING COMPRESSION278185450000

90501-06022-00

$6.17

26

WASHER PLATE (3L6)

90201-16245-00

$8.51

27

BOLT, FLANGE

95817-06016-00

$1.49

28

WASHER, SEAL (7G5)

90210-06006-00

$5.72

29

JOURNAL 1

8CW-47571-00-00

$150.66

30

. SPRING, COMPRESSION

90501-326J6-00

Unavailable

31

COLLAR

8CW-47564-01-00

$32.92

32

PLATE

8CW-47591-00-00

$11.85

33

BOLT, FLANGE

95817-06016-00

$1.49

34

. ARM, SHIFT

8CW-18112-01-00

Unavailable

35

GUIDE, PLATE STOPPER

8CW-18161-01-00

$86.05

36

CIRCLIP(10Y)

99009-12400-00

$3.08

37

NUT,SELF-LOCKING

95607-06200-00

$10.25

38

BOLT, FLANGE

95817-06035-00

$5.37

39

. COLLAR

90387-06605-00

Unavailable

40

LEVER, SHIFT 4

8CW-18152-01-00

$54.25

41

PIN, CLEVIS (2F9)

91701-06035-00

$5.72

42

CLIP (156-83525-00)

90468-10050-00

$2.31

43

WASHER(6TA)

92907-06200-00

$6.18

44

PLATE, SHIFT ARM

8CW-1811A-00-00

$7.80

45

. GUIDE, SHIFT RETURN SPRING

8CW-18153-00-00

Unavailable

46

SPRING, TENSION (36X)

90506-14343-00

$3.20

47

KNOB, SHIFT LEVER

8CL-18174-00-00

$33.98

48

PIN,SPRING (648)

91690-40022-00

$5.69

49

SWITCH

J51-82817-00-00

$121.26

50

. SCREW, BIND

98907-04016-00

Unavailable

51

NUT, U (7LY)

95617-04100-00

$6.92

52

BOLT, FLANGE

95817-06025-00

$1.46

53

BOLT, FLANGE

95817-06040-00

$4.54

54

LEVER

8CW-18198-00-00

Unavailable

55

COLLAR

90387-06197-00

$6.17

56

WASHER, PLATE(36Y)

90201-063J2-00

$4.45

57

BOLT, FLANGE

95817-06025-00

$1.46

58

JOINT, UNIVERSAL 2

J45-23845-00-00

$42.57

59

JOINT 2

88T-18157-00-00

$36.11

60

NUT,SELF-LOCKING

95607-06200-00

$10.25

61

JOINT 1

8CW-18156-00-00

Unavailable

62

PIN, COTTER (1W2)

91701-06022-00

$1.83

63

CLIP (156-83525-00)

90468-10050-00

$2.31

64

JOINT, ROD 1

88T-18116-01-00

Unavailable

65

ROD, SHIFT

26H-18115-00-00

$13.22

66

NUT, HEXAGON

95314-06600-00

$1.32

67

NUT (2H9)

90170-06228-00

$5.20

68

RIVET, BLIND

90267-48018-00

Unavailable

69

. BUZZER

8CR-83383-00-00

Unavailable

70

BOLT(3JK)

97027-05020-00

$2.48

71

NUT, FLANGE(3GM)

95707-05500-00

$6.18

72

BUZZER

8CW-83383-00-00

$141.28

73

LABEL, WARNING 3

8DY-77763-00-00

Unavailable

74

LABEL, WARNING 1

8DB-77761-00-00

$10.82
