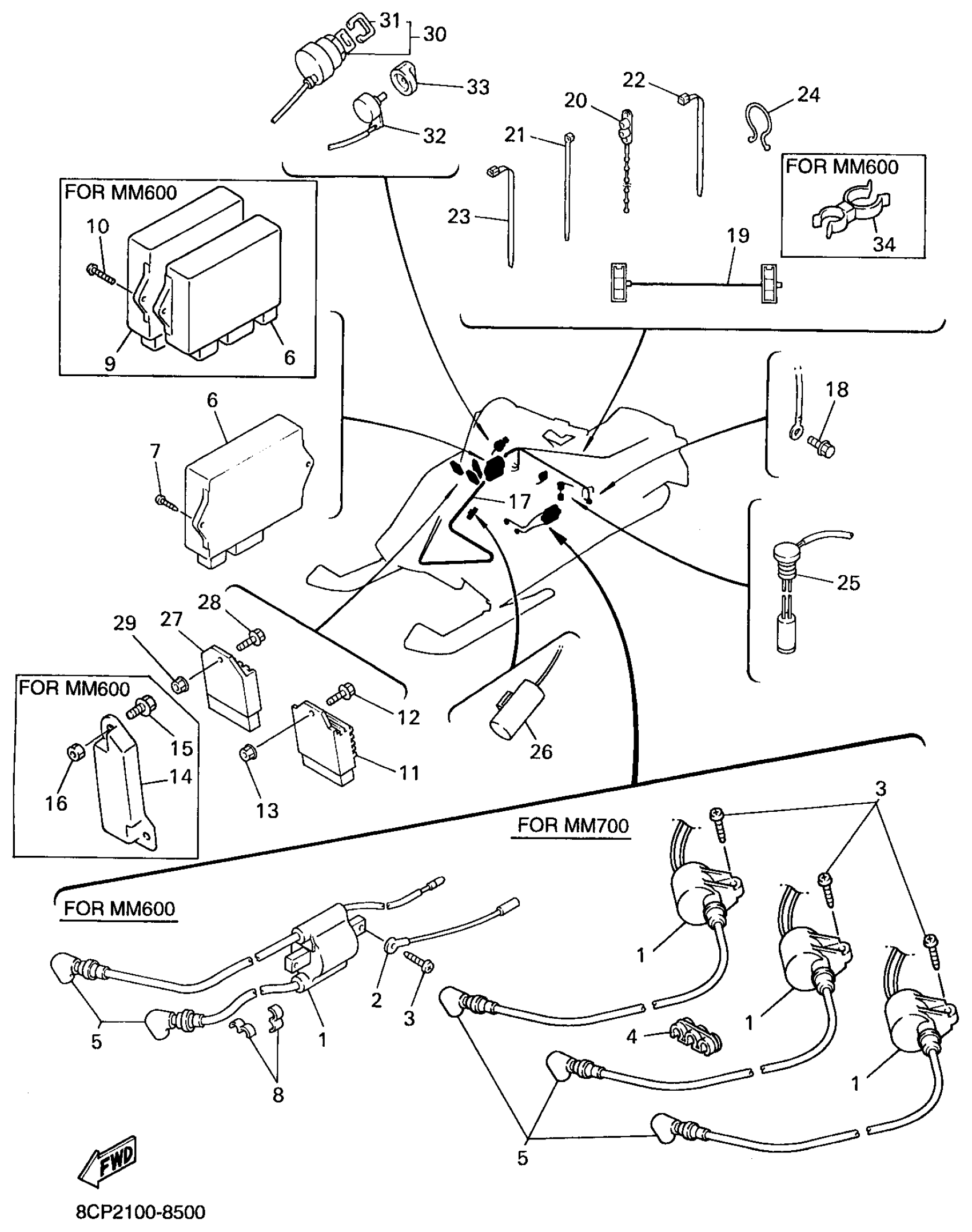

Yamaha MM700PB (MOUNTAIN MAX 700) 8CP2 1998 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8AB-82310-07-00
$85.99
1
IGNITION COIL ASSY
8DG-82310-00-00
Unavailable
2
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
3
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
4
CLAMP
90464-06247-00
Unavailable
5
PLUG CAP ASSY
8DG-82370-00-00
$49.99
6
C.D.I. UNIT ASSEMBLY
8CH-85540-00-00
Unavailable
6
C.D.I. UNIT ASSY
8CR-85540-10-00
Unavailable
7
SCREW, TAPPING(65J)
97780-60625-00
Unavailable
8
CLAMP, CORD
861-82361-00-00
Unavailable
9
ELECTRONIC CONTROL
8CS-85940-00-00
Unavailable
10
SCREW, TAPPING
97707-60135-00
Unavailable
11
RECTIFIER & REGULATOR ASSY
89A-81960-00-00
$95.99
12
BOLT, FLANGE
95817-06016-00
$2.75
13
NUT, FLANGE(4MV)
95707-06500-00
$1.23
14
RECTIFIER & REGULAT0R ASSY
1JK-81960-A1-00
Unavailable
15
BOLT(8CP)
97017-06014-00
Unavailable
16
NUT, FLANGE(4MV)
95707-06500-00
$1.23
17
WIRE HARNESS ASSEMBLY
8CH-82590-00-00
Unavailable
17
WIRE HARNESS ASSEMBLY
8CS-82590-00-00
Unavailable
18
BOLT, FLANGE
95817-06016-00
$2.75
19
WIRE, LEAD
8CR-8471G-00-00
Unavailable
20
CLAMP
90464-20031-00
Unavailable
21
CLAMP(4FM)
90464-15195-00
Unavailable
22
CLAMP(4FM)
90464-15195-00
Unavailable
23
CLAMP
90464-13077-00
Unavailable
24
CLAMP
90464-25267-00
Unavailable
25
OIL LEVEL GAUGE ASSY
3E1-85720-15-00
Unavailable
26
CONDENSER, SMOOTHING
1NL-81965-01-00
Unavailable
27
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
28
BOLT, FLANGE
95817-06016-00
$2.75
29
NUT, FLANGE(4MV)
95707-06500-00
$1.23
30
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
31
CAP, KEY
526-82579-00-00
Unavailable
32
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
33
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
34
CLAMP
90464-21256-00
Unavailable
