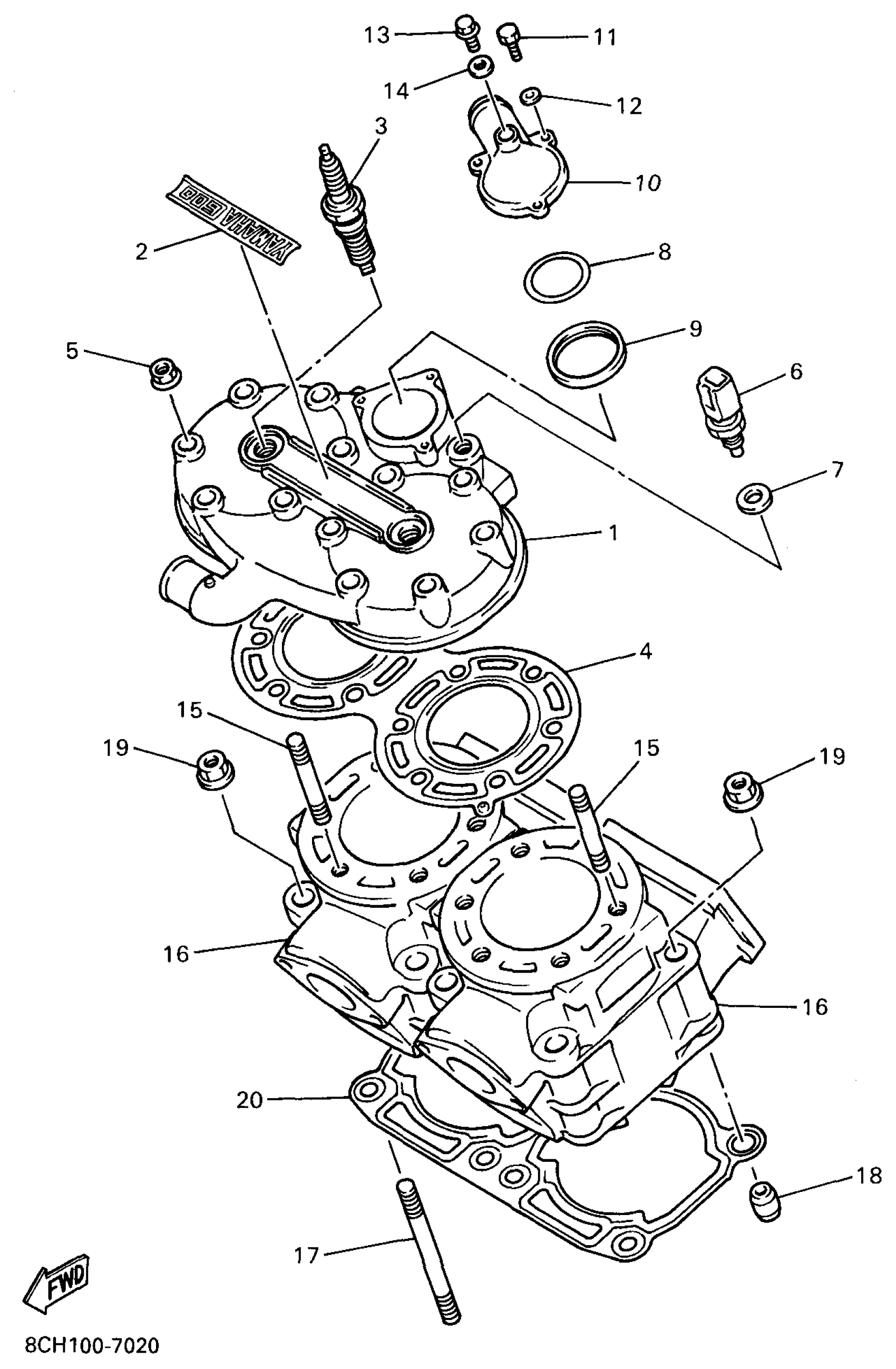

Yamaha MM700PB (MOUNTAIN MAX 700) 8CP2 1998 CYLINDER HEAD FOR MM600 Diagram

HEAD,CYLINDER 1

99999-03191-00

Unavailable

EMBLEM

8CR-1111K-00-00

Unavailable

PLUG, SPARK

NGK-BR9EC-50-00

Unavailable

GASKET, CYLINDER HEAD 1

8CR-11181-00-00

Unavailable

NUT, FLANGE(JN5)

95707-08500-00

$3.13

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

WASHER, PLATE

90201-12790-00

$9.49

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER(6TA)

92907-06600-00

$2.72

BOLT, FLANGE

95817-06012-00

$1.43

GASKET (4V2)

90430-06166-00

$3.76

BOLT, STUD (5X4)

90116-08392-00

$4.51

CYLINDER 1

8CR-11311-00-00

Unavailable

BOLT, STUD(8AB)

90116-10574-00

Unavailable

PIN, DOWEL

99530-14016-00

Unavailable

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

GASKET, CYLINDER

8CR-11351-00-00

Unavailable
