- MM700H (MOUNTAIN MAX 700) 8ED4 2003
CRANKSHAFT PISTON

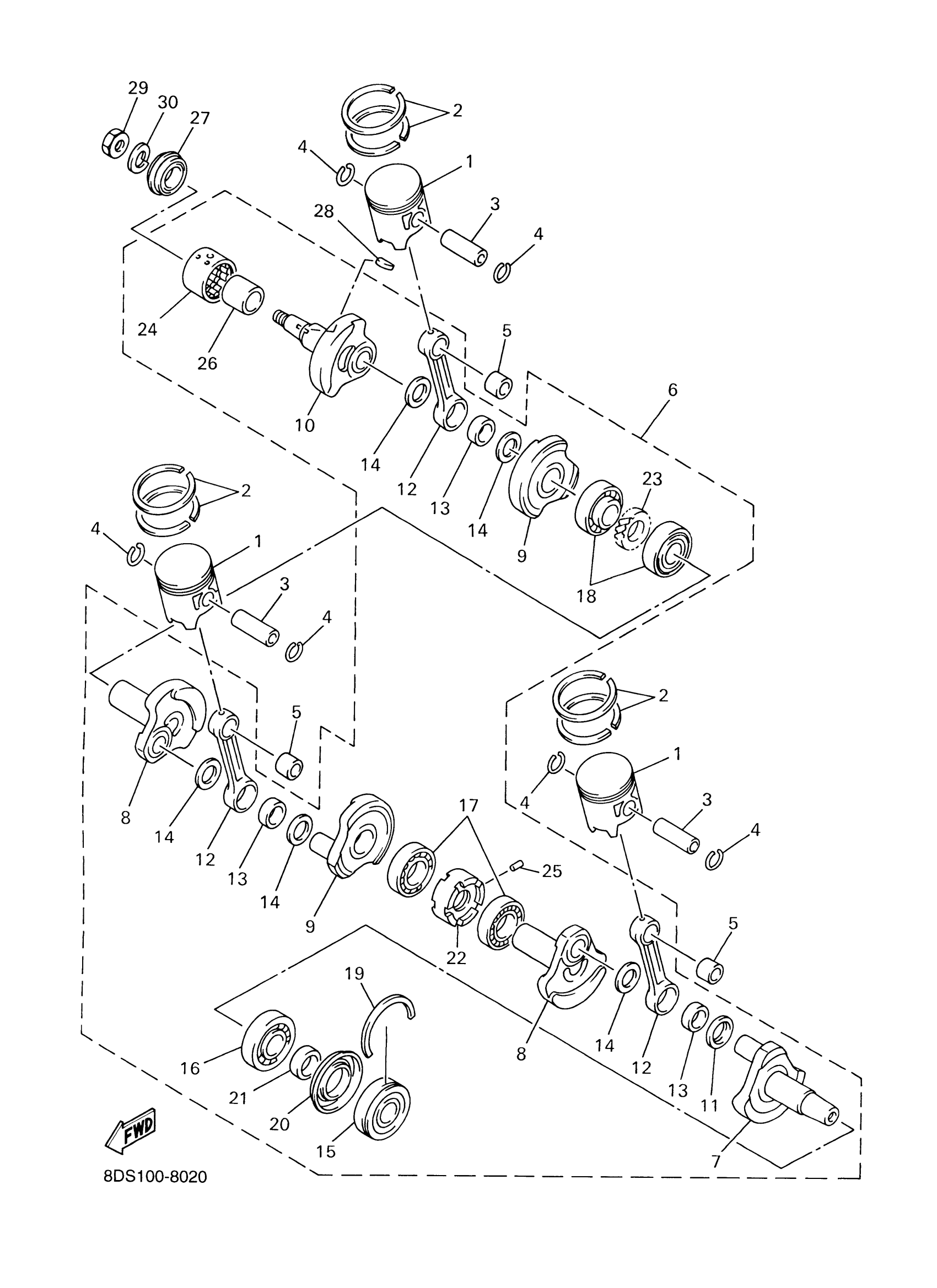

Yamaha MM700H (MOUNTAIN MAX 700) 8ED4 2003 CRANKSHAFT PISTON Diagram
#
1
PISTON (STD)
8CH-11631-00-A0
$136.99
2
PISTON RING SET (STD)
8CH-11603-00-00
$72.99
3
PIN, PISTON
8H8-11633-00-00
$36.99
4
CIRCLIP (8H0)
93450-21053-00
$3.85
5
BEARING
93310-32009-00
$55.99
6
CRANKSHAFT ASSY
8CH-11400-12-00
Unavailable
7
CRANK 1
8CH-11412-00-00
Unavailable
8
CRANK 2
8CH-11422-00-00
$158.99
9
. CRANK 3
8CH-11432-00-00
Unavailable
10
CRANK 4
8CH-11442-00-00
Unavailable
11
WASHER, CRANK PIN
8CH-11685-00-00
$34.99
12
ROD, CONNECTING
8CH-11651-00-00
$84.99
13
BEARING
93310-527S9-00
$81.99
14
WASHER, PLATE
90201-277R4-00
Unavailable
15
BEARING
93306-30715-00
$147.99
16
BEARING
93306-30716-00
Unavailable
17
. BEARING
93306-28201-00
Unavailable
18
. BEARING
93306-28202-00
Unavailable
19
CIRCLIP (834)
93440-80023-00
Unavailable
20
OIL SEAL
93103-45179-00
Unavailable
21
. COLLAR
8CH-11478-00-00
Unavailable
22
. SEAL, LABYRINTH 1
8CH-11515-00-00
Unavailable
23
GEAR, CRANK SHAFT
8CH-11434-00-00
Unavailable
24
BEARING
93390-00028-00
Unavailable
25
PIN, SPRING (663)
91690-30010-00
Unavailable
26
BEARING
8DF-1142A-01-00
Unavailable
27
OIL SEAL(82M)
93103-32153-00
Unavailable
28
KEY, WOODRUFF (8R9)
90280-05033-00
Unavailable
29
NUT
90170-16425-00
Unavailable
30
WASHER(6TD)
92907-16600-00
Unavailable
