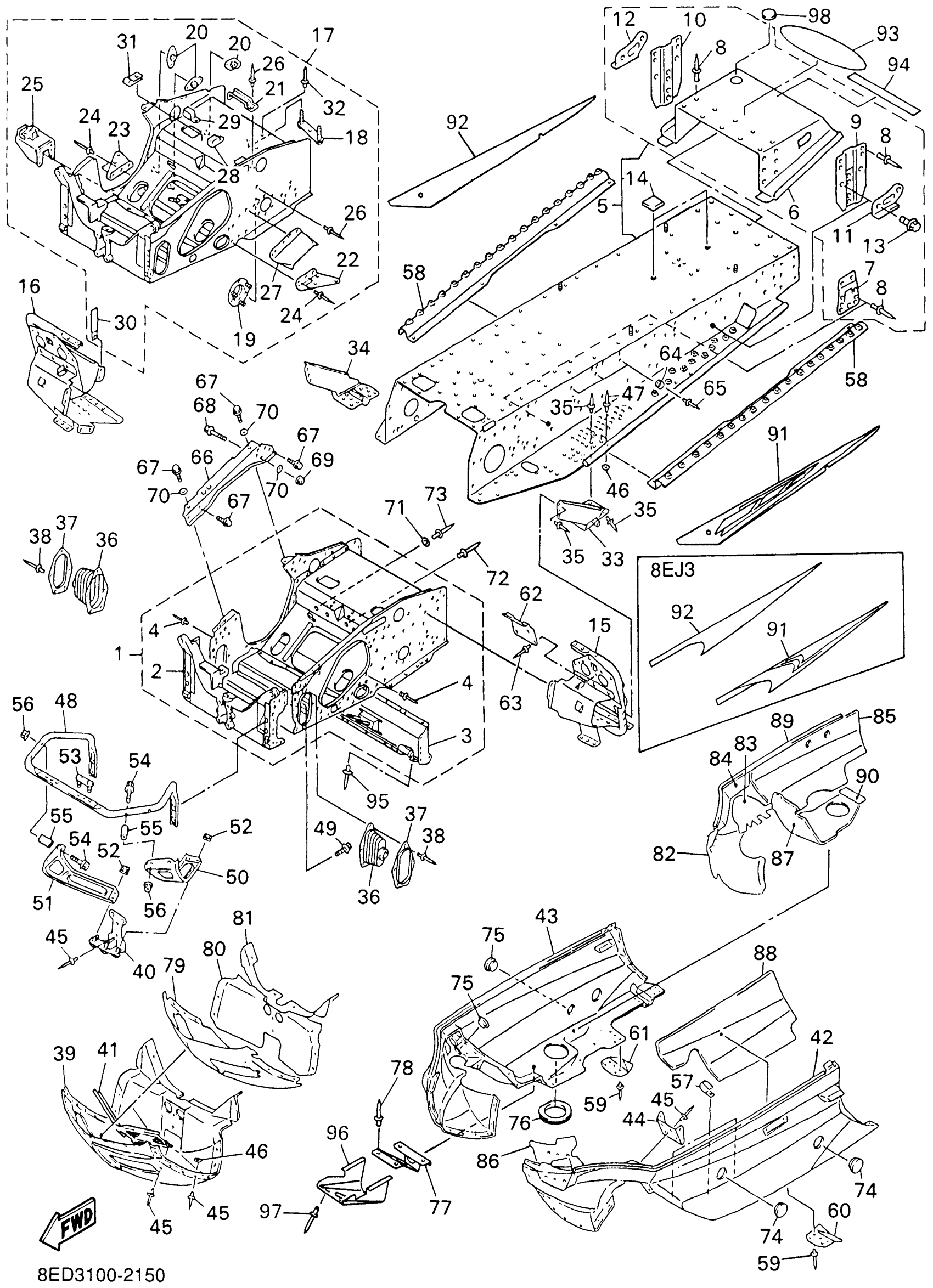

Yamaha MM700G (MOUNTAIN MAX 700) 8ED3 2002 FRAME Diagram
#
1
FRONT FRAME COMP.
8DG-21940-07-00
Unavailable
2
BULKHEAD
8CR-2191A-02-00
$278.99
3
HEAT EXCHANGER ASSY 1
8DG-12440-01-00
Unavailable
4
RIVET, BLIND
90267-48015-00
$1.49
4
RIVET, BLIND
90267-48016-00
$10.49
5
REAR FRAME COMP.
8EJ-21950-08-00
Unavailable
6
PANEL, SUB FRAME 5
8ED-21916-11-00
Unavailable
7
. BRACKET, MAIN TRACK 1
8ED-21943-00-00
Unavailable
8
RIVET, BLIND
90267-47195-00
$3.88
9
BRACKET, REAR TRACK SUSPENTION
8ED-21944-00-00
Unavailable
10
BRACKET, REAR TRACK SUSPENTION
8ED-21954-00-00
Unavailable
11
PATCH 8
8ED-21988-00-00
$8.99
12
PATCH 9
8ED-21989-00-00
Unavailable
13
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
14
COVER 3
8CR-2198J-00-00
Unavailable
15
FOOTREST COMP. 1
8ED-21960-09-00
Unavailable
16
FOOTREST COMP. 2
8ED-21970-09-00
Unavailable
17
FRAME CONNECTION KIT
8ED-W2195-00-00
Unavailable
18
BRACKET 3
8CR-2196F-00-00
Unavailable
19
. HOUSING, REINF SUB-ASSY (LH)
8CR-21920-00-00
Unavailable
20
BRACKET, CHAIN HOUSING
8CR-21939-01-00
Unavailable
21
CLAMP, FUEL PIPE
8CR-21977-00-00
Unavailable
22
PANEL, SUB FRAME 6
8CR-21917-00-00
Unavailable
23
PANEL, SUB-FRAME 7
8CR-21918-00-00
Unavailable
24
RIVET, BLIND
90267-48016-00
$10.49
25
STAY, MUFFER
8CR-2194J-00-00
Unavailable
26
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
27
COVER 2
8CR-2198G-00-00
Unavailable
28
CLAMP(83R)
90461-08113-00
Unavailable
29
CLAMP(8CR)
90461-06142-00
Unavailable
30
CLAMP
90462-10236-00
Unavailable
31
CLAMP
90461-10148-00
Unavailable
32
RIVET, BLIND
90267-47197-00
Unavailable
33
PIPE, PIVOT 1
8DF-21941-00-00
Unavailable
34
PIPE, PIVOT 2
8DF-21951-00-00
Unavailable
35
RIVET
90269-07080-00
Unavailable
36
COVER 1
8CR-2198F-00-00
Unavailable
37
PLATE, STRG BRACKET 1
8CR-2195E-00-00
Unavailable
38
RIVET, BLIND
90267-47197-00
Unavailable
39
PANEL, SUB FRAME 1
8CR-21912-01-00
Unavailable
39
PANEL, SUB FRAME 1
8CR-21912-11-00
Unavailable
40
PLATE, BACK UP
8CR-23788-11-00
Unavailable
41
STAY 4
8CR-77128-00-00
Unavailable
42
FRAME UNDER 1
8CR-2196A-03-00
Unavailable
42
FRAME UNDER 1
8CR-2196A-12-00
Unavailable
43
FRAME, UNDER 2
8CR-2196E-03-00
Unavailable
43
FRAME, UNDER 2
8CR-2196E-12-00
Unavailable
44
BRACKET, GUARD FITTING
8CR-21972-00-00
Unavailable
45
RIVET, BLIND
90267-48018-00
Unavailable
46
WASHER PLATE 829771780000
90201-05033-00
Unavailable
47
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
48
BUMPER, FRONT 2
8CR-77512-00-00
Unavailable
49
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
50
BRACKET, FRONT
8CR-21949-10-00
Unavailable
51
BRACKET, FRONT BUMPER
8CR-21959-10-00
Unavailable
52
NUT, SELF-LOCKING
90185-08169-00
Unavailable
53
BRACKET, 5
8CR-2196M-00-00
Unavailable
54
BOLT, FLANGE
95817-08040-00
Unavailable
55
COLLAR(8CR)
90387-0810F-00
Unavailable
56
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
57
CLAMP(4MX)
90465-06376-00
Unavailable
58
PLATE, ANTI-SKID
8ED-2192A-10-00
Unavailable
59
RIVET, BLIND
90267-48018-00
Unavailable
60
PROTECTOR, FRAME
8CR-21978-00-00
Unavailable
61
PROTECTOR, FRAME
8CR-2197B-00-00
Unavailable
62
HOOK
8CR-21973-00-00
Unavailable
63
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
64
BUTT0N
81K-2471F-00-00
Unavailable
65
RIVET, BLIND(81K)
90267-40135-00
Unavailable
66
REINEFORCEMENT, FRAME REAR 1
8CR-21921-01-00
Unavailable
67
BOLT, FLANGE
95817-10020-00
Unavailable
68
BOLT,FLANGE
95817-10065-00
Unavailable
69
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
70
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
71
WASHER PLATE 829771780000
90201-05033-00
Unavailable
72
RIVET, BLIND
90267-48177-00
Unavailable
73
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
74
PLUG (8H8)
90338-44093-00
Unavailable
74
PLUG
90338-44270-00
Unavailable
75
PLUG(8CJ)
90338-30256-00
Unavailable
75
PLUG
90338-30268-00
Unavailable
76
SPACER
8DF-21998-10-00
Unavailable
77
PROTECTOR, FRAME 3
8ED-2197C-00-00
Unavailable
78
RIVET, BLIND
90267-48018-00
Unavailable
79
LINING, SHROUD 1
8CR-77261-00-00
Unavailable
80
LINING, SHROUD 2
8CR-77262-00-00
Unavailable
81
LINING, SHROUD 3
8CR-77263-00-00
Unavailable
82
LINING, SHROUD 4
8CR-77264-00-00
Unavailable
83
LINING, SHROUD 5
8CR-77265-00-00
Unavailable
84
LINING, SHROUD 6
8CR-77266-00-00
Unavailable
85
LINING, SHROUD 7
8CR-77267-01-00
Unavailable
86
LINING,SHROUD 8
8CR-77268-00-00
Unavailable
87
LINING, SHROUD 9
8CR-77269-00-00
Unavailable
88
DAMPER, NOISE 11
8CR-77271-00-00
Unavailable
89
TAPE, 5
8CR-7717J-00-00
Unavailable
90
TRIM 1
8CR-77165-00-00
Unavailable
91
GRAPHIC 7
8ED-7711G-10-00
Unavailable
91
GRAPHIC 7
8EJ-7711G-01-00
Unavailable
92
GRAPHIC 8
8ED-7711H-10-00
Unavailable
92
GRAPHIC 8
8EJ-7711H-01-00
Unavailable
93
EMBLEM 3
8EJ-77143-00-00
Unavailable
93
EMBLEM 3
8EJ-77143-10-00
Unavailable
94
LABEL, WARNING 2
88X-77762-10-00
Unavailable
95
RIVET, BLIND
90267-48177-00
Unavailable
96
PROTECTOR, MUFFLER
8ED-2194H-00-00
Unavailable
97
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
98
PLUG
90338-44019-00
Unavailable
