Description

Price

1

STARTER ASSY

8CH-15710-01-00

$318.99

2

. CASE, STARTER

8CH-15711-00-00

Unavailable

3

. DRUM, SHEAVE

8CH-15714-00-00

Unavailable

4

. PAWL, DRIVE

8CH-15741-00-00

Unavailable

5

SPRING, STARTER

21V-15713-00-00

$25.99

6

. SPRING, FRICTION

8CH-15715-00-00

Unavailable

7

. SPRING

8CH-15767-00-00

Unavailable

8

PLATE, DRIVE

8CH-15716-00-00

Unavailable

9

NUT, FLANGE(JN5)

95707-08500-00

$3.13

10

. GUIDE, CAM

8CH-15735-00-00

Unavailable

11

. WASHER, THRUST

8CH-15739-00-00

Unavailable

12

WIRE, STARTER (BRAIDED)

8CH-15751-00-00

$29.99

13

HANDLE, STARTER

8F3-15755-00-00

$29.99

14

. PROTECTOR, PIPE

85L-24327-00-00

Unavailable

15

COVER, STARTER CASE

8CH-15712-00-00

Unavailable

16

COLLAR

90387-08071-00

Unavailable

17

BUSH (8M6)

90385-12036-00

Unavailable

18

BOLT, WITH WASHER

90119-08240-00

Unavailable

19

PULLEY, STARTER

8DF-15723-00-00

Unavailable

20

BOLT, BUTTON

92017-08020-00

Unavailable

21

SPACER

8DG-15724-00-00

Unavailable

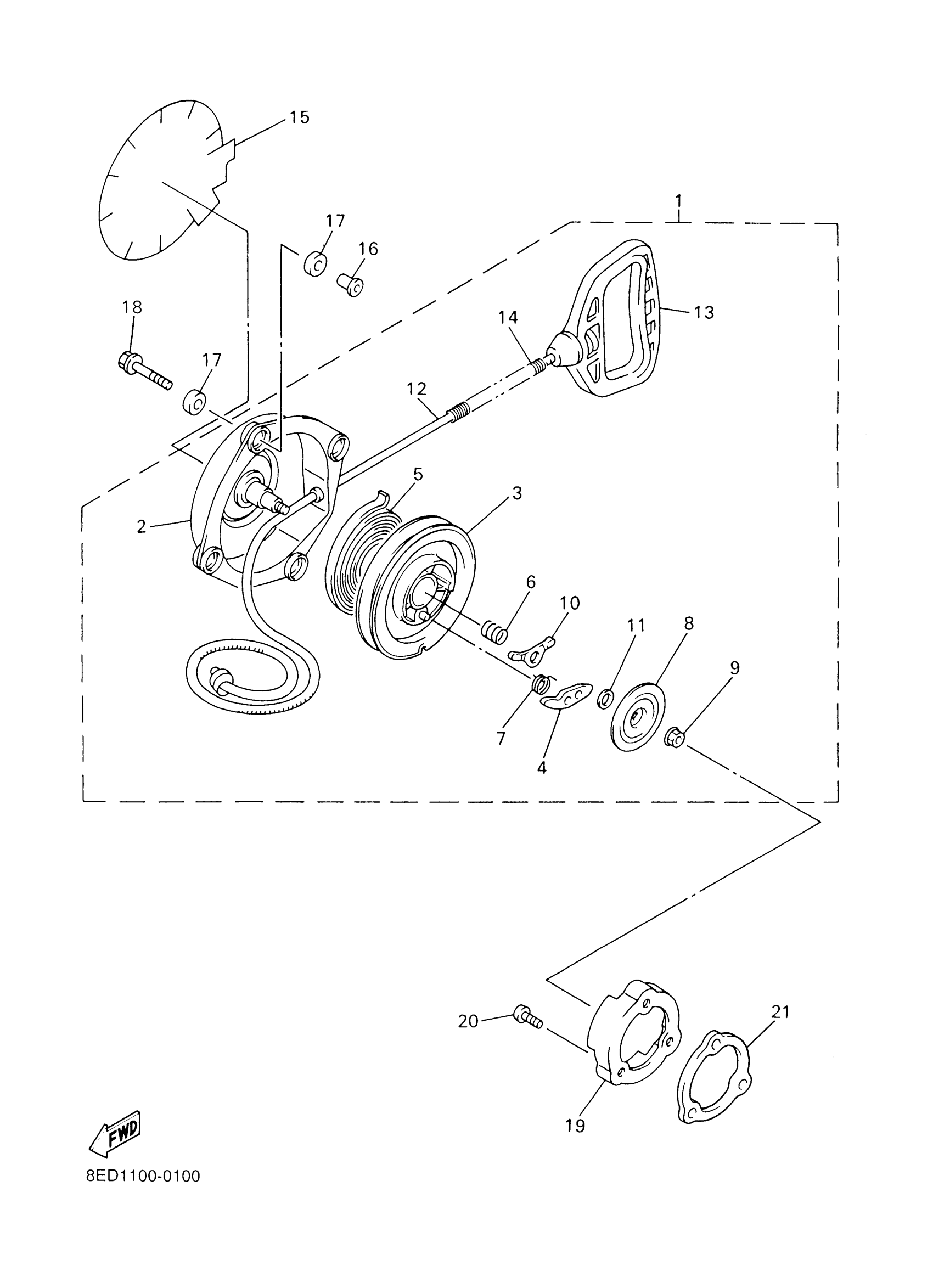

Yamaha MM700F (MOUNTAIN MAX 700) 8ED2 2001 STARTER Diagram

STARTER ASSY

. CASE, STARTER

. DRUM, SHEAVE

. PAWL, DRIVE

SPRING, STARTER

. SPRING, FRICTION

. SPRING

PLATE, DRIVE

NUT, FLANGE(JN5)

. GUIDE, CAM

. WASHER, THRUST

WIRE, STARTER (BRAIDED)

HANDLE, STARTER

. PROTECTOR, PIPE

COVER, STARTER CASE

COLLAR

BUSH (8M6)

BOLT, WITH WASHER

PULLEY, STARTER

BOLT, BUTTON

SPACER
