- MM700F (MOUNTAIN MAX 700) 8ED2 2001
ELECTRICAL 1

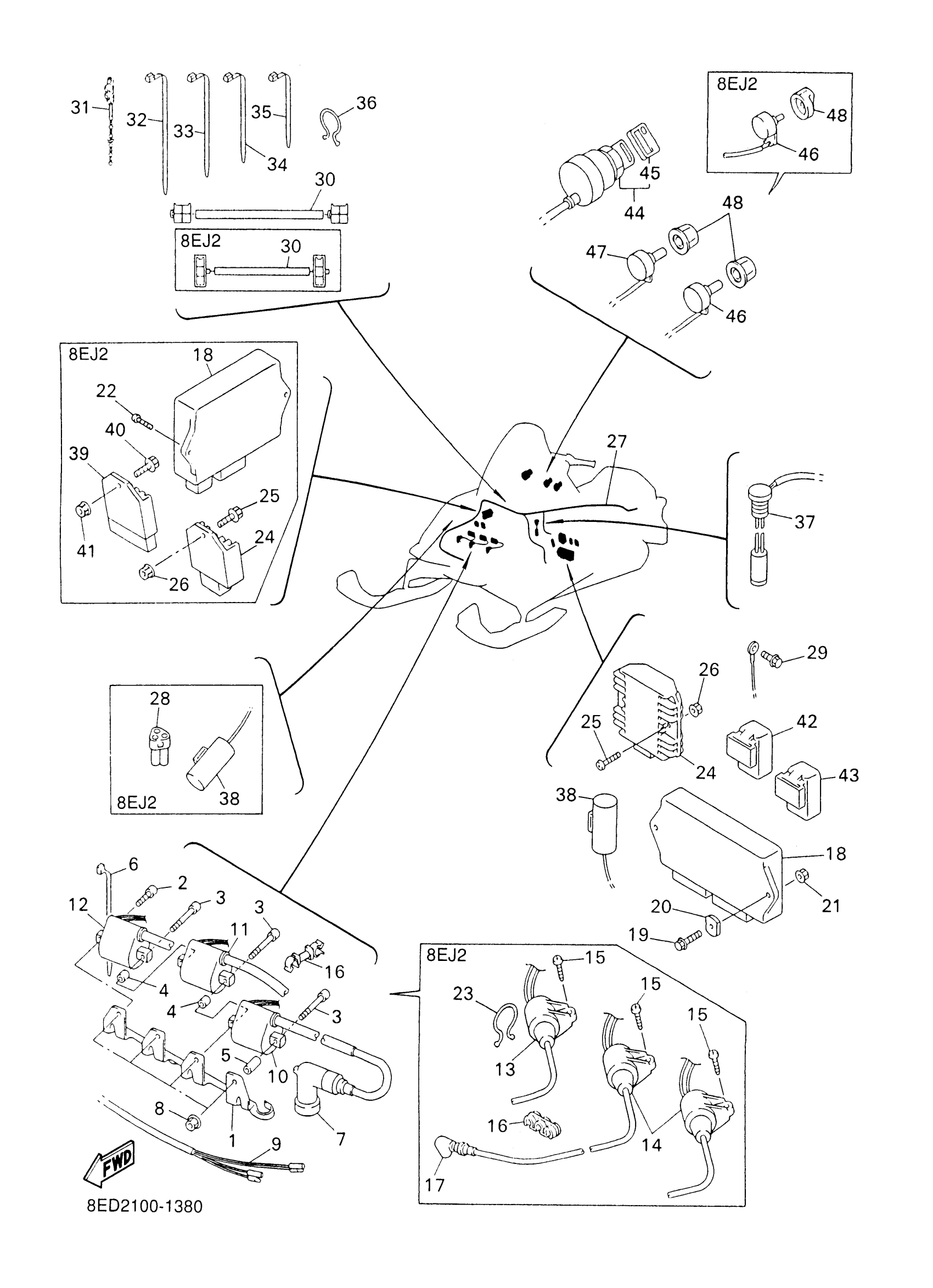

Yamaha MM700F (MOUNTAIN MAX 700) 8ED2 2001 ELECTRICAL 1 Diagram
#
1
BRACKET, IGNITION COIL
8DM-82316-00-00
Unavailable
2
BOLT,SOCKET
91317-06020-00
Unavailable
3
BOLT,SOCKET
91317-06040-00
$3.76
4
COLLAR
90387-07020-00
$8.49
5
COLLAR, LEVER 1
36Y-83913-01-00
$9.99
6
CLAMP(4FM)
90464-15195-00
$4.41
7
PLUG CAP ASSY
8DF-82370-00-00
$41.99
8
NUT,SELF-LOCKING
95607-06200-00
$12.49
9
WIRE, SUB LEAD
8DM-82509-00-00
Unavailable
10
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
11
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
12
IGNITION COIL ASSY
8DM-82310-30-00
$142.99
13
IGNITION COIL ASSY
8DG-82310-00-00
Unavailable
14
IGNITION COIL ASSY
8ED-82310-00-00
Unavailable
15
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
16
CLAMP
90464-06247-00
Unavailable
16
CLAMP
90464-10002-00
Unavailable
17
PLUG CAP ASSY
8DF-82370-00-00
$41.99
18
C.D.I. UNIT ASSY
8DG-85540-00-00
Unavailable
18
C.D.I. UNIT ASSY
8DM-85540-10-00
Unavailable
19
BOLT, FLANGE
95817-06020-00
Unavailable
20
NUT,SPEC'L SHAPE
90179-06W01-00
Unavailable
21
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
22
SCREW, TAPPING
97707-60525-00
Unavailable
23
CLAMP (3Y2)
90464-16039-00
Unavailable
24
RECTIFIER & REGULATOR ASSY
4JH-81960-01-00
Unavailable
24
RECTIFIER & REGULATOR ASSY
8DX-81960-00-00
Unavailable
25
BOLT, FLANGE
95817-06016-00
Unavailable
25
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
26
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
26
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
27
WIRE HARNESS ASSY
8CH-82590-10-00
Unavailable
27
WIRE HARNESS ASSY
8DS-82590-00-00
Unavailable
28
CONNECTOR
8CR-82378-00-00
Unavailable
29
BOLT, FLANGE
95817-06010-00
Unavailable
30
WIRE, LEAD
8CR-8471G-00-00
Unavailable
30
WIRE, LEAD
8DM-8471G-00-00
Unavailable
31
CLAMP
90464-20031-00
Unavailable
32
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
33
CLAMP(4FM)
90464-15195-00
$4.41
33
CLAMP(4FM)
90464-15195-00
$4.41
34
CLAMP(4FM)
90464-15195-00
$4.41
34
CLAMP(4FM)
90464-15195-00
$4.41
35
CLAMP
90464-13077-00
Unavailable
36
CLAMP
90464-25267-00
Unavailable
37
OIL LEVEL GAUGE ASSY
8CR-85720-02-00
Unavailable
38
CONDENSER, SMOOTHING
1NL-81965-01-00
Unavailable
38
CONDENSER, SMOOTHING
3TC-81965-00-00
Unavailable
39
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
40
BOLT, FLANGE
95817-06016-00
Unavailable
41
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
42
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
43
RELAY ASSY (8DM-00)
8DM-81950-00-00
Unavailable
44
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
44
MAIN SWITCH ASSY
8DM-82510-00-00
Unavailable
45
CAP, KEY
526-82579-00-00
Unavailable
46
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
46
RESISTOR, VARIABLE
8DM-87283-00-00
Unavailable
47
RESISTOR, VARIABLE
8DM-87283-10-00
Unavailable
48
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
48
KNOB, VARIABLE RESISTOR
8DM-87284-00-00
Unavailable
