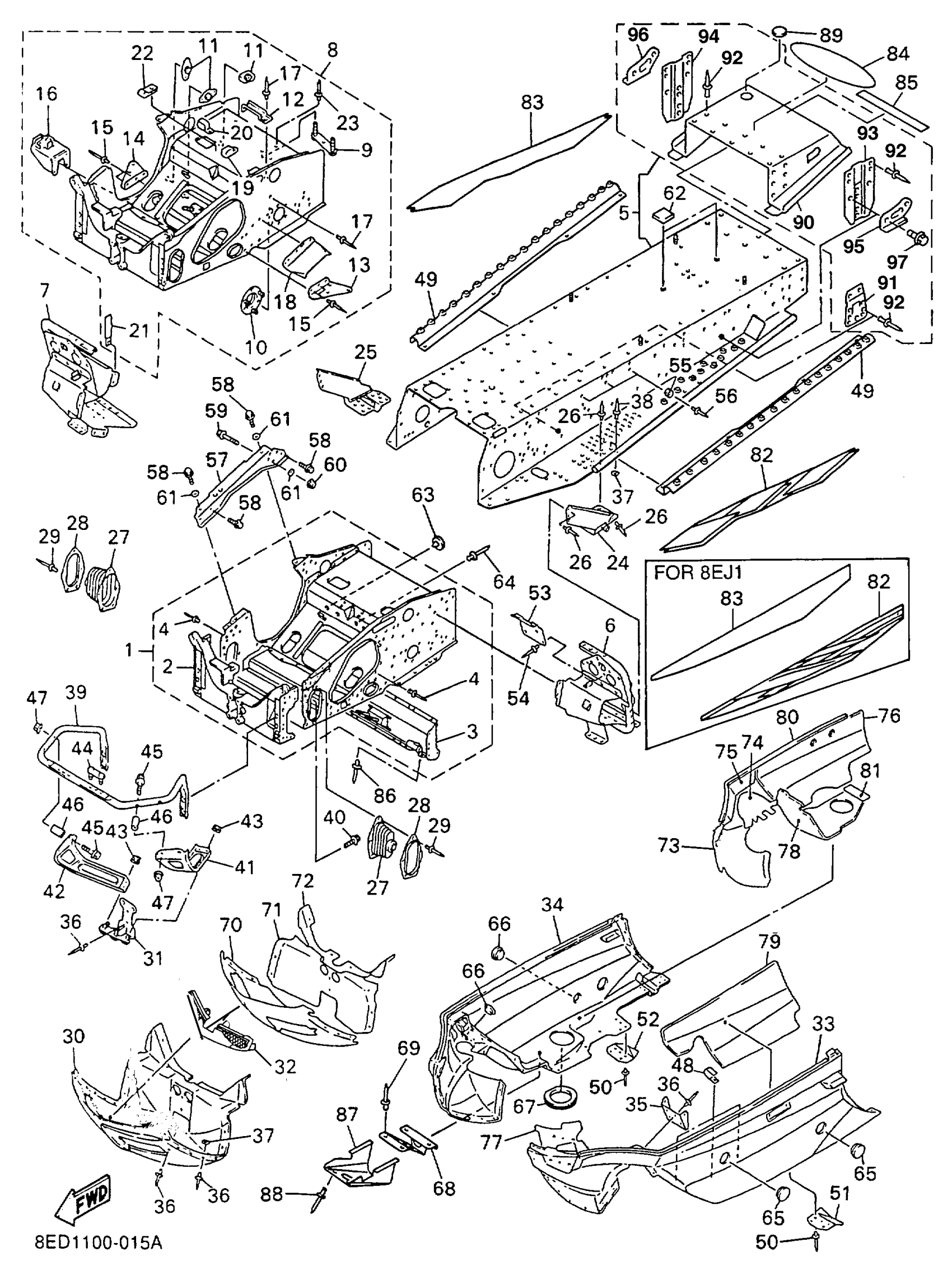

Yamaha MM700D (MOUNTAIN MAX) 8ED1 2000 FRAME Diagram
#
1
FRONT FRAME COMP.
8DG-21940-07-00
Unavailable
2
BULKHEAD
8CR-2191A-02-00
$278.99
3
HEAT EXCHANGER ASSY 1
8DG-12440-01-00
Unavailable
4
RIVET, BLIND
90267-48016-00
$10.49
4
RIVET, BLIND
90267-48177-00
$2.39
5
PANEL, SUB FRAME 5
8ED-21916-01-00
Unavailable
5
PANEL, SUB FRAME 5
8ED-21916-11-00
Unavailable
5
. BRACKET, MAIN TRACK 1
8ED-21943-00-00
Unavailable
5
BRACKET, REAR TRACK SUSPENTION
8ED-21944-00-00
Unavailable
5
REAR FRAME COMP.
8ED-21950-09-00
Unavailable
5
BRACKET, REAR TRACK SUSPENTION
8ED-21954-00-00
Unavailable
5
PATCH 8
8ED-21988-00-00
$8.99
5
PATCH 9
8ED-21989-00-00
Unavailable
5
REAR FRAME COMP.
8EJ-21950-08-00
Unavailable
5
RIVET, BLIND(8CR)
90267-47186-00
$2.97
5
RIVET, BLIND
90267-47195-00
Unavailable
5
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
6
FOOTREST COMP. 1
8ED-21960-09-00
Unavailable
7
FOOTREST COMP. 2
8ED-21970-09-00
Unavailable
8
FRAME CONNECTION KIT
8ED-W2195-00-00
Unavailable
9
BRACKET 3
8CR-2196F-00-00
Unavailable
10
. HOUSING, REINF SUB-ASSY (LH)
8CR-21920-00-00
Unavailable
11
BRACKET, CHAIN HOUSING
8CR-21939-01-00
Unavailable
12
CLAMP, FUEL PIPE
8CR-21977-00-00
Unavailable
13
PANEL, SUB FRAME 6
8CR-21917-00-00
Unavailable
14
PANEL, SUB-FRAME 7
8CR-21918-00-00
Unavailable
15
RIVET, BLIND
90267-48016-00
$10.49
16
STAY, MUFFER
8CR-2194J-00-00
Unavailable
17
RIVET, BLIND(8CR)
90267-47186-00
$2.97
18
COVER 2
8CR-2198G-00-00
Unavailable
19
CLAMP(83R)
90461-08113-00
Unavailable
20
CLAMP(8CR)
90461-06142-00
Unavailable
21
CLAMP
90462-10236-00
Unavailable
22
CLAMP
90461-10148-00
Unavailable
23
RIVET, BLIND
90267-47197-00
Unavailable
24
PIPE, PIVOT 1
8DF-21941-00-00
Unavailable
25
PIPE, PIVOT 2
8DF-21951-00-00
Unavailable
26
RIVET
90269-07080-00
Unavailable
27
COVER 1
8CR-2198F-00-00
Unavailable
28
PLATE, STRG BRACKET 1
8CR-2195E-00-00
Unavailable
29
RIVET, BLIND
90267-47197-00
Unavailable
30
PANEL, SUB FRAME 1
8CR-21912-11-00
Unavailable
30
PANEL, SUB FRAME 1
8CR-21912-31-00
Unavailable
31
PLATE, BACK UP
8CR-23788-11-00
Unavailable
32
STAY 4
8CR-77128-00-00
Unavailable
33
FRAME UNDER 1
8CR-2196A-12-00
Unavailable
33
FRAME UNDER 1
8CR-2196A-32-00
Unavailable
34
FRAME, UNDER 2
8CR-2196E-12-00
Unavailable
34
FRAME, UNDER 2
8CR-2196E-32-00
Unavailable
35
BRACKET, GUARD FITTING
8CR-21972-00-00
Unavailable
36
RIVET, BLIND
90267-48018-00
Unavailable
37
WASHER PLATE 829771780000
90201-05033-00
Unavailable
38
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
39
BUMPER, FRONT 2
8CR-77512-00-00
Unavailable
40
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
41
BRACKET, FRONT
8CR-21949-10-00
Unavailable
42
BRACKET, FRONT BUMPER
8CR-21959-10-00
Unavailable
43
NUT, SELF-LOCKING
90185-08169-00
Unavailable
44
BRACKET, 5
8CR-2196M-00-00
Unavailable
45
BOLT, FLANGE
95817-08040-00
Unavailable
46
COLLAR(8CR)
90387-0810F-00
Unavailable
47
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
48
CLAMP(4MX)
90465-06376-00
Unavailable
49
PLATE, ANTI-SKID
8ED-2192A-00-00
Unavailable
49
PLATE, ANTI-SKID
8ED-2192A-10-00
Unavailable
50
RIVET, BLIND
90267-48018-00
Unavailable
51
PROTECTOR, FRAME
8CR-21978-00-00
Unavailable
52
PROTECTOR, FRAME
8CR-2197B-00-00
Unavailable
53
HOOK
8CR-21973-00-00
Unavailable
54
RIVET, BLIND(8CR)
90267-47186-00
$2.97
55
BUTT0N
81K-2471F-00-00
Unavailable
56
RIVET, BLIND(81K)
90267-40135-00
Unavailable
57
REINEFORCEMENT, FRAME REAR 1
8CR-21921-01-00
Unavailable
58
BOLT, FLANGE
95817-10020-00
Unavailable
59
BOLT,FLANGE
95817-10065-00
Unavailable
60
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
61
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
62
COVER 3
8CR-2198J-00-00
Unavailable
62
COVER 3
8DP-2198J-00-00
Unavailable
63
PLUG
90338-10004-00
Unavailable
64
RIVET, BLIND
90267-48177-00
$2.39
65
PLUG (8H8)
90338-44093-00
Unavailable
65
PLUG
90338-44270-00
Unavailable
66
PLUG(8CJ)
90338-30256-00
Unavailable
66
PLUG
90338-30268-00
Unavailable
67
SPACER
8DF-21998-10-00
Unavailable
68
PROTECTOR, FRAME 3
8ED-2197C-00-00
Unavailable
69
RIVET, BLIND
90267-48018-00
Unavailable
70
LINING, SHROUD 1
8CR-77261-00-00
Unavailable
71
LINING, SHROUD 2
8CR-77262-00-00
Unavailable
72
LINING, SHROUD 3
8CR-77263-00-00
Unavailable
73
LINING, SHROUD 4
8CR-77264-00-00
Unavailable
74
LINING, SHROUD 5
8CR-77265-00-00
Unavailable
75
LINING, SHROUD 6
8CR-77266-00-00
Unavailable
76
LINING, SHROUD 7
8CR-77267-01-00
Unavailable
77
LINING,SHROUD 8
8CR-77268-00-00
Unavailable
78
LINING, SHROUD 9
8CR-77269-00-00
Unavailable
79
DAMPER, NOISE 11
8CR-77271-00-00
Unavailable
80
TAPE, 5
8CR-7717J-00-00
Unavailable
81
TRIM 1
8CR-77165-00-00
Unavailable
82
EMBLEM 1
8ED-77351-00-00
Unavailable
82
EMBLEM 1
8EJ-77351-00-00
Unavailable
83
EMBLEM 2
8ED-77352-00-00
Unavailable
83
EMBLEM 2
8EJ-77352-00-00
Unavailable
84
EMBLEM 3
8EJ-77143-00-00
Unavailable
85
LABEL, WARNING 2
88X-77762-10-00
Unavailable
85
LABEL, WARNING 2
8BH-77762-00-00
Unavailable
86
RIVET, BLIND
90267-48177-00
$2.39
87
PROTECTOR, MUFFLER
8ED-2194H-00-00
Unavailable
88
RIVET, BLIND(8CR)
90267-47186-00
$2.97
89
PLUG
90338-44019-00
Unavailable
90
PANEL, SUB FRAME 5
8ED-21916-01-00
Unavailable
90
PANEL, SUB FRAME 5
8ED-21916-11-00
Unavailable
91
. BRACKET, MAIN TRACK 1
8ED-21943-00-00
Unavailable
92
RIVET, BLIND(8CR)
90267-47186-00
$2.97
92
RIVET, BLIND
90267-47195-00
Unavailable
93
BRACKET, REAR TRACK SUSPENTION
8ED-21944-00-00
Unavailable
94
BRACKET, REAR TRACK SUSPENTION
8ED-21954-00-00
Unavailable
95
PATCH 8
8ED-21988-00-00
$8.99
96
PATCH 9
8ED-21989-00-00
Unavailable
97
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
