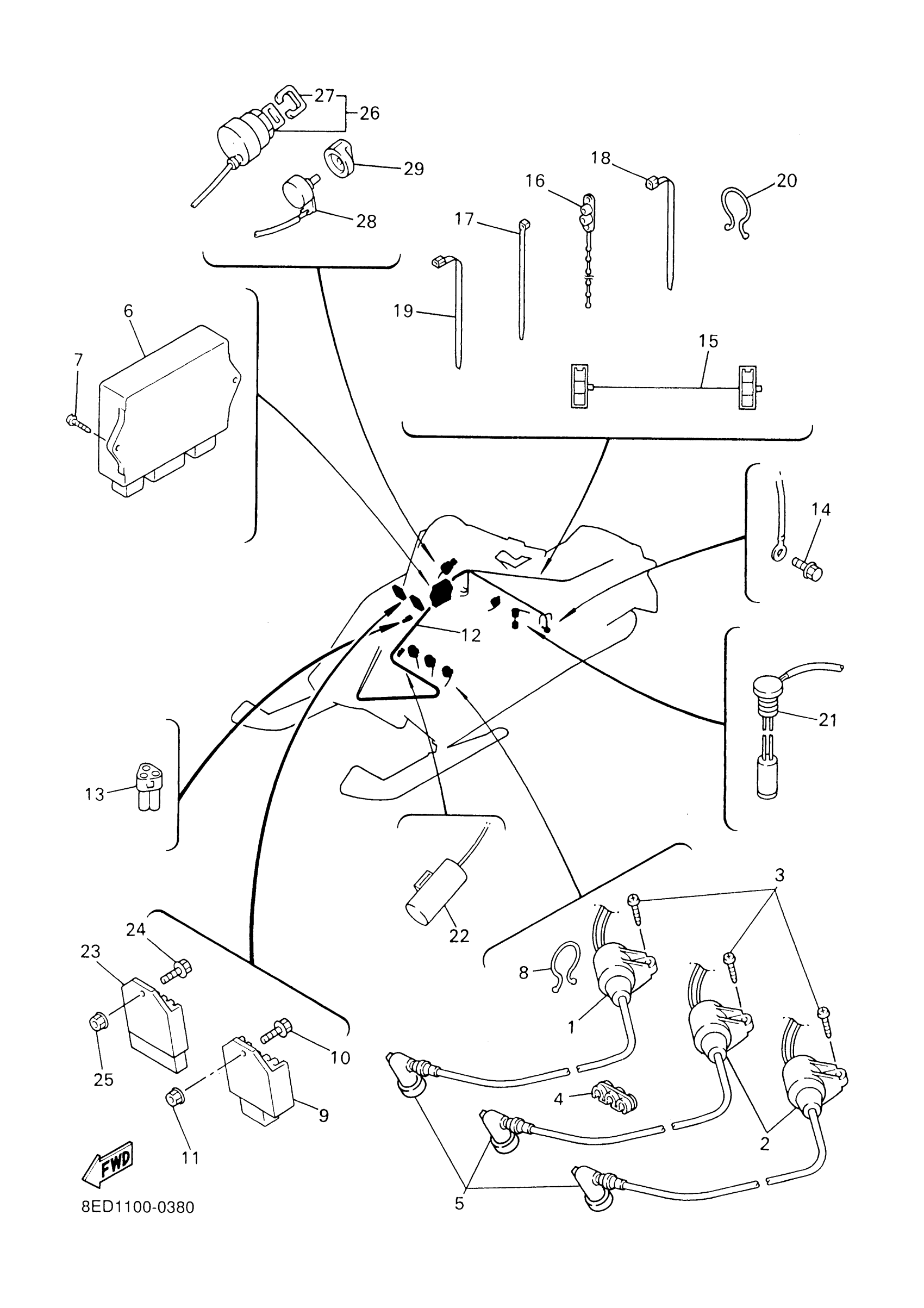

Yamaha MM700D (MOUNTAIN MAX) 8ED1 2000 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8DG-82310-00-00

Unavailable

2

IGNITION COIL ASSY

8ED-82310-00-00

Unavailable

3

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

4

CLAMP

90464-06247-00

Unavailable

5

PLUG CAP ASSY

8DF-82370-00-00

$41.99

6

C.D.I. UNIT ASSEMBLY

8CH-85540-00-00

Unavailable

6

C.D.I. UNIT ASSY

8DG-85540-00-00

Unavailable

7

SCREW, TAPPING

97707-60525-00

$8.49

8

CLAMP (3Y2)

90464-16039-00

$9.49

9

RECTIFIER & REGULATOR ASSY

8DX-81960-00-00

Unavailable

10

BOLT, FLANGE

95817-06016-00

$2.75

11

NUT, FLANGE(4MV)

95707-06500-00

$1.23

12

WIRE HARNESS ASSY

8CH-82590-10-00

Unavailable

13

CONNECTOR

8CR-82378-00-00

Unavailable

14

BOLT, FLANGE

95817-06010-00

$4.73

15

WIRE, LEAD

8CR-8471G-00-00

Unavailable

16

CLAMP

90464-20031-00

Unavailable

17

CLAMP(4FM)

90464-15195-00

Unavailable

18

CLAMP(4FM)

90464-15195-00

Unavailable

19

CLAMP

90464-13077-00

Unavailable

20

CLAMP

90464-25267-00

Unavailable

21

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

Unavailable

22

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

23

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

24

BOLT, FLANGE

95817-06016-00

$2.75

25

NUT, FLANGE(4MV)

95707-06500-00

$1.23

26

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

27

CAP, KEY

526-82579-00-00

Unavailable

28

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

29

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable
