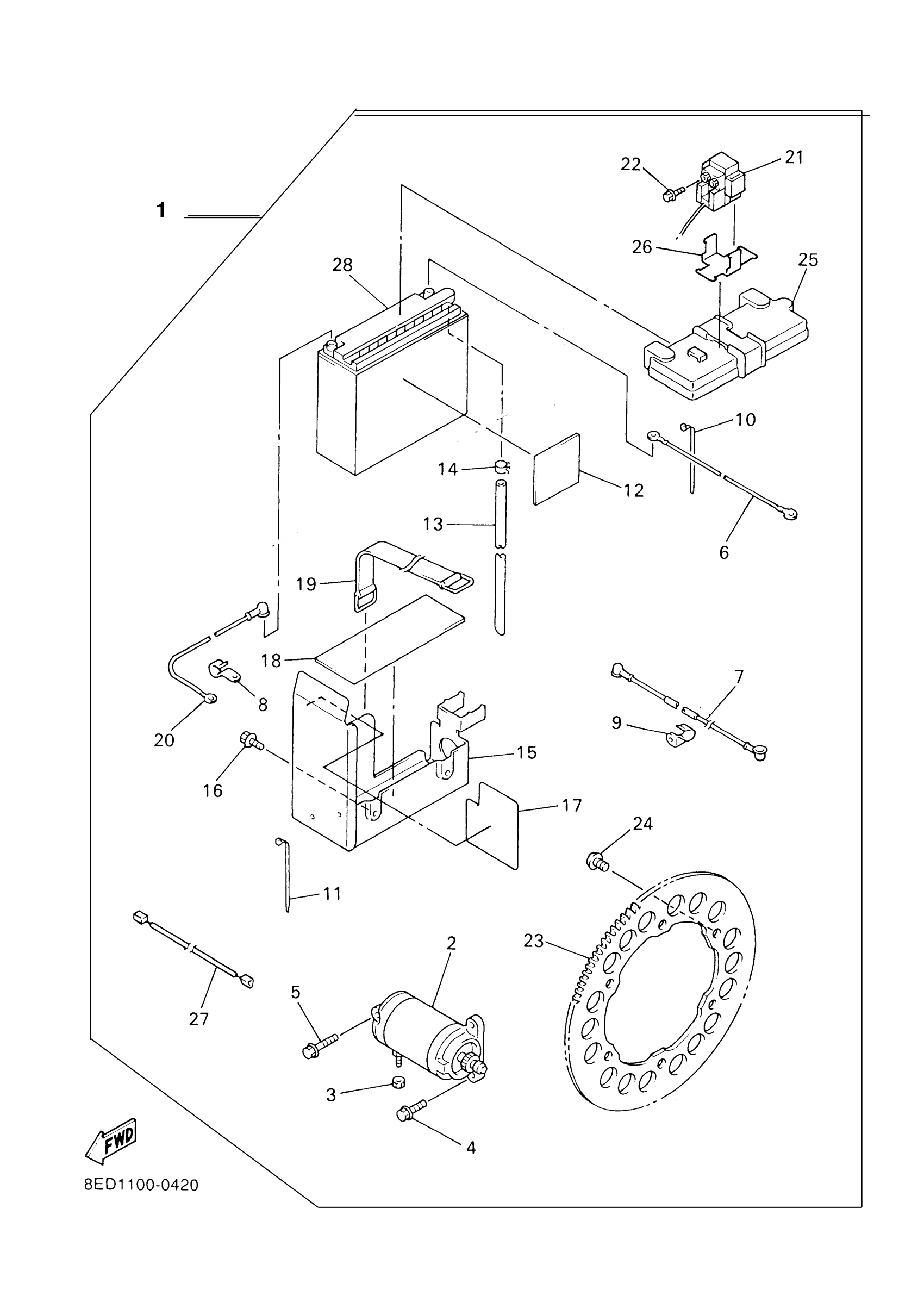

Yamaha MM700D (MOUNTAIN MAX) 8ED1 2000 ALTERNATE STARTER MOTOR KIT Diagram

#

Description
Price

1

TRIPLE ELECTRIC START KIT

8DS-W8180-15-KT

Unavailable

2

STARTING MOTOR ASSY

8CW-81800-01-00

Unavailable

3

NUT(6TA)

95317-06600-00

$3.55

4

BOLT, SMALL FLANGE

95027-08030-00

$3.76

5

BOLT, FLANGE(4ES)

95027-08080-00

Unavailable

6

. WIRE, MINUS LEAD

8DY-82116-00-00

Unavailable

7

. WIRE, LEAD

8DY-82117-00-00

Unavailable

8

CLAMP

90462-08016-00

$26.99

9

. CLAMP

90465-10381-00

Unavailable

10

CLAMP(4FM)

90464-15195-00

$4.41

11

CLAMP(4FM)

90464-15195-00

$4.41

12

DAMPER

8CW-82176-00-00

Unavailable

13

PIPE (L320)

8CW-8235W-01-00

Unavailable

14

CLIP(41W)

90467-08092-00

$9.49

15

. BRACKET, BATTERY

8CW-2199G-00-00

Unavailable

16

BOLT (796)

90109-06513-00

Unavailable

17

. SHIELD, HEAT

8CW-2199H-00-00

Unavailable

18

SEAT, BATTERY

84N-82122-00-00

Unavailable

19

BAND, BATTERY

8CY-82131-00-00

Unavailable

20

WIRE, PLUS LEAD

8DY-82115-00-00

Unavailable

21

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

Unavailable

22

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

23

GEAR 1

8DM-1760A-18-00

Unavailable

24

SCREW, CROSSRECESSED ROUND

90150-08008-00

Unavailable

25

COVER, BATTERY

8DX-82129-01-00

Unavailable

26

. HOLDER, RELAY

8CY-81952-00-00

Unavailable

27

. WIRE, SUB LEAD

8DY-82509-00-00

Unavailable

28

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable
