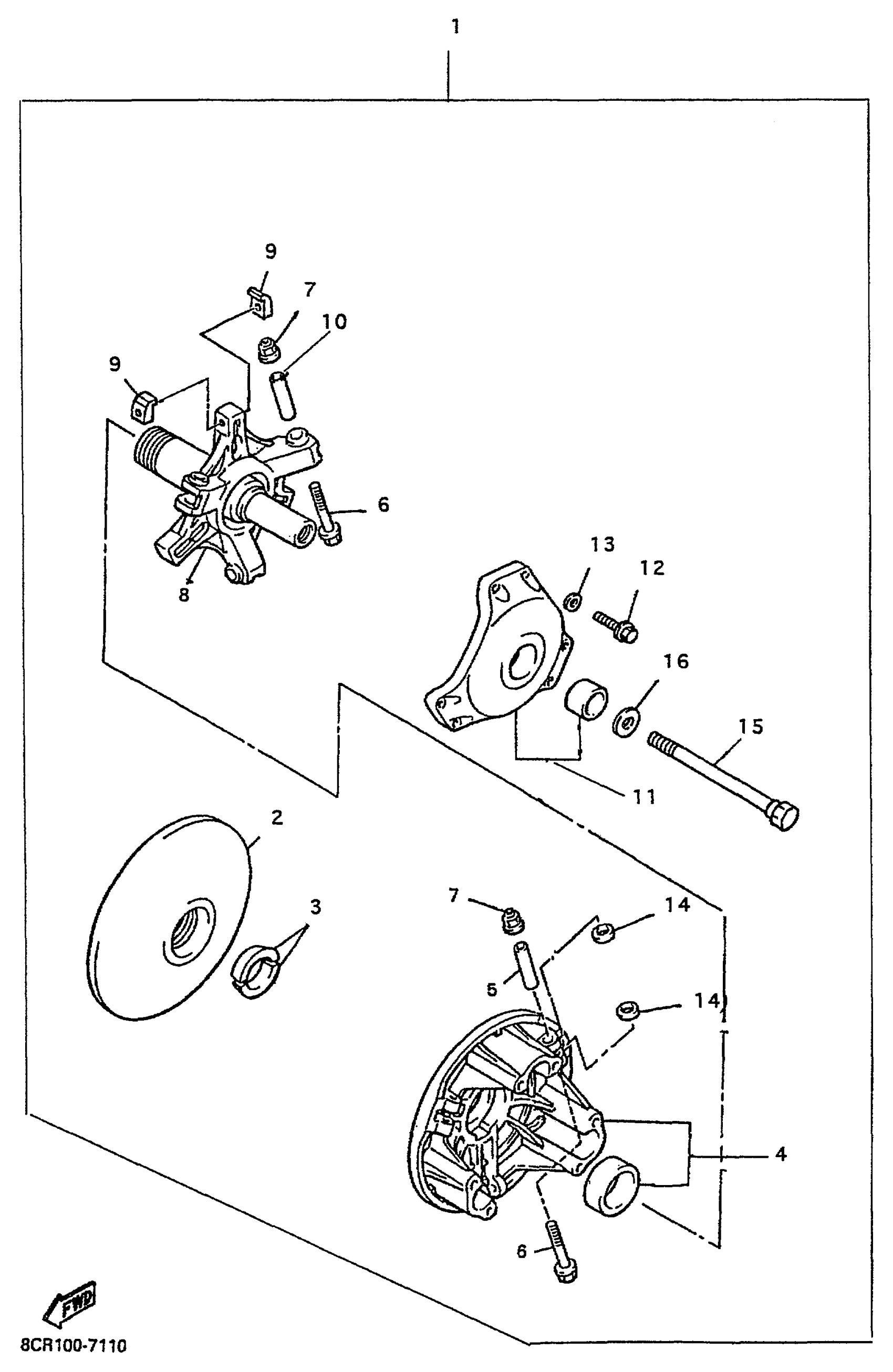

Yamaha MM700D (MOUNTAIN MAX) 8ED1 2000 ALTERNATE CLUTCH REPAIR KIT Diagram

#

Description
Price

1

CLUTCH REPAIR KIT

8DS-W176G-00-00

Unavailable

2

SHEAVE, PRIMARY FIXED

8CR-17611-02-00

$207.59

3

STOPPER

8V0-17639-00-00

$9.81

4

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-11-00

$424.15

5

COLLAR

90387-0514T-00

$13.88

6

BOLT, WASHER BASED(88R)

90105-05644-00

$1.81

7

NUT, S/L FLANGE

95607-05200-00

$6.39

8

SPIDER COMP.

8CA-17640-12-00

Unavailable

9

SLIDER

8BW-17653-00-00

$12.93

10

COLLAR

90387-0514U-00

$15.62

11

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

$173.47

12

BOLT, HEXAGON

97017-06030-00

$2.80

13

WASHER(6TA)

92907-06600-00

$0.73

14

WASHER, PLATE(88R)

90202-08204-00

$5.49

15

BOLT (L=156.5MM)

8V0-17647-10-00

$20.03

16

WASHER(JN5)

92907-16100-00

Unavailable
