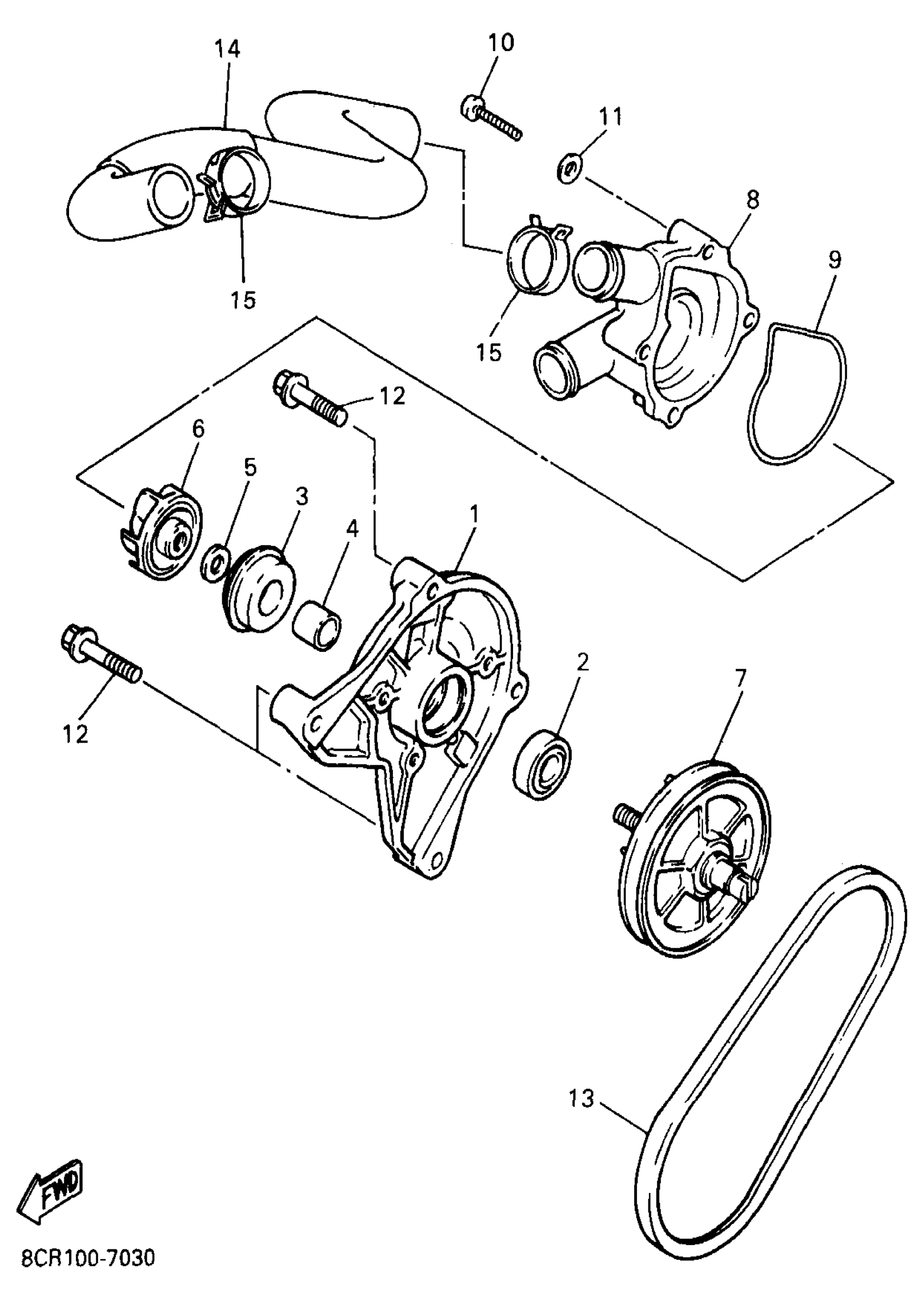

Yamaha MM700A (MOUNTAIN MAX 700) 8CP1 1997 WATER PUMP FOR MM600 Diagram

#

Description
Price

1

HOUSING,WATER PUMP

8CR-12421-01-00

Unavailable

2

BEARING(82M)

93306-20117-00

$27.89

3

SEAL, MECHANICAL

82M-12438-00-00

Unavailable

4

STOPPER

82M-12437-00-00

Unavailable

5

WASHER, PLATE 2562171800

90201-08088-00

$1.07

6

IMPELLER, WATER PUMP

82M-12451-00-00

Unavailable

7

IMPELLER SHAFT ASSY

8CR-12450-00-00

Unavailable

8

COVER,HOUSING

8CR-12422-01-00

Unavailable

9

O-RING

8CR-12439-00-00

Unavailable

10

SCREW, PAN

98507-06035-00

$5.76

11

WASHER(6TA)

92907-06600-00

$0.73

12

BOLT, FLANGE

95817-08035-00

$6.22

13

BELT 1

82M-12444-00-00

$25.93

14

PIPE 1

8CR-12481-00-00

Unavailable

15

CLIP (8M6)

90467-28046-00

$11.61
