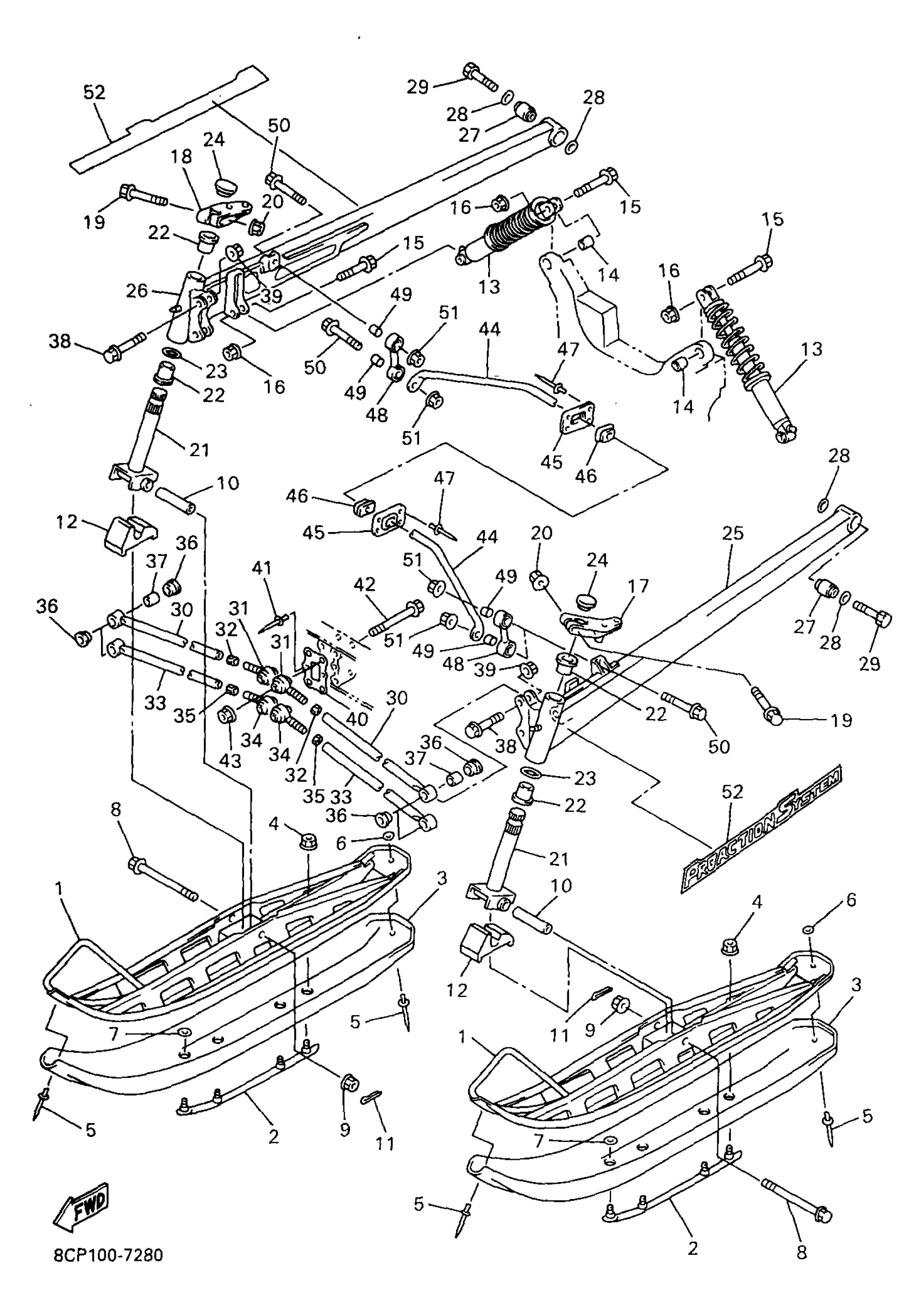

Yamaha MM700A (MOUNTAIN MAX 700) 8CP1 1997 SKI Diagram
#
1
SKI COMP. 1
8DJ-23710-00-00
Unavailable
2
RUNNER 1
8CV-23731-00-00
Unavailable
3
RED WIDE SKI SKIN / RUNNER 2
8CS-23732-00-XX
Unavailable
6
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
8
BOLT, WASHER BASED(83M)
90105-10438-00
Unavailable
12
STOPPER 1
8CS-23743-00-00
Unavailable
13
ABSORBER ASSEMBLY 1
8CS-2376A-00-00
Unavailable
14
BUSH
8CR-2376B-00-00
Unavailable
17
ARM, OUTSIDE 1
8CR-23851-00-00
Unavailable
18
ARM, OUTSIDE 2
8CR-23852-00-00
Unavailable
19
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
21
COLUMN, SKI ASSY
8CR-23803-01-00
Unavailable
22
BUSH, SOLID
90381-25115-00
Unavailable
23
WASHER, PLATE (25G)
90201-301G3-00
Unavailable
24
CAP 1
8CR-23741-00-00
Unavailable
25
ARM, FRONT 1
8CS-2382E-02-00
Unavailable
26
ARM,FRONT 2
8CS-2382F-02-00
Unavailable
27
DAMPER
8CR-2516A-00-00
Unavailable
28
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
29
BOLT(8CJ)
90101-12046-00
Unavailable
30
ARM, CONTROL 1
8CS-2384E-02-00
Unavailable
31
JOINT 2
8DN-23823-00-00
Unavailable
32
NUT, HEXAGON
95337-12600-00
Unavailable
33
ARM, CONTROL 2
8CS-2384F-01-00
Unavailable
34
JOINT 3
8DN-23832-00-00
Unavailable
35
NUT
95314-14600-00
Unavailable
36
BUSH, SOLID(8CJ)
90381-17110-00
Unavailable
37
COLLAR(8CJ)
90387-1009K-00
Unavailable
40
WASHER
8DF-23779-00-00
Unavailable
41
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
42
BOLT, FLANGE
90105-124A2-00
Unavailable
43
NUT, U FLANGE
95607-12200-00
Unavailable
44
BAR, STABILIZER FRONT
8CS-2386E-00-00
Unavailable
45
COVER, STABILIZER FRONT
8CR-2386H-00-00
Unavailable
46
BUSH, STABILIZER FRONT
8CR-2386G-00-00
Unavailable
47
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
48
JOINT, STABILIZER 1
8CR-2385L-00-00
Unavailable
49
COLLAR(8V7)
90387-087L3-00
Unavailable
50
BOLT, FLANGE
95817-08040-00
Unavailable
52
EMBLEM 15
8CR-77371-00-00
Unavailable
