- MM700A (MOUNTAIN MAX 700) 8CP1 1997
PRIMARY SHEAVE FOR MM600

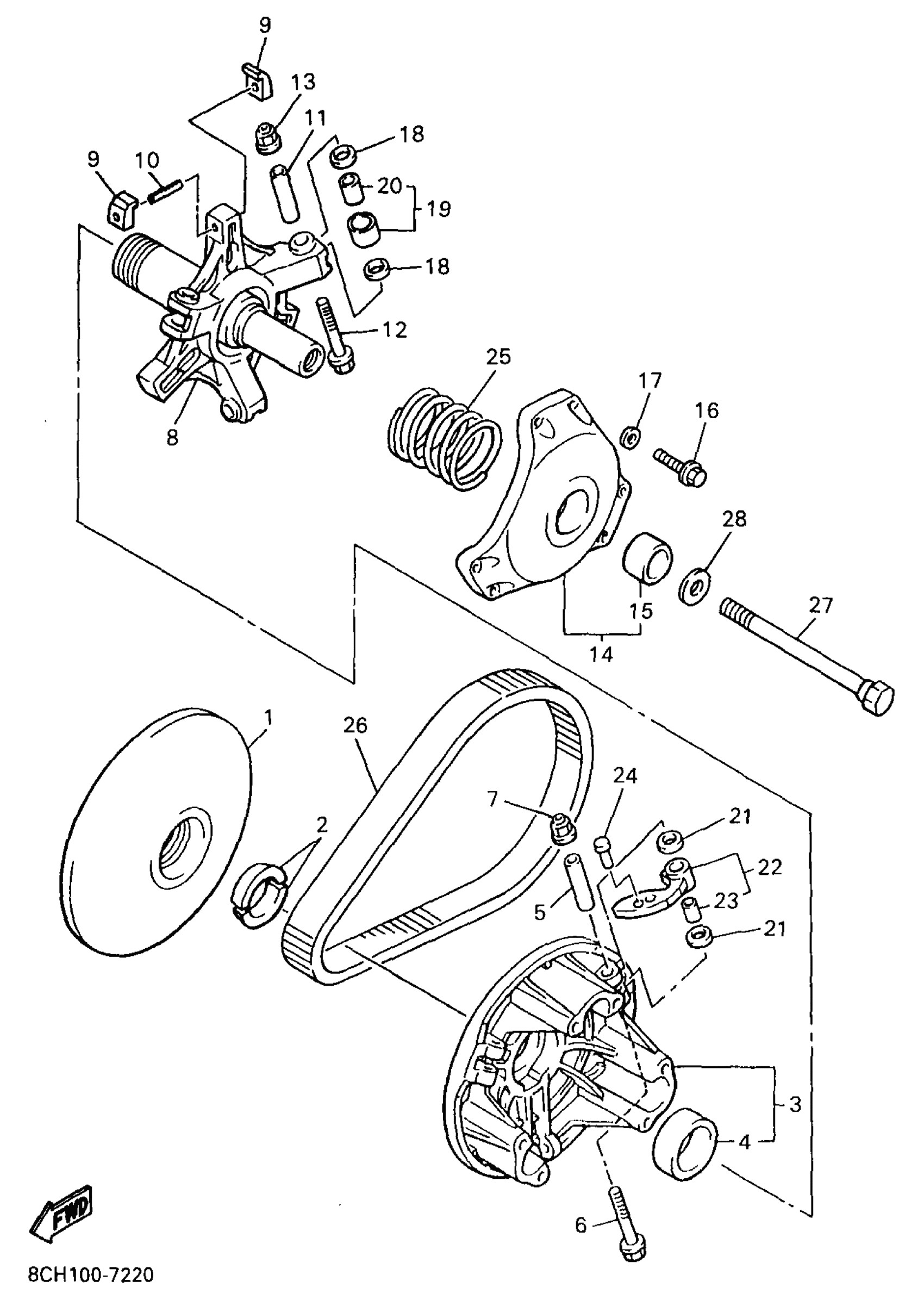

Yamaha MM700A (MOUNTAIN MAX 700) 8CP1 1997 PRIMARY SHEAVE FOR MM600 Diagram
#
1
SHEAVE, PRIMARY FIXED
8CR-17611-02-00
$212.99
2
STOPPER
8V0-17639-00-00
$14.99
3
PRIMARY SLIDING SHEAVE COMP.
8BV-17620-11-00
$437.99
4
BUSH, BIMETAL FORMED(8AS)
90384-41242-00
$60.99
5
COLLAR
90387-0514T-00
$16.99
6
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
7
NUT, S/L FLANGE
95607-05200-00
$9.49
8
SPIDER COMP.
8CA-17640-12-00
Unavailable
9
SLIDER
8BW-17653-00-00
$16.49
10
PIN, SPRING (7F7)
91609-50032-00
$4.14
11
COLLAR
90387-0514U-00
$20.99
12
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
13
NUT, S/L FLANGE
95607-05200-00
$9.49
14
PRIMARY SHEAVE CAP COMP.
8BV-17630-12-00
Unavailable
15
BUSH, SOLID(8CP)
90380-28237-00
$37.99
16
BOLT, HEXAGON
97017-06030-00
Unavailable
17
WASHER(6TA)
92907-06600-00
Unavailable
18
WASHER, PLATE(8BV)
90202-09227-00
Unavailable
19
ROLLER, COMP
8CR-17624-20-00
Unavailable
20
ROLLER BUSH
90380-09239-00
Unavailable
21
WASHER, PLATE(88R)
90202-08204-00
Unavailable
22
WEIGHT COMP
8CR-17605-10-00
Unavailable
23
. BUSH, SOLID
90380-08244-00
Unavailable
24
RIVET. COUNTERSUNK HEAD(8AK)
90261-06015-00
Unavailable
24
RIVET, COUNTER SUNK (8G8)
90261-06017-00
Unavailable
24
RIVET, COUNTERSUNK HEAD (8K8)
90261-06019-00
Unavailable
24
RIVET, COUNTERSUNK HEAD(88R)
90261-06028-00
Unavailable
24
RIVET, COUNTERSUNK (8AB1)
90261-06033-00
Unavailable
24
RIVET, COUNTERSUNK HEAD(8AB)
90261-06034-00
Unavailable
25
SPRING, COMPRESSION(89L)
90501-521J6-00
Unavailable
25
PRIMARY SPRING
90501-525J8-00
Unavailable
25
SPRING, COMPRESSION(8BH)
90501-526J9-00
Unavailable
25
SPRING, COMPRESSION(8AV)
90501-550J8-00
Unavailable
25
SPRING, COMPRESSION(8AB)
90501-555J9-00
Unavailable
25
SPRING, COMPRESSION(8AY)
90501-582J1-00
Unavailable
25
SPRING, COMPRESSION(8CG)
90501-585J3-00
Unavailable
25
SPRING, COMPRESSION(8BU)
90501-586J0-00
Unavailable
25
SPRING, COMPRESSION(8AY)
90501-602J0-00
Unavailable
25
SPRING, COMPRESSION(8CG)
90501-605J5-00
Unavailable
26
V-BELT
89L-17641-02-00
Unavailable
27
BOLT (L=156.5MM)
8V0-17647-10-00
Unavailable
28
WASHER(JN5)
92907-16100-00
Unavailable
