- MM700A (MOUNTAIN MAX 700) 8CP1 1997
INTAKE FOR MM700

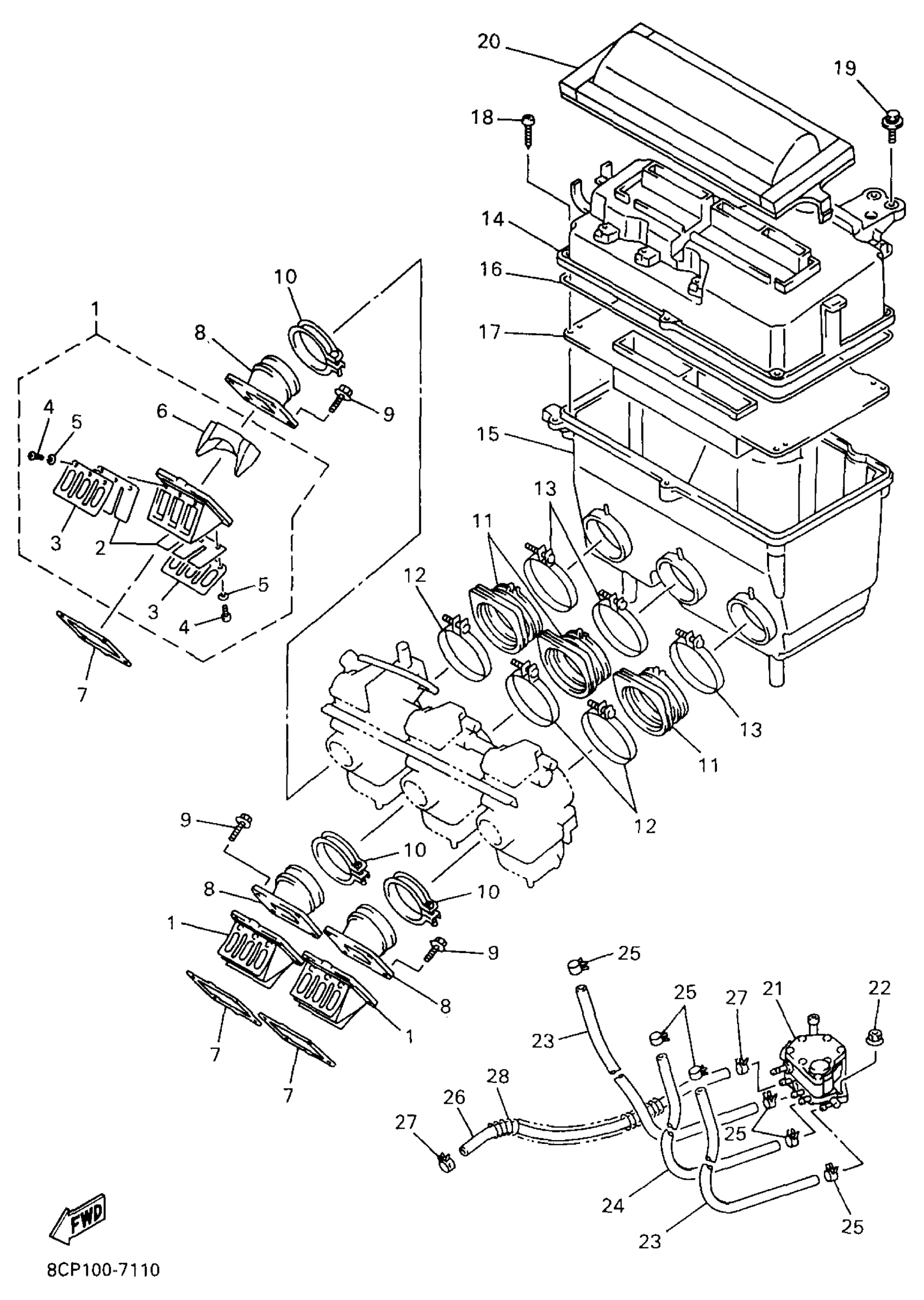

Yamaha MM700A (MOUNTAIN MAX 700) 8CP1 1997 INTAKE FOR MM700 Diagram
#
Description
Price
1
REED VALVE ASSY
4DA-13610-01-00
Unavailable
2
REED, VALVE
3SP-13613-01-00
$32.99
3
STOPPER, REED VALVE
8DJ-13616-00-00
$17.49
4
SCREW, PAN HEAD(3AC)
98517-03008-00
$2.97
5
WASHER, SPRING
92990-03100-00
$8.49
6
. SPACER, REED VALVE
4DA-13625-00-00
Unavailable
7
GASKET, VALVE SEAT
8CH-13621-01-00
$14.49
8
MANIFOLD, INTAKE
8CH-13555-00-00
Unavailable
9
BOLT, FLANGE
95817-06020-00
$3.81
10
BAND
86M-13575-00-00
$19.49
11
JOINT, AIR CLEANER 1
8CH-14453-00-00
$25.99
12
HOSE CLAMP ASSY
90450-53008-00
$10.49
13
CLAMP, HOSE (29L)
90460-68230-00
$16.99
14
SILENCER, INTAKE 1
8CH-14431-01-00
Unavailable
15
SILENCER, INTAKE 2
8CH-14441-01-00
Unavailable
16
SEAL
51Y-14462-00-00
Unavailable
17
PLATE
8CH-14477-00-00
Unavailable
18
SCREW, TAPPING(82M)
90167-05043-00
Unavailable
19
BOLT, WITH WASHER(3FC)
90119-06163-00
Unavailable
20
ELEMENT ASSY, AIR CLEANER
8CH-14450-00-00
Unavailable
21
FUEL PUMP ASSY
8CH-24410-00-00
Unavailable
22
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
23
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
24
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
25
CLIP (8A1)
90467-09026-00
Unavailable
26
HOSE (L450)
90445-10144-00
Unavailable
27
CLIP (3G0)
90467-10039-00
Unavailable
28
SPRING, COMPRESSION(7MX)
90501-084J0-00
Unavailable
