Description

Price

1

TOOL KIT

8CR-28100-00-00

Unavailable

2

TOOL BOX COMP.

4GY-21107-00-00

Unavailable

3

BAND,BATTERY

7H3-82131-00-00

$17.49

4

GUARD, DRIVE

8CR-77311-10-00

Unavailable

5

BRACKET 1

8CR-77315-00-00

Unavailable

6

STAY, BELT

8CR-77338-00-00

$5.49

7

RIVET, BLIND(8CR)

90267-47186-00

$2.97

8

LABEL, WARNING 2

8CY-77762-20-00

Unavailable

9

PIN

8CR-77384-01-00

$16.49

10

PIN(8E7)

91701-06082-00

$5.60

11

CLIP (7U6)

90468-18121-00

$7.49

12

PLUG HOLDER ASSY

8CR-77378-00-00

$41.99

12

PLUG HOLDER ASSY

8CR-77378-00-00

$41.99

13

RIVET, BLIND

90267-48060-00

$8.49

13

RIVET, BLIND

90267-48060-00

$8.49

14

WASHER, PLATE(39X)

90201-057H5-00

Unavailable

14

WASHER, PLATE(39X)

90201-057H5-00

Unavailable

15

DAMPER 1

8CR-77319-00-00

Unavailable

16

LABEL, CAUTION

8CH-1417E-00-00

Unavailable

16

LABEL, CAUTION

8CR-1417E-00-00

Unavailable

17

LABEL 1

8CR-47578-00-00

Unavailable

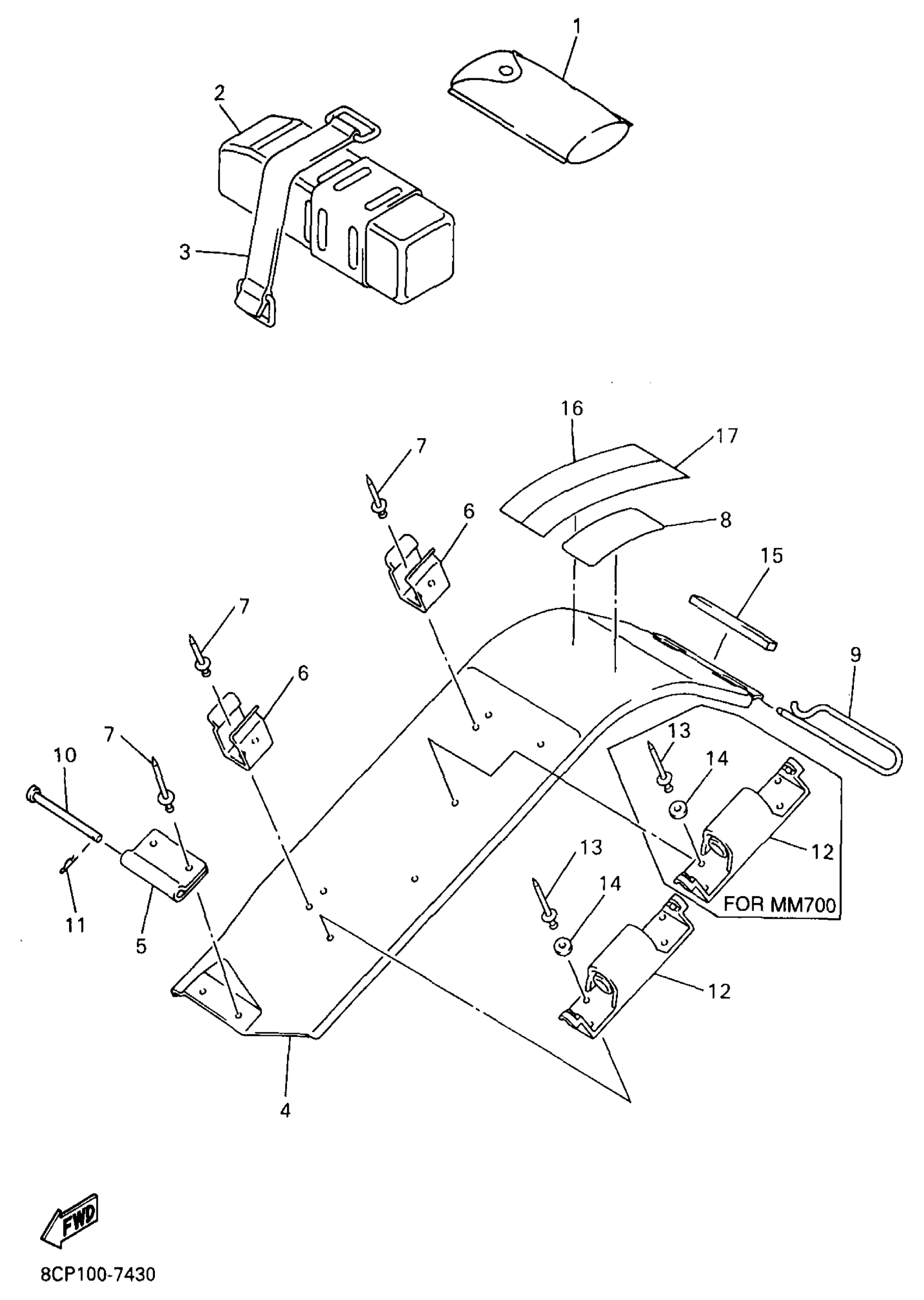

Yamaha MM700A (MOUNTAIN MAX 700) 8CP1 1997 GUARD LUGGAGE BOX Diagram

TOOL KIT

TOOL BOX COMP.

BAND,BATTERY

GUARD, DRIVE

BRACKET 1

STAY, BELT

RIVET, BLIND(8CR)

LABEL, WARNING 2

PIN

PIN(8E7)

CLIP (7U6)

PLUG HOLDER ASSY

PLUG HOLDER ASSY

RIVET, BLIND

RIVET, BLIND

WASHER, PLATE(39X)

WASHER, PLATE(39X)

DAMPER 1

LABEL, CAUTION

LABEL, CAUTION

LABEL 1
