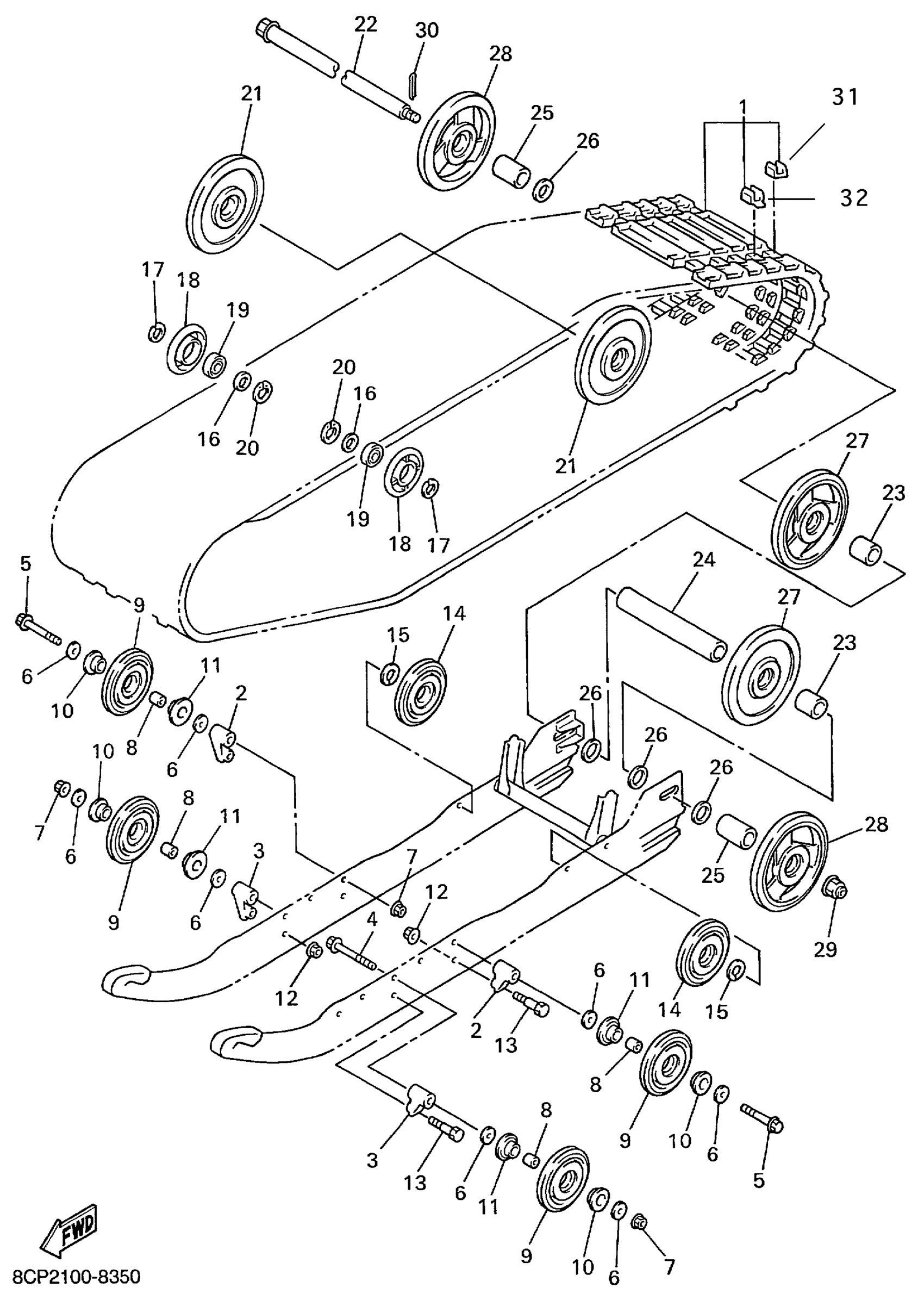

Yamaha MM600PC (MOUNTAIN MAX 600) 8CS3 1999 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8CP-47110-00-00

Unavailable

2

BRACKET 7

8DF-47419-00-00

Unavailable

3

BRACKET 7

8DF-47419-10-00

Unavailable

4

BOLT, WASHER BASED(59V)

90105-10392-00

$8.40

5

BOLT,FLANGE

95817-10090-00

$6.86

6

WASHER, PLATE(8CM)

90201-100S0-00

$5.00

7

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

8

COLLAR

90387-10079-00

Unavailable

9

BOGEY WHEEL W SPACERS & BEARIN

8CR-4731A-00-00

Unavailable

10

SPACER

8CR-47341-01-00

Unavailable

11

SPACER

8CR-47341-11-00

$10.69

12

NUT, SELF-LOCKING

90185-08169-00

$7.09

13

BOLT(8CM)

90101-08774-00

$4.63

14

BOGEY WHEEL W SPACERS & BEARIN

8CR-4731A-00-00

Unavailable

15

CIRCLIP(JF7)

99009-25400-00

$6.68

16

COLLAR(8AB)

90387-2004V-00

$9.15

17

CIRCLIP(1AR)

99009-20400-00

$6.17

18

SUSPENSION WHEEL COMP.

8H8-47320-00-00

$53.83

19

BEARING(8AB)

93306-00444-00

$35.70

20

CIRCLIP(5U8)

99009-42500-00

$6.77

21

GUIDE WHEEL ASSY

8CR-47550-00-00

$22.15

22

REAR AXLE COMP.

8L8-47520-02-00

$83.57

23

COLLAR

90387-2012E-00

$8.09

24

COLLAR

90387-2013L-00

$13.32

25

COLLAR

90387-2012D-00

$12.03

26

WASHER, PLATE(89W)

90201-205R6-00

$10.68

27

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

28

WHEEL RED PLASTIC ASSY

8CR-47550-21-RD

Unavailable

29

NUT, SELF-LOCKING (8BF)

95607-14200-00

$10.17

30

PIN, COTTER

91401-30025-00

$6.18

31

FLAT TRACK CLIP

8CP-47113-00-00

Unavailable

32

TRACK CLIP W/PLATE

8CP-47115-00-00

Unavailable
