Description

Price

1

PIPE 2

8CR-12482-00-00

Unavailable

2

CAP, RADIATOR

4FL-12462-00-00

$62.99

3

SUPT, FILLER NECK

8CR-12591-00-00

Unavailable

4

PIPE 3

8CR-12483-00-00

Unavailable

5

CLAMP 1

8CR-12491-00-00

Unavailable

6

BOLT, FLANGE

95817-06014-00

Unavailable

7

PIPE 4

8CW-12484-00-00

Unavailable

8

PIPE 5

8CR-12485-00-00

Unavailable

9

PIPE 6

8CR-12476-00-00

Unavailable

10

SPRING, COMPRESSION

90501-120K6-00

Unavailable

11

CLIP (8M6)

90467-28046-00

$16.99

12

CLIP (10V)

90467-23067-00

$7.49

13

HEAT EXCHANGER

8CW-1240E-03-00

Unavailable

14

HEAT EXCHANGER

8CW-1240F-03-00

Unavailable

15

RIVET, BLIND(8CR)

90267-47186-00

$2.97

16

HEAT EXCHANGER ASY

8CR-1241A-01-00

Unavailable

17

GASKET (4V2)

90430-06166-00

Unavailable

18

BOLT, FLANGE

95817-06016-00

Unavailable

19

RIVET, BLIND(8CR)

90267-47186-00

$2.97

20

COCK ASSY

8CR-1249A-01-00

Unavailable

21

. SEAL, COCK

8CH-24534-00-00

Unavailable

22

SCREW, BINDING

98907-06020-00

Unavailable

23

HOSE 1

8CR-1243A-00-00

Unavailable

24

HOSE 2

8CR-1243E-00-00

Unavailable

25

CLIP

90467-11028-00

Unavailable

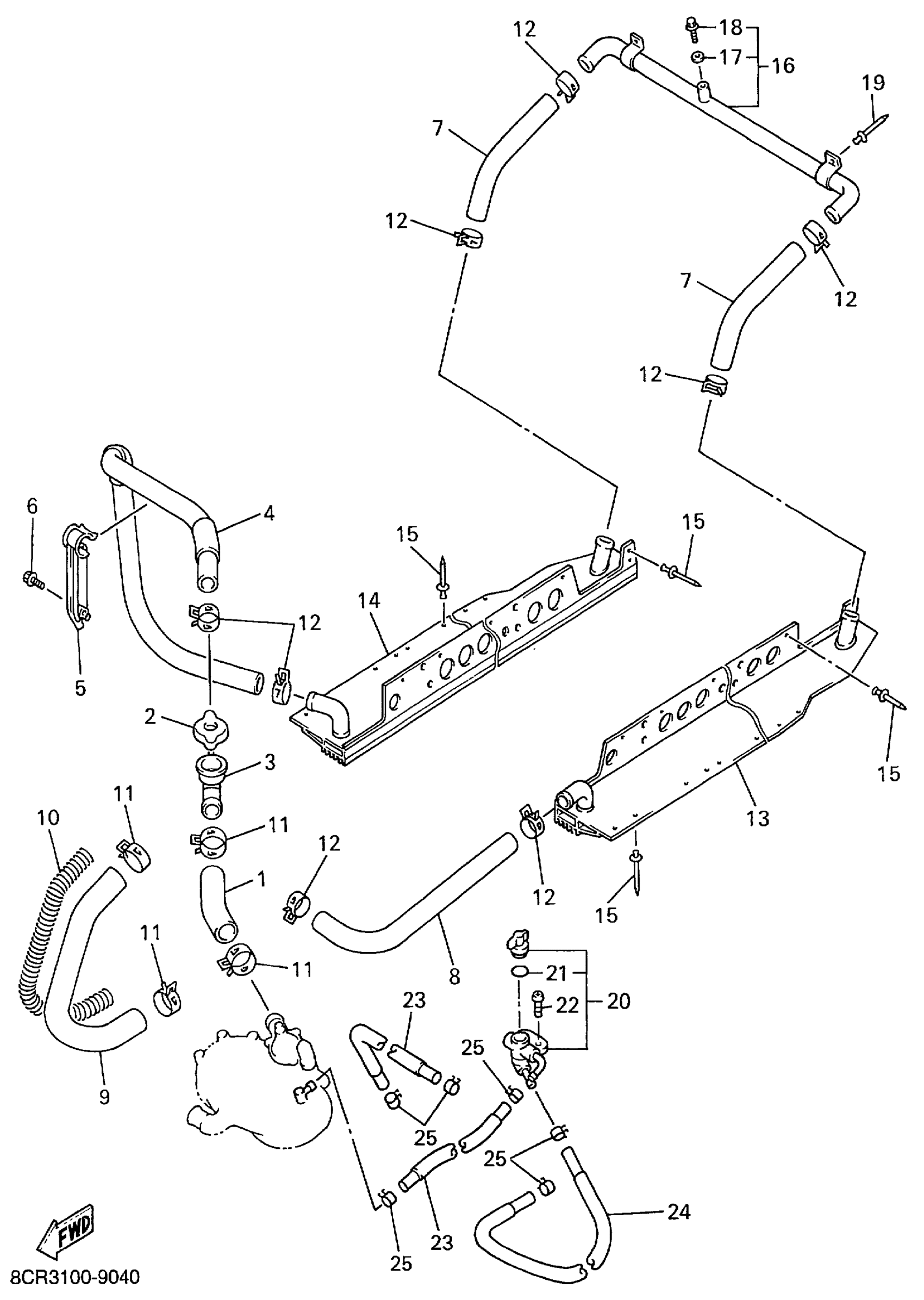

Yamaha MM600PC (MOUNTAIN MAX 600) 8CS3 1999 RADIATOR HOSE Diagram

PIPE 2

CAP, RADIATOR

SUPT, FILLER NECK

PIPE 3

CLAMP 1

BOLT, FLANGE

PIPE 4

PIPE 5

PIPE 6

SPRING, COMPRESSION

CLIP (8M6)

CLIP (10V)

HEAT EXCHANGER

HEAT EXCHANGER

RIVET, BLIND(8CR)

HEAT EXCHANGER ASY

GASKET (4V2)

BOLT, FLANGE

RIVET, BLIND(8CR)

COCK ASSY

. SEAL, COCK

SCREW, BINDING

HOSE 1

HOSE 2

CLIP
