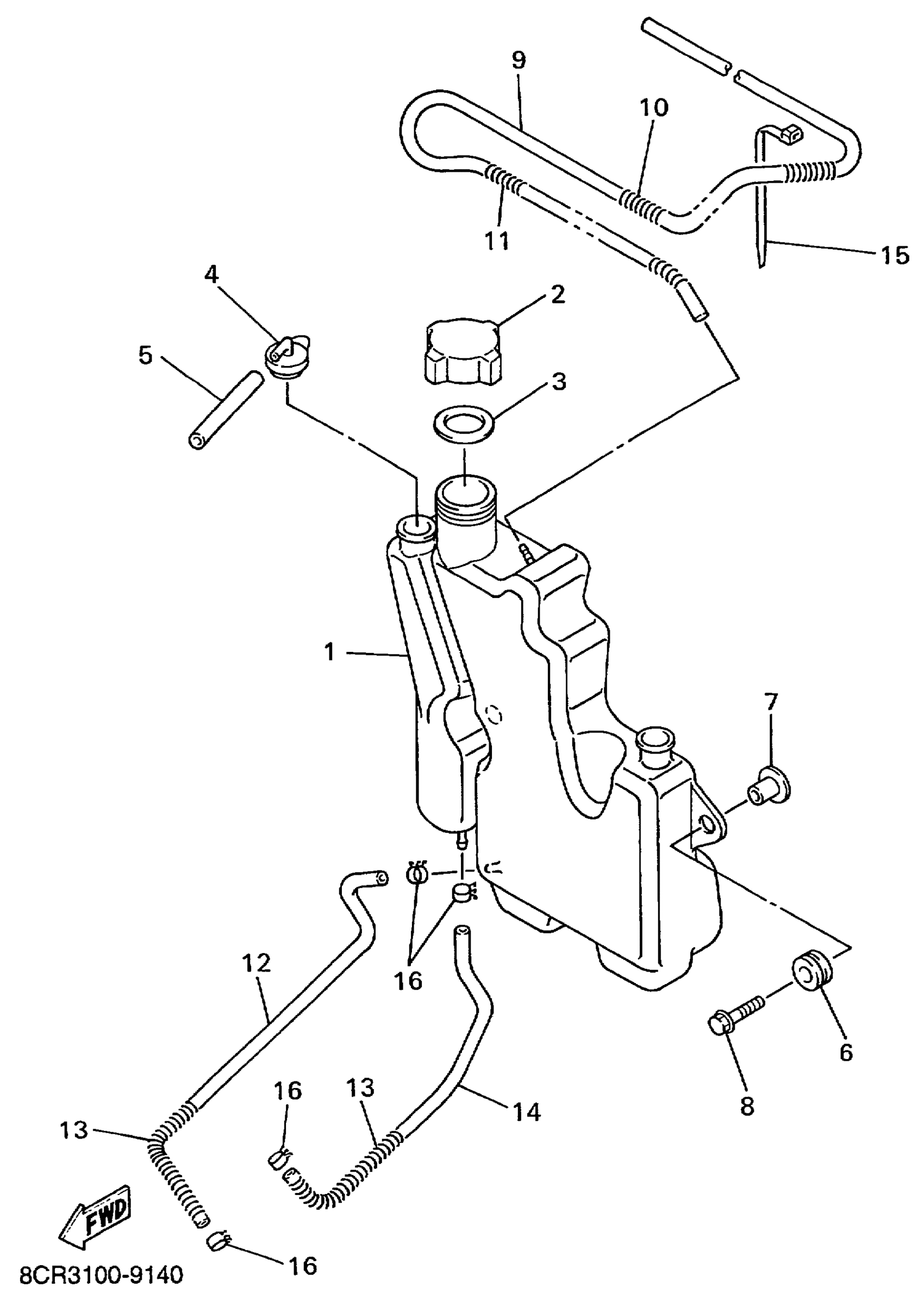

Yamaha MM600PC (MOUNTAIN MAX 600) 8CS3 1999 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8CR-21751-10-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

CAP

89A-21815-00-00

$24.99

5

HOSE (L70)

90445-112E0-00

$8.49

6

GROMMET 839774310000

90480-14023-00

$7.49

7

COLLAR(52E)

90387-063G3-00

$8.49

8

BOLT, FLANGE

95817-06025-00

Unavailable

9

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

10

SPRING, COMPRESSION (10L)

90501-08668-00

$11.49

11

SPRING, COMPRESSION(3JK)

90501-101J5-00

$19.99

12

TUBE, FLEXIBLE VINYL

91A30-05033-00

Unavailable

13

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

14

HOSE (L600)

90445-083J5-00

$10.49

15

CLAMP(4FM)

90464-15195-00

$4.41

16

CLIP (8A1)

90467-09026-00

Unavailable
