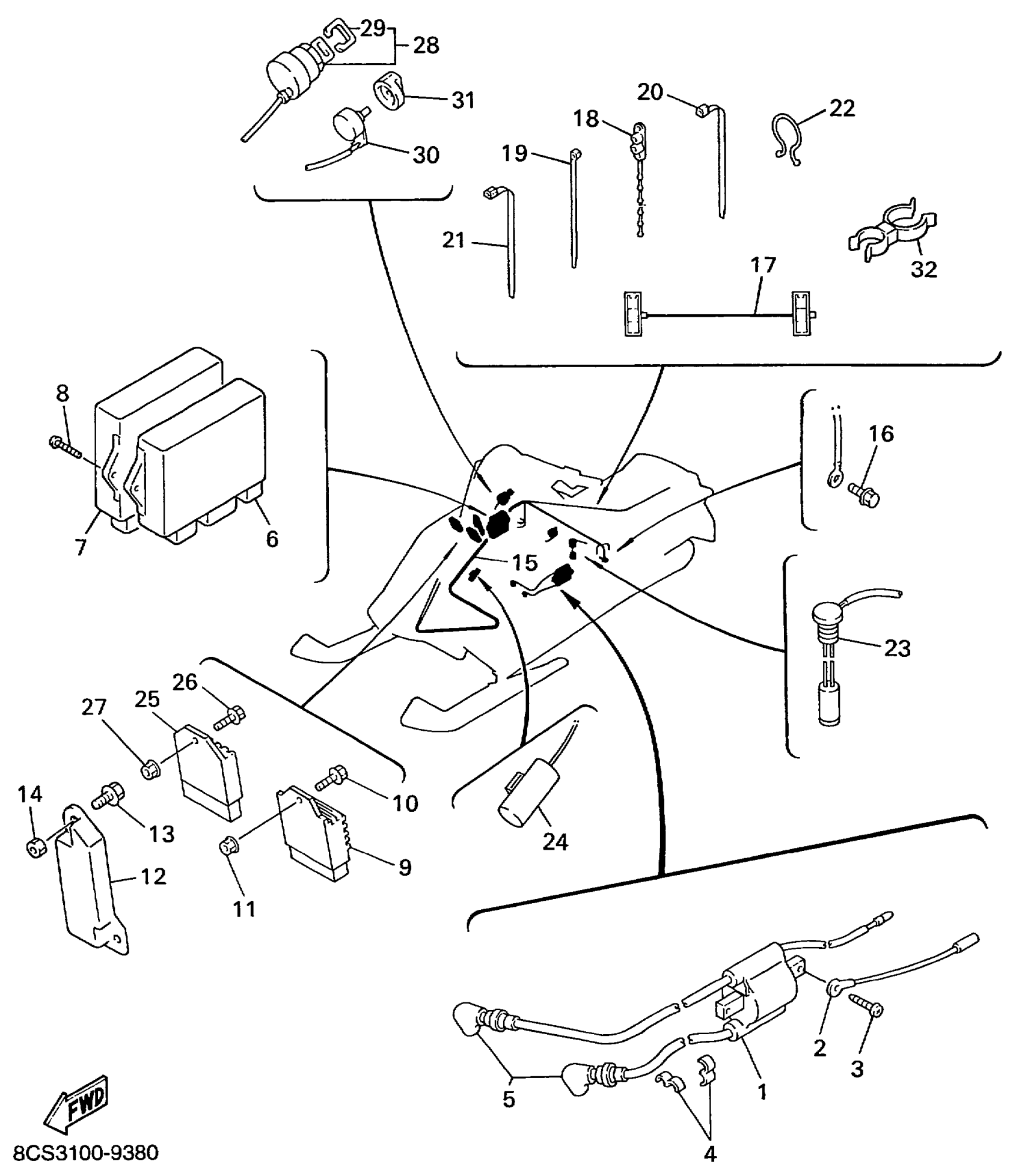

Yamaha MM600PC (MOUNTAIN MAX 600) 8CS3 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8AB-82310-07-00

Unavailable

2

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

3

SCREW, TAPPING(65J)

97780-60625-00

$2.75

4

CLAMP, CORD

861-82361-00-00

$5.34

5

PLUG CAP ASSY

8DG-82370-00-00

$44.26

6

C.D.I. UNIT ASSY

8CR-85540-10-00

Unavailable

7

ELECTRONIC CONTROL

8CS-85940-00-00

Unavailable

8

SCREW, TAPPING

97707-60135-00

Unavailable

9

RECTIFIER & REGULATOR ASSY

8DX-81960-00-00

Unavailable

10

BOLT, FLANGE

95817-06016-00

$1.49

11

NUT, FLANGE(4MV)

95707-06500-00

$0.78

12

RECTIFIER & REGULAT0R ASSY

1JK-81960-A1-00

$106.09

13

BOLT(8CP)

97017-06014-00

$5.12

14

NUT, FLANGE(4MV)

95707-06500-00

$0.78

15

WIRE HARNESS ASSEMBLY

8CS-82590-10-00

Unavailable

16

BOLT, FLANGE

95817-06016-00

$1.49

17

WIRE, LEAD

8CR-8471G-00-00

Unavailable

18

CLAMP

90464-20031-00

$2.62

19

CLAMP(4FM)

90464-15195-00

$2.77

20

CLAMP(4FM)

90464-15195-00

$2.77

21

CLAMP

90464-13077-00

$6.68

22

CLAMP

90464-25267-00

$5.62

23

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

$44.61

24

CONDENSER, SMOOTHING

1NL-81965-01-00

$99.88

25

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

26

BOLT, FLANGE

95817-06016-00

$1.49

27

NUT, FLANGE(4MV)

95707-06500-00

$0.78

28

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

29

CAP, KEY

526-82579-00-00

$6.72

30

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

31

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable

32

CLAMP

90464-21256-00

$3.46
