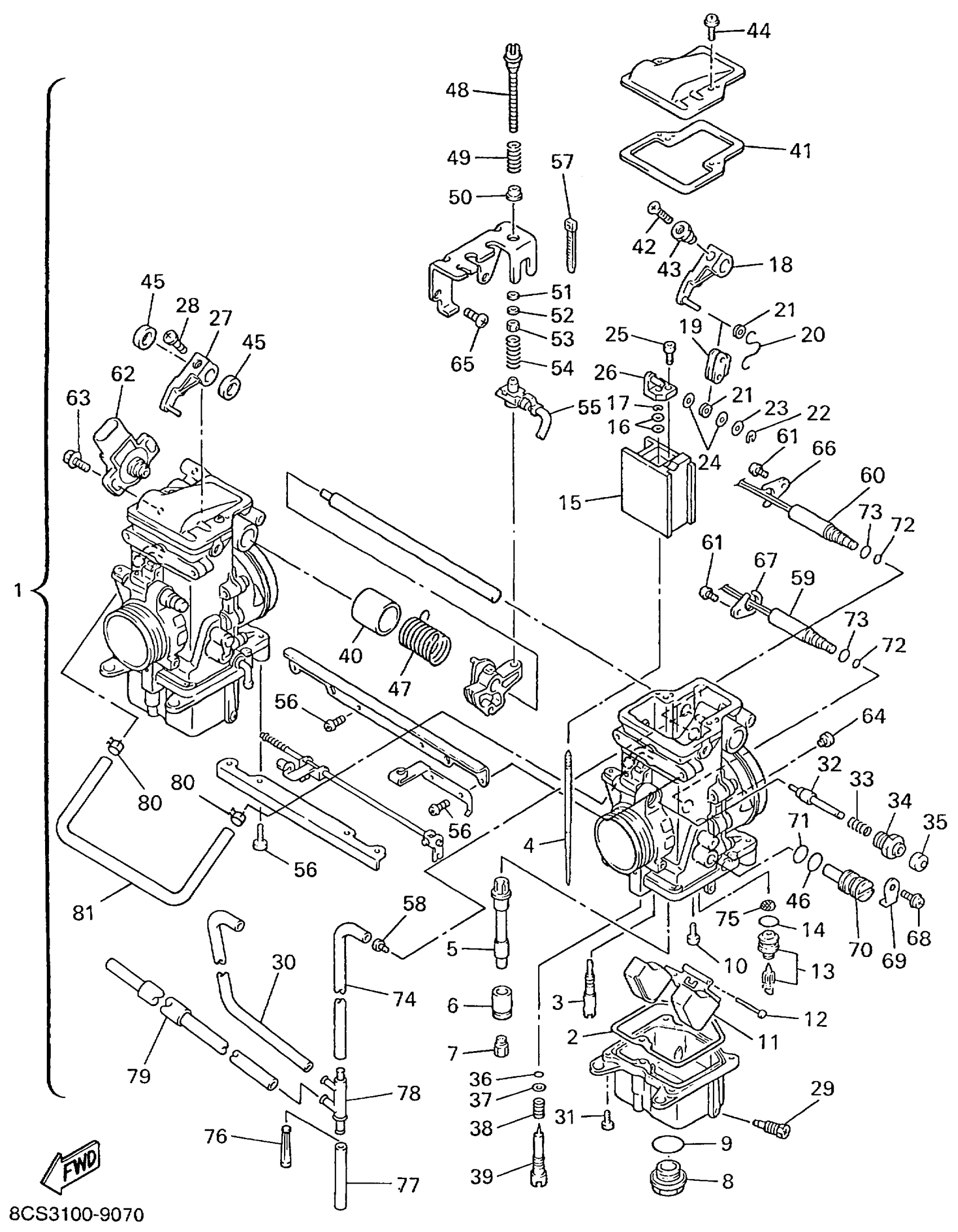

Yamaha MM600PC (MOUNTAIN MAX 600) 8CS3 1999 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY
8CW-14100-20-00
Unavailable
2
O-RING
8AY-14147-00-00
$14.49
3
. JET, PILOT (# 65)
3H1-14142-65-00
Unavailable
4
. NEEDLE
8CR-14116-A3-00
Unavailable
5
. NOZZLE, MAIN
8AY-14141-56-00
Unavailable
6
. RING
8CA-14194-00-00
Unavailable
7
JET, MAIN (#160)
3G2-14231-32-00
Unavailable
8
PLUG, SCREW
500-14115-00-00
$29.99
9
O-RING (541)
558-14147-00-00
$9.99
10
SCREW
2LN-14565-00-00
$7.99
11
. FLOAT
8AY-14185-10-00
Unavailable
12
PIN, FLOAT
537-14186-00-00
$7.99
13
NEEDLE VALVE ASSY
1AE-14190-15-00
$49.99
14
O-RING
8F2-14147-00-00
$2.96
15
. VALVE, THROTTLE 1
8CJ-14112-25-00
Unavailable
16
WASHER
8AB-14227-00-00
Unavailable
17
CLIP
256-14919-00-00
Unavailable
18
LEVER, STARTER
8CW-14905-00-00
Unavailable
19
. PLATE
8AY-14243-00-00
Unavailable
20
. CLIP
8CD-14137-00-00
Unavailable
21
. RING
8CC-14918-00-00
Unavailable
22
CLIP
3MA-14937-00-00
Unavailable
23
GASKET
620-14198-00-00
Unavailable
24
GASKET
3GF-14126-00-00
Unavailable
25
. SCREW
8CC-14216-00-00
Unavailable
26
CONNECTOR
8CD-14188-00-00
Unavailable
27
LEVER,STARTER
8CW-14905-10-00
Unavailable
28
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
29
PLUG, DRAIN
3FV-14191-00-00
Unavailable
30
. PIPE
4JG-14197-00-00
Unavailable
31
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
32
. PLUNGER, STARTER
8CW-14171-00-00
Unavailable
33
. SPRING, PLUNGER
256-14135-00-00
Unavailable
34
. CAP, PLUNGER
1FN-14174-00-00
Unavailable
35
. COVER, PLUNGER CAP
302-14173-00-00
Unavailable
36
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
37
WASHER, PILOT SCREW
3H1-14962-00-00
Unavailable
38
SPRING
5K7-14134-00-00
Unavailable
39
SCREW, ADJ.
89A-14565-00-00
Unavailable
40
. COLLAR
8AY-14265-00-00
Unavailable
41
. GASKET
8AY-14199-00-00
Unavailable
42
. SCREW, FLAT HEAD (98701-05018-00)
98703-05018-00
Unavailable
43
. RING
8AY-14918-00-00
Unavailable
44
SCREW, PAN HEAD WITH WASHER
97607-04108-00
Unavailable
45
. SPACER
583-14264-00-00
Unavailable
46
O-RING
3EN-14147-00-00
Unavailable
47
SPRING
8CJ-14275-00-00
Unavailable
48
SCREW, THROTTLE
8CC-14122-00-00
Unavailable
49
SPRING
8X0-14500-00-00
Unavailable
50
RING
8X0-14184-00-00
Unavailable
51
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
52
. WASHER
1UF-14952-00-00
Unavailable
53
NUT
89A-14594-00-00
Unavailable
54
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
55
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
56
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
57
CLIP, PIPE
35H-14139-00-00
Unavailable
58
.. JET, AIR (120)
8CC-14232-24-00
Unavailable
59
FUEL CUT SOL.VALVE
8CC-1410H-11-00
Unavailable
60
FUEL CUT SOLENOID VALVE
8CC-1410H-01-00
Unavailable
61
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
62
. THROTTLE SENSOR ASSEMBLY
8CC-85885-00-00
Unavailable
63
SCREW
8CC-14216-10-00
Unavailable
64
. JET, AIR (# 85)
8CC-14232-17-00
Unavailable
65
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
66
. PLATE
8CC-14243-00-00
Unavailable
67
. PLATE
8CC-14243-10-00
Unavailable
68
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
69
. PLATE
8CC-14243-20-00
Unavailable
70
. HOLDER, NOZZLE
8CC-14244-00-00
Unavailable
71
. O-RING
8CC-14147-00-00
Unavailable
72
. O-RING
8CC-14147-10-00
Unavailable
73
. O-RING
8CC-14147-20-00
Unavailable
74
. PIPE
8CW-14197-00-00
Unavailable
75
NET, FILTER
1J7-14994-00-00
Unavailable
76
. NET, FILTER 1
8CW-24514-00-00
Unavailable
77
. PIPE
8CW-14197-10-00
Unavailable
78
. CONNECTOR
8CW-1410F-00-00
Unavailable
79
. PIPE
8CW-14197-20-00
Unavailable
80
CLIP (3G0)
90467-10039-00
Unavailable
81
. HOSE
8CJ-14143-48-10
Unavailable
