Description

Price

1

OIL PUMP ASSY

3L5-13101-01-00

Unavailable

2

OIL SEAL (J10)

93101-10090-00

$8.49

3

O-RING

93210-26240-00

$8.49

4

GASKET 137131870000

90430-04004-00

$9.49

5

SCREW (3L5)

90149-04135-00

$1.11

6

PLATE, ADJUSTING

384-13138-00-00

$6.99

7

NUT

90170-10105-00

Unavailable

8

BOLT, UNION (527 CKD)

90401-10029-00

Unavailable

9

PIPE, DELIVERY 1 (L200)

34M-13161-00-00

$7.99

10

PIN, DOWEL

93603-14026-00

$8.49

11

CIRCLIP

99080-07600-00

Unavailable

12

PIPE, DELIVERY 1 (L200)

34M-13161-00-00

$7.99

13

CLIP (214-13164-00)

90468-02033-00

$8.49

14

UNAVAILABLE IN PRICE BOOK (98503-05020)

98580-05020-0

Unavailable

15

SCREW, PAN

98507-05035-00

$8.49

16

COVER, OIL PUMP

17J-15416-00-00

Unavailable

17

COVER, OIL PUMP 2

3L5-15426-00-00

Unavailable

18

SCREW, PANHEAD TAPPING (682)

97780-50514-00

Unavailable

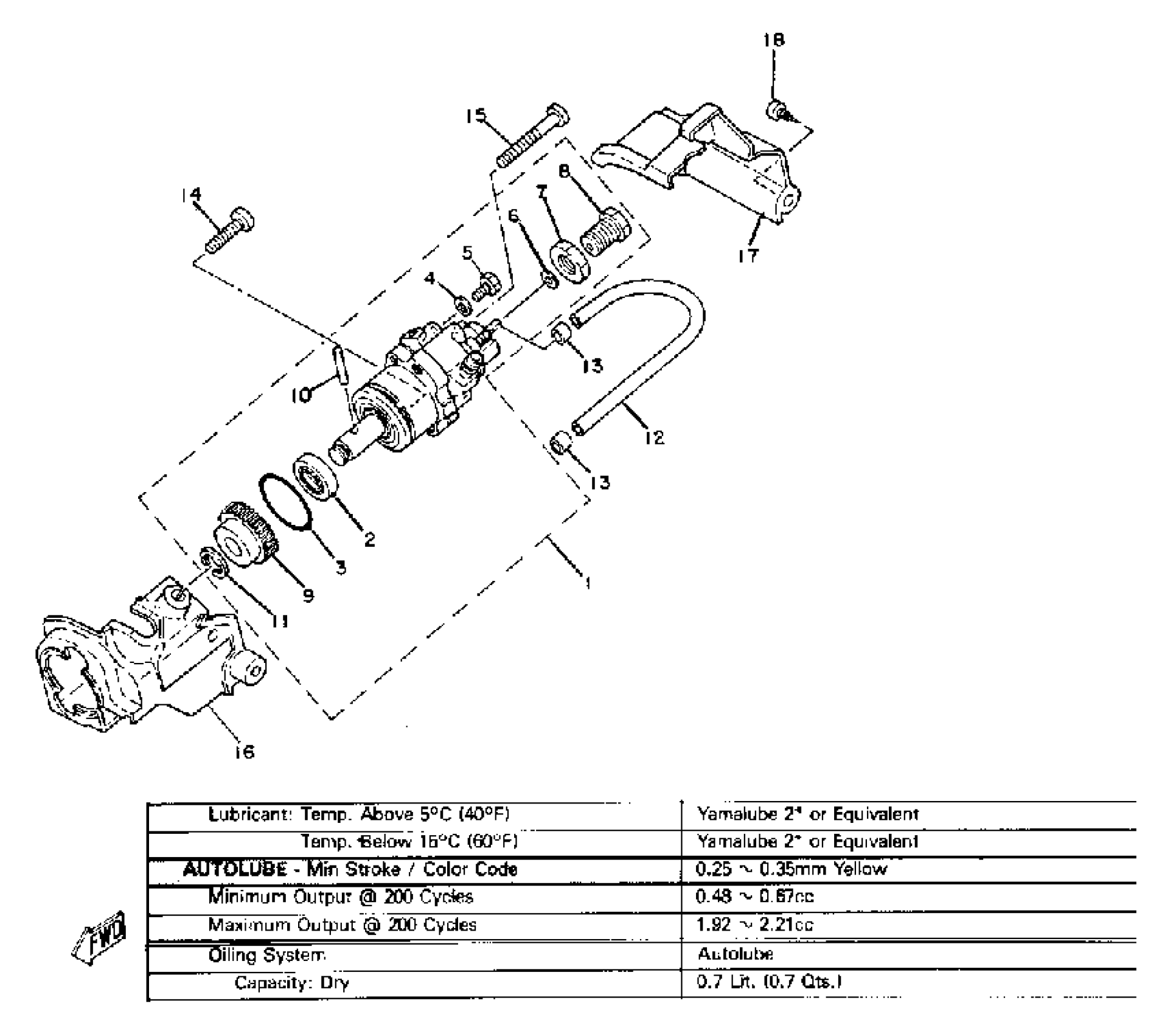

Yamaha MJ50J (MJ5O) 1982 OIL PUMP Diagram

OIL PUMP ASSY

OIL SEAL (J10)

O-RING

GASKET 137131870000

SCREW (3L5)

PLATE, ADJUSTING

NUT

BOLT, UNION (527 CKD)

PIPE, DELIVERY 1 (L200)

PIN, DOWEL

CIRCLIP

PIPE, DELIVERY 1 (L200)

CLIP (214-13164-00)

UNAVAILABLE IN PRICE BOOK (98503-05020)

SCREW, PAN

COVER, OIL PUMP

COVER, OIL PUMP 2

SCREW, PANHEAD TAPPING (682)
