1982 Yamaha MJ5O (MJ50J) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1982 Yamaha MJ5O (MJ50J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

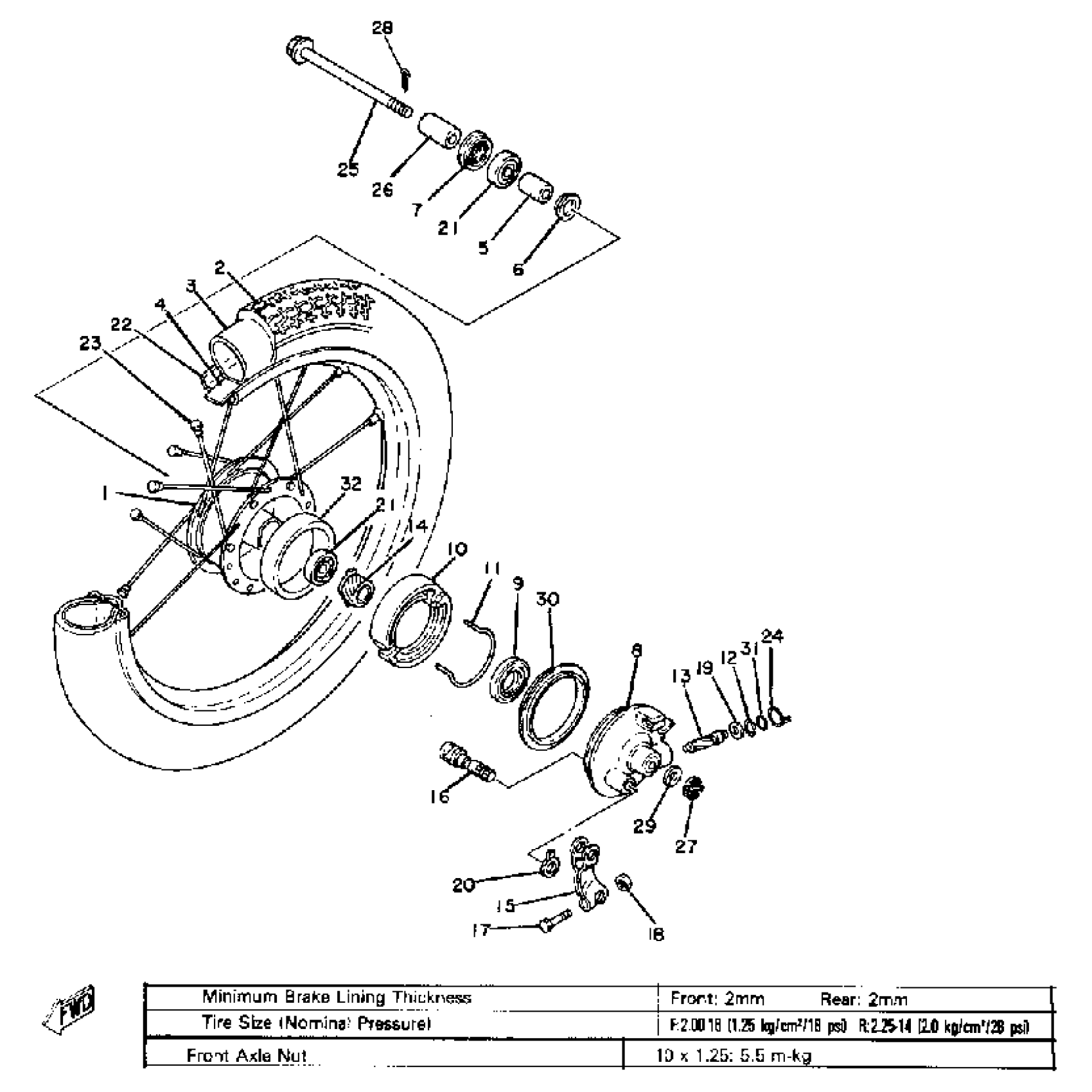

1982 Yamaha MJ5O (MJ50J) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(3L5-25111-01-98)

1
Out of stock

2

200X16 IRC FRONT

94120-16462-00

1
Out of stock

3

TUBE 200X16

94220-16160-00

1
Out of stock

4

BAND, RIM

94330-16058-00

1

$18.18

In stock

5

SPACER

90560-10173-00

1

$11.78

In stock

6

FLANGE, SPACER 2

2E9-25116-00-00

1

$6.38

In stock

7

OIL SEAL (2E9)

93106-17015-00

1

$9.71

In stock

8

PLATE, BRAKE SHOE

(4J2-25121-00-98)

1
Out of stock

9

OIL SEAL(2JA)

93109-34057-00

1

$4.20

In stock

10

BRAKESHOE SET-2PCS

2E9-W2535-00-00

1
Out of stock

11

SPRING, SHOE RETURN

2E9-25133-00-00

1

$7.34

In stock

12

RING, STOP

2T4-25137-00-00

—

$3.15

In stock

13

GEAR, METER

4J2-25138-00-00

1
Out of stock

14

GEAR, DRIVE

4J2-25135-00-00

1
Out of stock

15

LEVER, CAMSHAFT 1

(4J2-25155-00-00)

1
Out of stock

16

CAMSHAFT

25K-25151-00-00

1
Out of stock

17

BOLT

90101-05488-00

1
Out of stock

18

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

19

WASHER,PLATE (2JA)

90201-064L6-00

—

$4.11

In stock

20

INDICATOR

3L8-2513A-00-00

—

$6.38

In stock

20

—

$3.00

In stock

21

BEARING (3R0)

93306-20009-00

—

$38.79

In stock

22

RIM 1.20X16

94412-16260-00

1
Out of stock

23

SPOKE SET, FRONT

4J2-25104-00-00

1
Out of stock

24

RING (STOP)

2E9-25137-01-00

—

$6.46

In stock

25

AXLE,WHEEL

99999-02824-00

1
Out of stock

26

COLLAR (2E9)

90387-10620-00

—
Out of stock

27

NUT 3532518200

90171-10004-00

—

$5.32

In stock

28

PIN, COTTER

91490-20025-00

—

$1.31

In stock

30

RING 1

3L5-25185-00-00

1
Out of stock

31

O-RING (611)

93210-10096-00

—

$3.11

In stock

32

RING 1

(4J2-25185-01-00)

1
Out of stock
