1982 Yamaha MJ5O (MJ50J) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1982 Yamaha MJ5O (MJ50J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

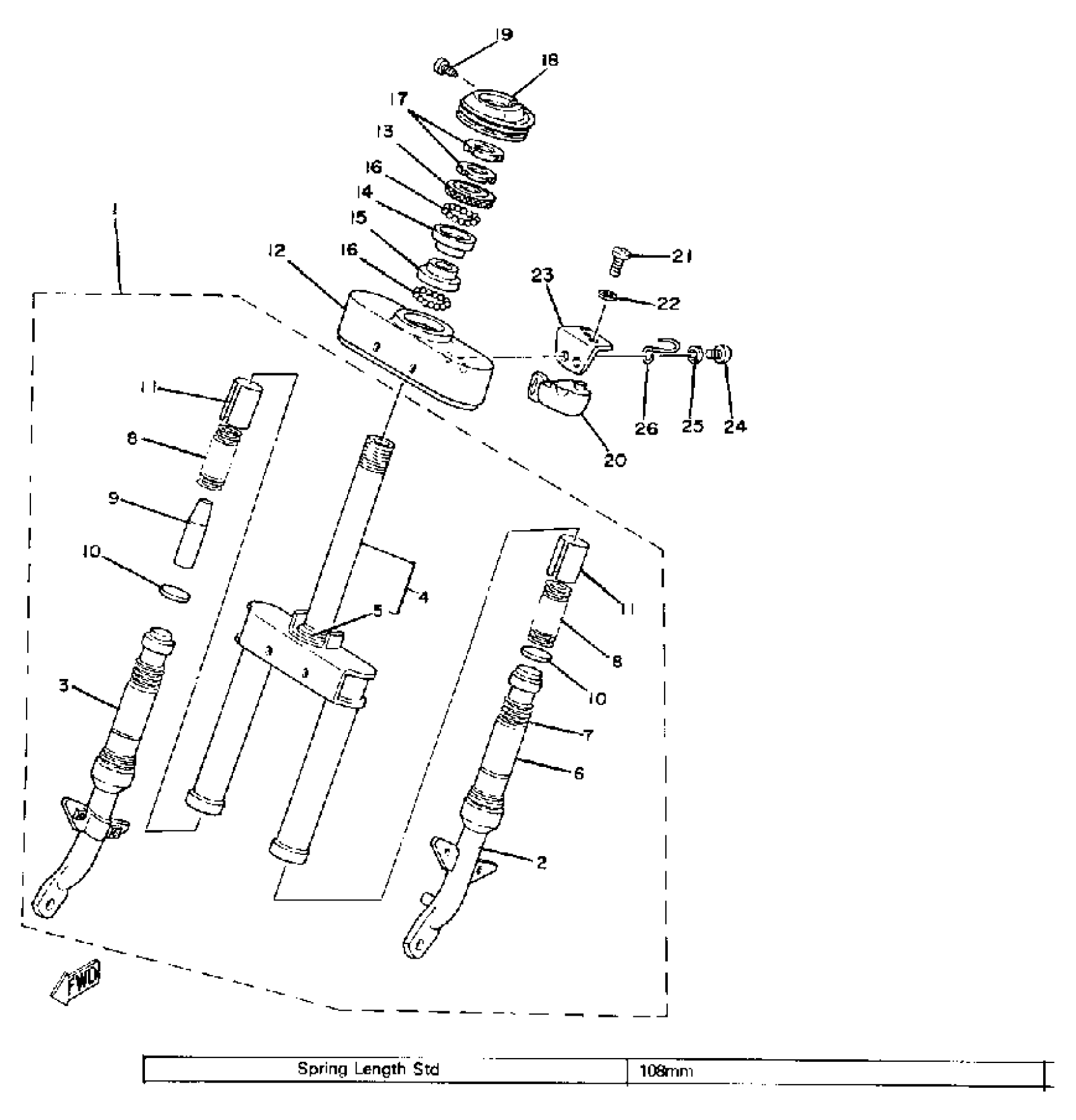

1982 Yamaha MJ5O (MJ50J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(4J2-23100-01-1A)

1
Out of stock

1

FRONT FORK ASSEMBLY

(4J2-23100-01-5F)

1
Out of stock

2

. INNER TUBE 1

4J2-23110-00-00

1
Out of stock

3

INNER TUBE 2

(4J2-23120-00-00)

1
Out of stock

4

. UNDER BRACKET

4J2-23340-01-1A

1
Out of stock

4

. UNDER BRACKET

4J2-23340-01-5F

1
Out of stock

5

RACE, BALL 4

3YJ-23414-00-00

1

$5.46

In stock

6

COLLAR

(4J2-23113-00-00)

1
Out of stock

7

SPRING, REBOUND

36R-23151-00-00

1
Out of stock

8

. SPRING, FRONT FORK

4J2-23141-00-00

1
Out of stock

9

RUBBER

3L5-23195-00-00

1
Out of stock

10

SEAT, SPRING UNDER

2E9-23143-00-00

—

$8.97

In stock

11

COVER, RING

(4J2-2331M-00-00)

1
Out of stock

12

PANEL, OUTER 1

(4J2-23311-11-00)

1
Out of stock

12

U.R. NEW WHITENO LONGER AVAILABLE

4J2-23311-21-00

1
Out of stock

13

RACE, BALL 1

3KJ-23411-01-00

—

$19.98

In stock

14

RACE, BALL 2

2SA-23412-00-00

—

$26.00

In stock

15

RACE, BALL 3

2SA-23413-00-00

—

$26.08

In stock

16

BALL

93505-32002-00

—

$2.22

In stock

17

NUT, FITTING 2

2E9-23454-00-00

—

$8.17

In stock

18

COVER, BALL RACE 1

4J2-23415-00-00

1
Out of stock

19

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

20

STEERING LOCK ASSEMBLY

4K6-23408-00-00

1
Out of stock

21

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

STAY, PLATE

(4J2-23486-01-00)

1
Out of stock

24

SCREW, PAN

98507-06014-00

—

$6.18

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

CLAMP

(90465-26165-00)

1
Out of stock
