Description

Price

1

EXHAUST PIPE ASSEMBLY L

4J2-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

2E9-14613-10-00

$7.99

3

SCREW, HEXAGON(1YU)

90153-06061-00

$8.49

4

BOLT, HEXAGON

97017-08020-00

$9.49

5

WASHER(JN5)

92907-08100-00

$8.49

6

WASHER(6TA)

92907-08600-00

$3.03

7

PROTECTOR, MUFF1

4J2-14718-00-00

Unavailable

8

WASHER, PLATE(3AJ)

90202-05191-00

$9.49

9

SCREW, PAN

98507-06010-00

$3.55

10

SCREW, BINDING

98907-06012-00

$9.49

11

GROMMET (2T4)

90480-12237-00

$2.55

12

COLLAR 8121444900

90387-06023-00

$9.49

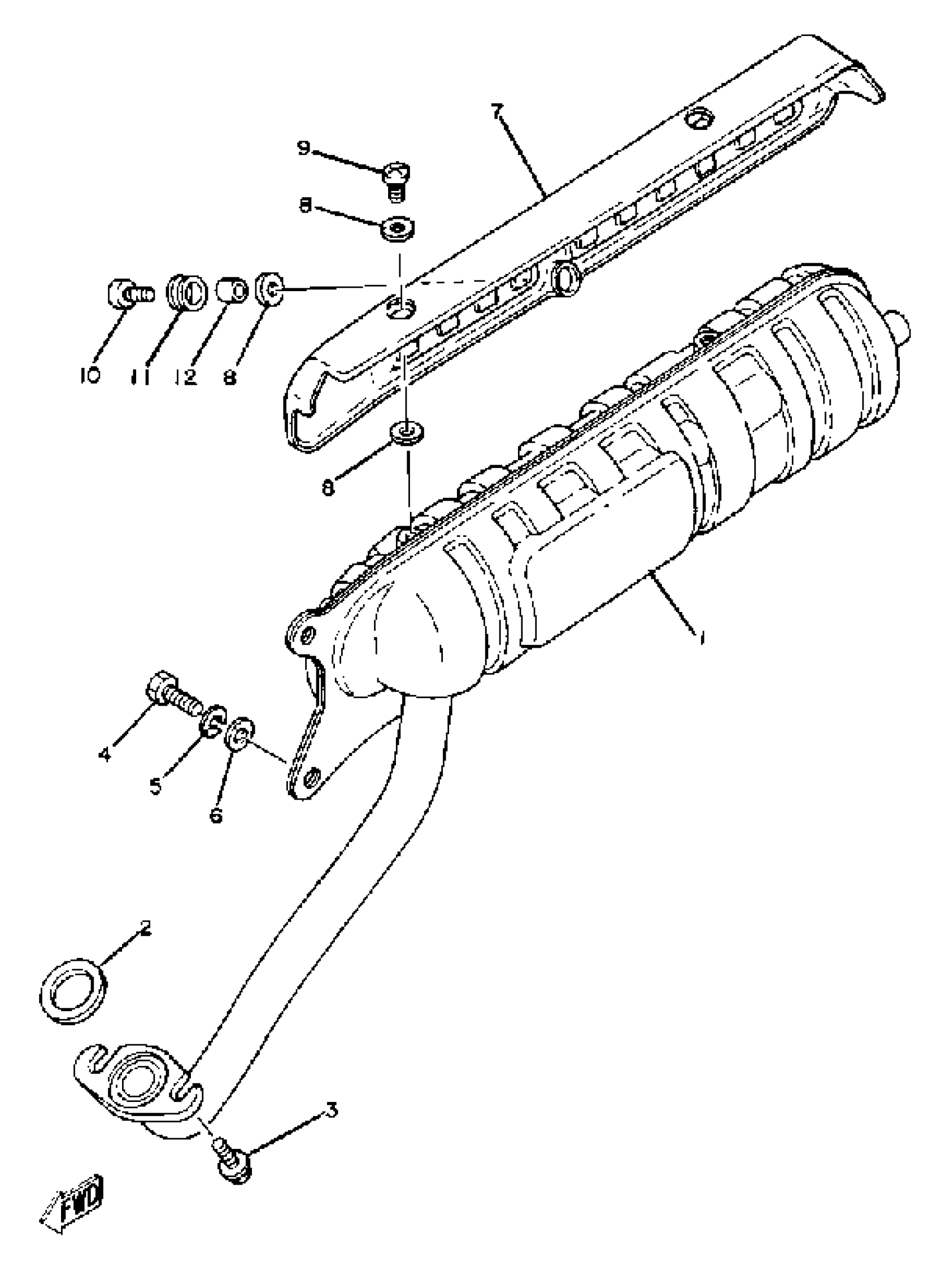

Yamaha MJ50J (MJ5O) 1982 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY L

GASKET, EXHAUST PIPE

SCREW, HEXAGON(1YU)

BOLT, HEXAGON

WASHER(JN5)

WASHER(6TA)

PROTECTOR, MUFF1

WASHER, PLATE(3AJ)

SCREW, PAN

SCREW, BINDING

GROMMET (2T4)

COLLAR 8121444900
