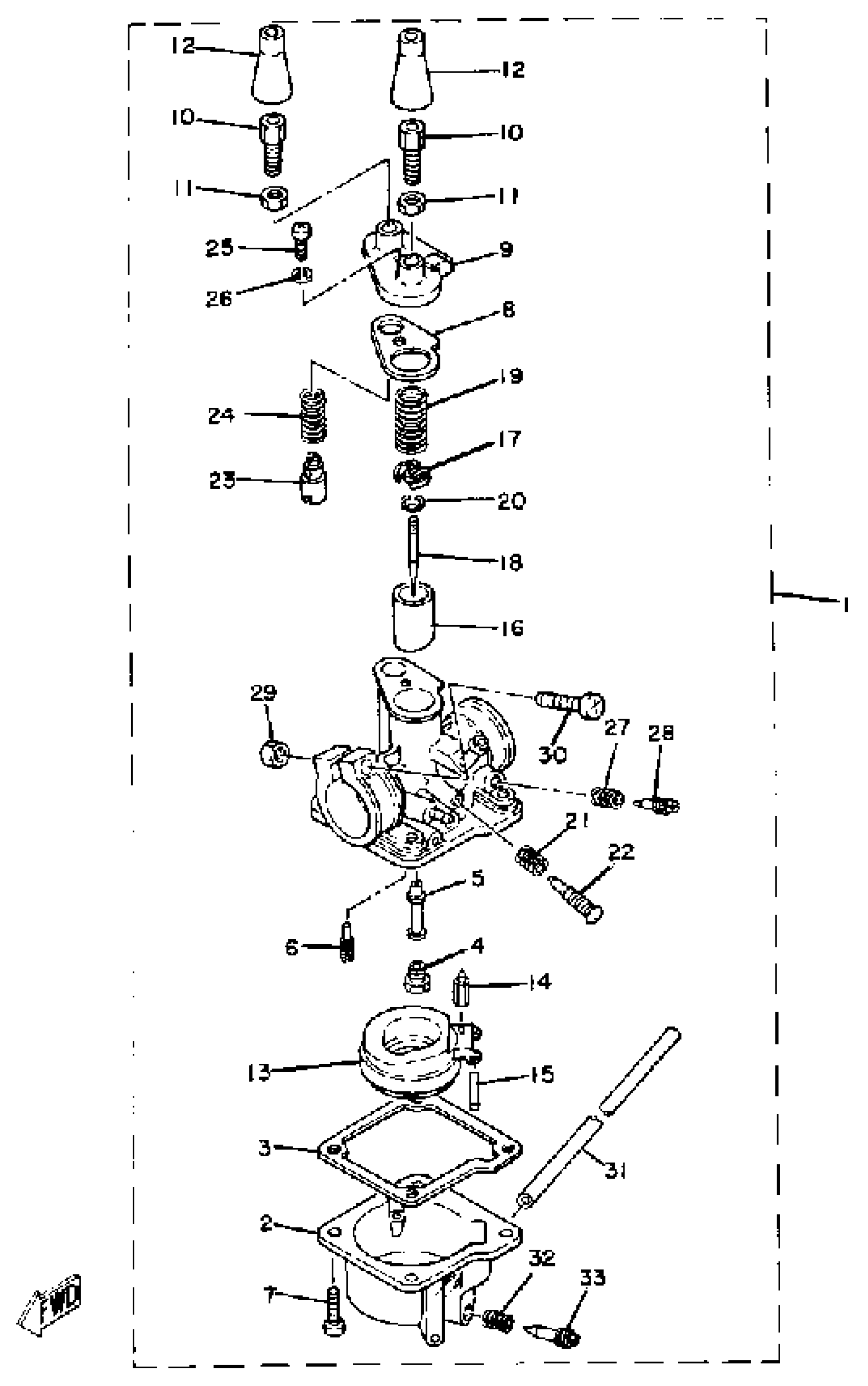

Yamaha MJ50J (MJ5O) 1982 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

4J2-14101-00-00

Unavailable

2

. BODY, FLOAT CHMBR 1CHAMBER 1

3L5-14181-06-00

Unavailable

3

GASKET, FLOAT CHAMBER

3L5-14184-00-00

$30.99

4

JET, MAIN (# 70)

620-14231-14-00

$9.99

4

JET, MAIN (# 70)

620-14231-14-00

$9.99

4

JET, MAIN (# 75)

620-14231-15-00

$10.99

5

NOZZLE, MAIN

(3L7-14141-16-00)

Unavailable

6

JET, PILOT (# 40)

3L5-14142-40-00

$9.99

7

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

8

GASKET, MIXING CHAMBER

3L5-14198-00-00

$8.99

9

TOP, MIXING CHAMBER

3L5-14158-00-00

Unavailable

10

CABLE ADJUST SCREW SET

12G-14106-00-00

$19.99

11

NUT, WIRE ADJUSTING

802-14161-00-00

$7.99

12

CAP

307-14169-10-00

Unavailable

13

FLOAT

3L6-14185-01-00

$67.99

14

NEEDLE VALVE ASSY

3L5-14190-01-00

Unavailable

15

PIN, FLOAT

603-14186-00-00

Unavailable

16

VALVE, THROTTLE (CA4.0)

3L5-14112-40-00

Unavailable

17

. SEAT, SPRING

3L6-14136-01-00

Unavailable

18

. UNAVAILABLE IN PRICE BOOK (3L6-14116-01)

36R-1290J-00-00

Unavailable

19

SPRING, THROTTLE VALVE

174-14131-01-00

Unavailable

20

CLIP

127-14137-00-00

Unavailable

21

. SPRING, THRTL STOP

3L6-14133-00-00

Unavailable

22

THROTTLE SCREW SET

36R-14103-00-00

Unavailable

23

PLUNGER, STARTER

58E-14171-00-00

Unavailable

24

SPRING, PLUNGER

509-14135-00-00

Unavailable

25

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

. SPRING, AIR ADJUSTING

3F7-14134-00-00

Unavailable

28

AIR SCREW SET

36R-14104-00-00

Unavailable

29

NUT, HEXAGON (663)

95380-05600-00

Unavailable

30

SCREW, PAN HEAD

98517-05030-00

Unavailable

31

HOSE (L200)

90445-05N13-00

Unavailable

32

. SPRING, AIR ADJUSTING

3F7-14134-00-00

Unavailable

33

AIR SCREW SET

36R-14104-00-00

Unavailable
